New · Global Flagship

Defining precision. Reconstructing excellence.

The Accurl X Series is the independently operated global flagship. A fiber-laser platform engineered to a German-grade standard, with performance and service beyond industry norms.

Explore the X Series → Watch it cut

X Series · Smart Factory Automated productionLights-out loading & cutting 60kW

Scroll

60 kW

Laser power, up to

3 G

Acceleration, up to

±0.05 mm

Cutting accuracy

42 m

Max working length, up to

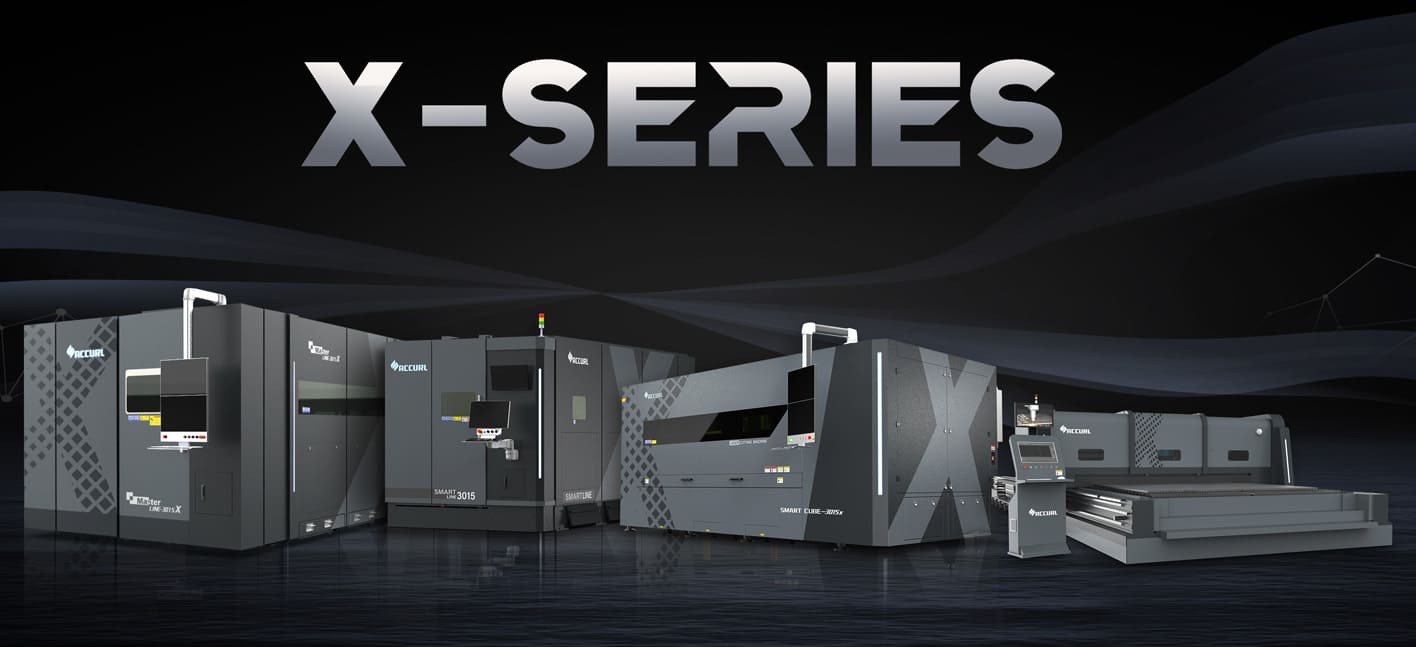

The Lineup

One standard.
Two disciplines.

Five fiber laser platforms and the Genius PLUS X press brake. From compact precision to large-format power, every X machine is engineered to a single standard of excellence. The figures below are the top configuration of each platform. Laser power and working area are configured to the customer's order.

01 / 06

2D cutting

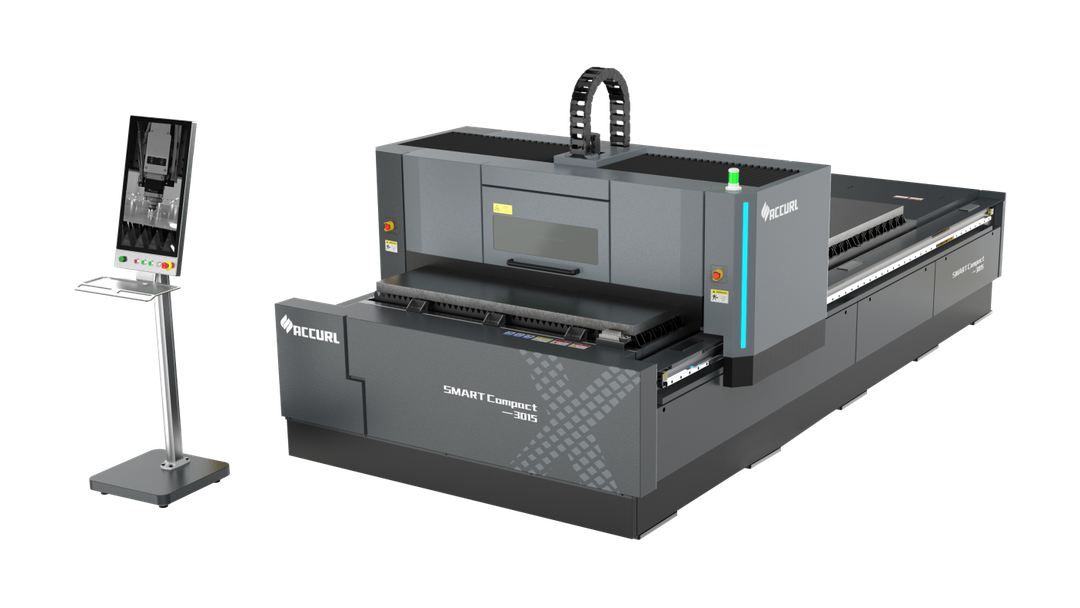

SMART Compact X

Compact 3015 footprint engineered for high-precision, high-speed cutting. 1 G acceleration, 110 m/min rapid traverse and ±0.02 mm repeatability.

From EUR 99,900

See the Genius PLUS X in full

3–12 kW

Laser power

3.1 × 1.6 m

Working area

1 G

Max. acceleration

110,000 mm/min

Max. traverse speed

Compact 3015 footprint

Configuration

Where each X sits

Pick by the work,
not the spec sheet.

Every cutting platform placed by the two questions that decide the purchase, sized by how hard it accelerates. Hover or click any machine.

bubble size = acceleration (0.7 to 3 G) sheet length on a log axis

The Cut

Where the X meets the metal.

Up to 60 kW of fiber-laser power, 3 G acceleration and ±0.05 mm accuracy. Production at the speed of light.

Bending

Genius PLUS X.

Co-engineered with MicroStep Europe. Not the previous generation improved, but a press brake laid out again from the frame up, and the first machine to carry the X into bending.

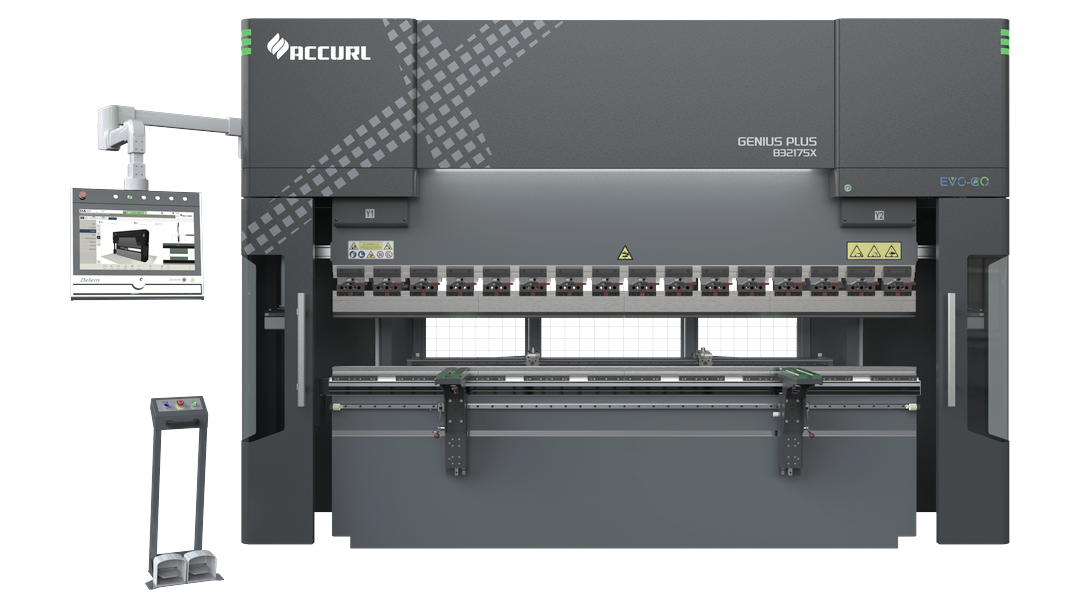

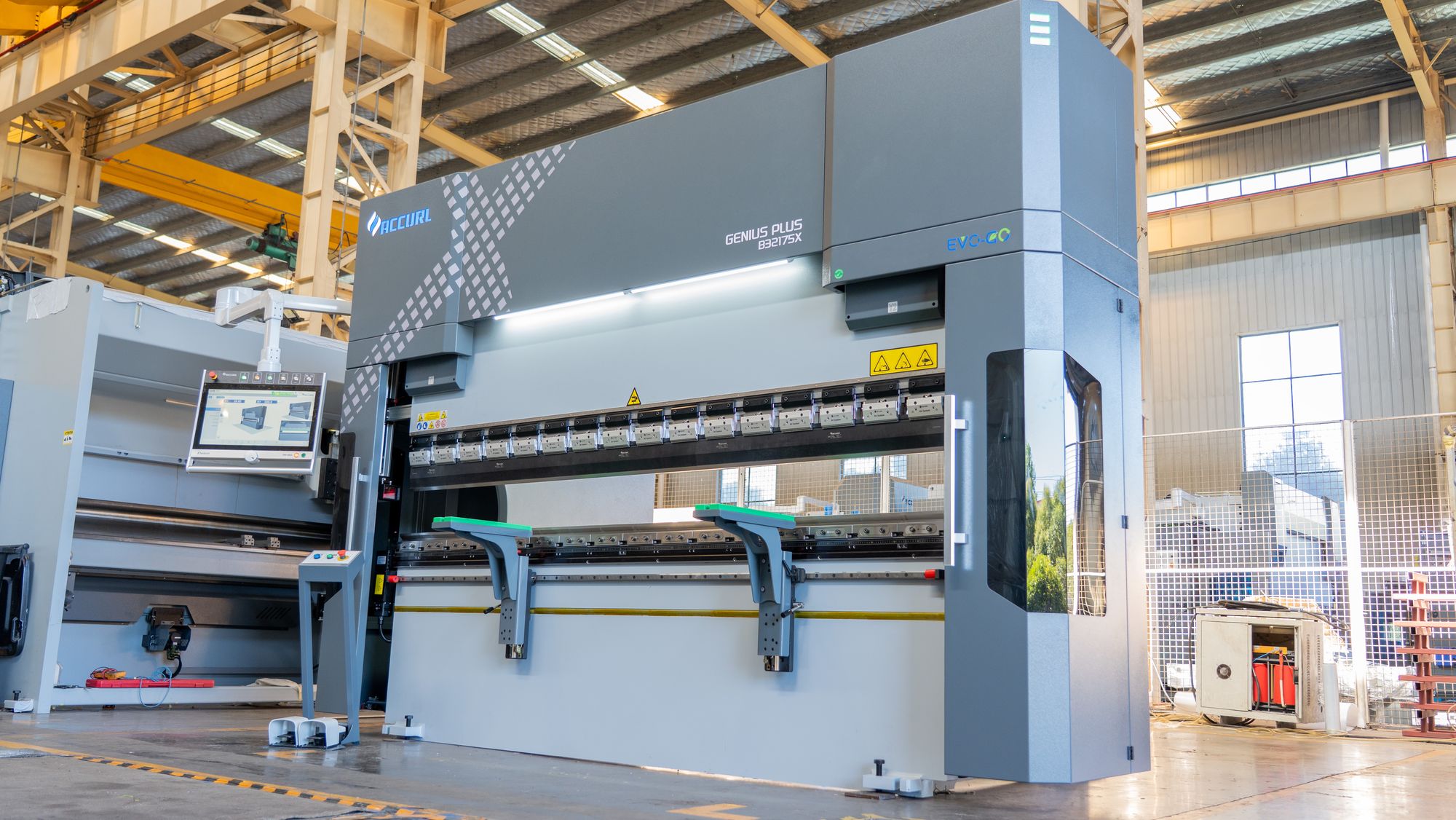

Accurl Genius PLUS B32175X press brake on the shop floor — Genius PLUS B32175X

The Delem control of a Genius PLUS B32175X mid-cycle — **Genius PLUS B32175X, running**Clamping, back gauge and the Delem control through one bend cycle, on the machine photographed above.

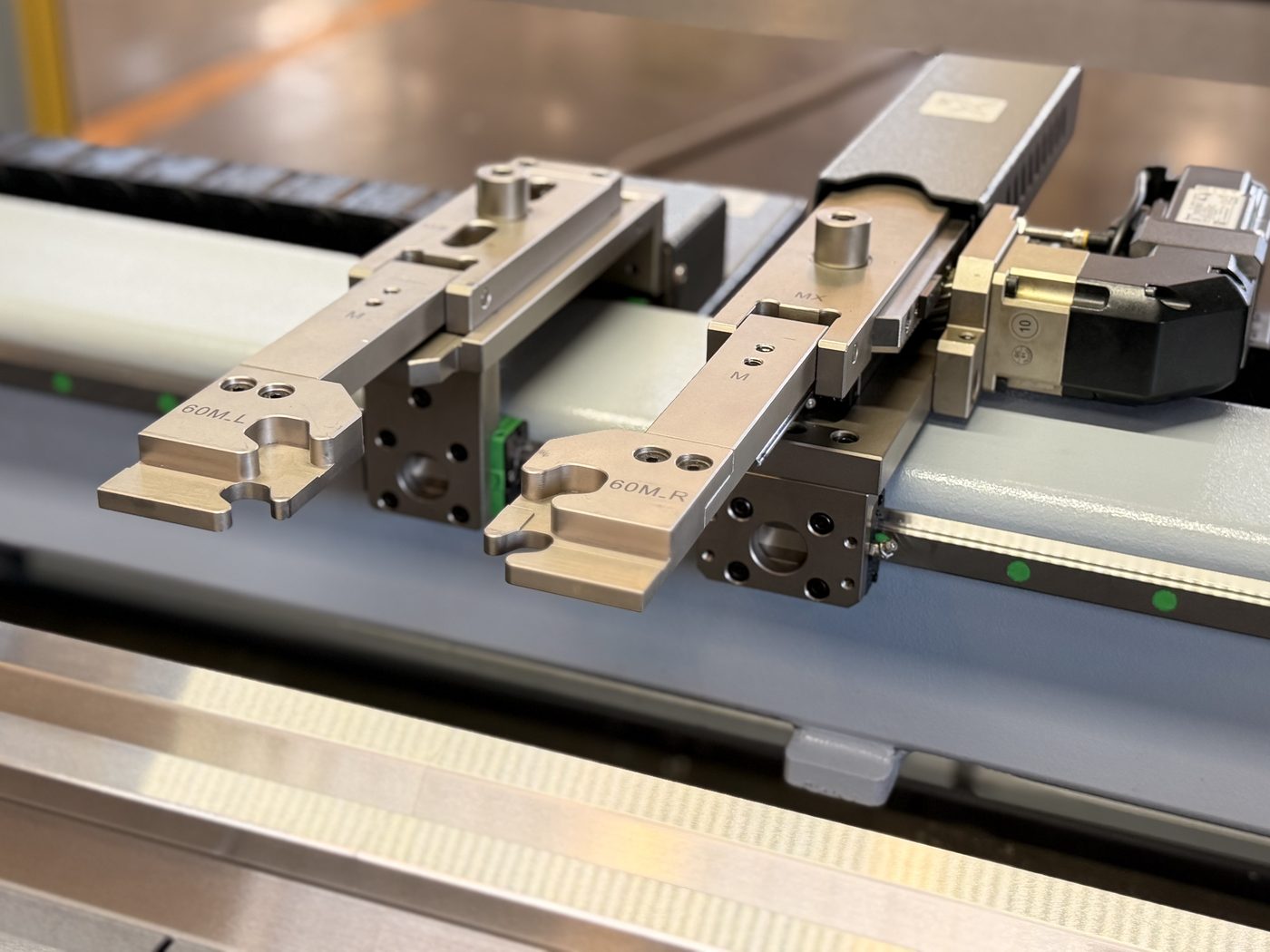

The BGA back gauge of a Genius PLUS B32175X, twin stops running on linear guides — BGA back gauge, 1,000 mm/s

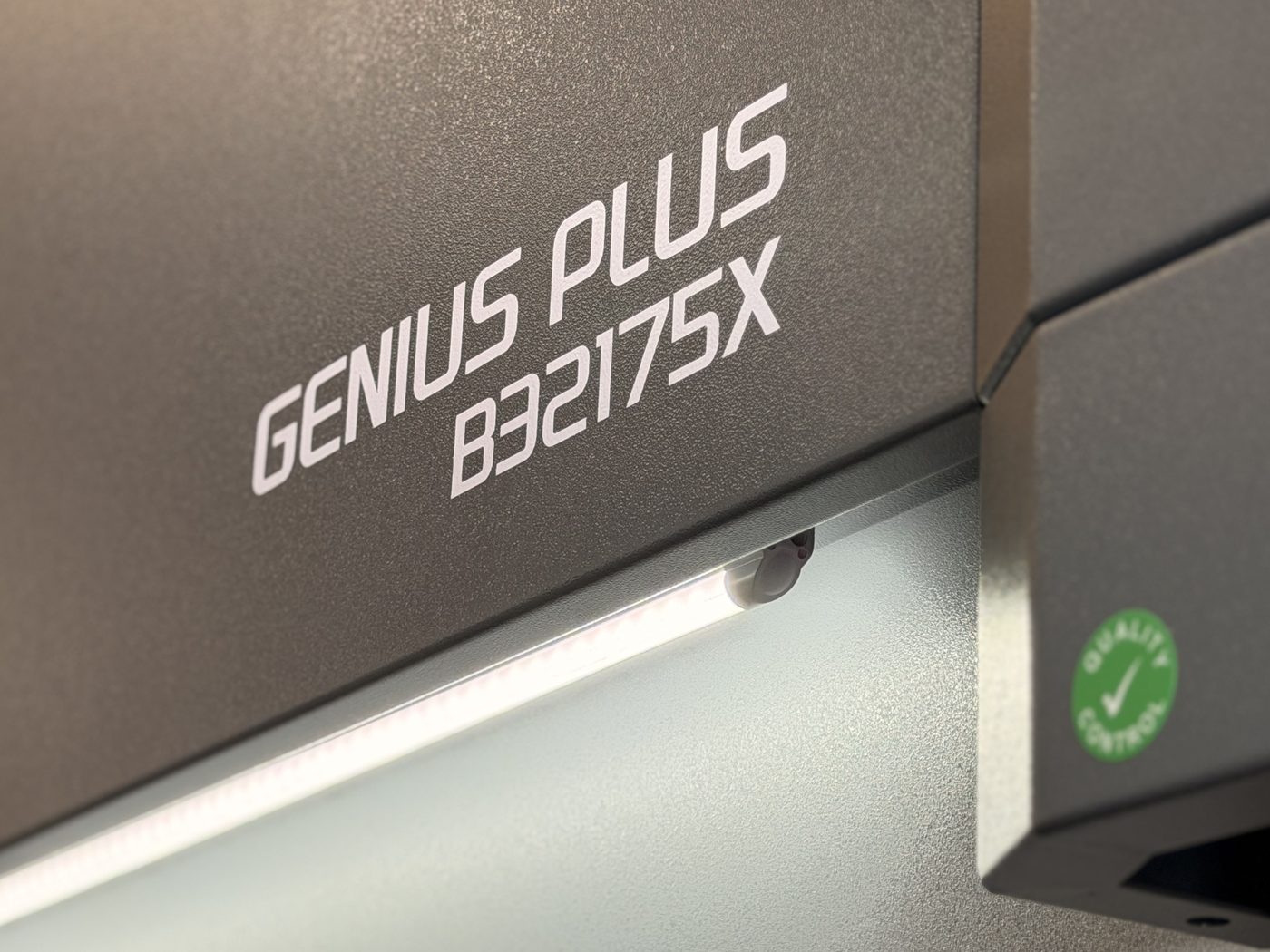

The Genius PLUS B32175X designation on the upper beam panel — Genius PLUS B32175X

The series in four numbers.

Press force from 60 up to 600 tons, which is 600 to 6,000 kN, on bending lengths from 2 up to 6 metres. The same control, the same clamping standard and the same GAM service at every size in the range.

Press force60600 tons

Bending length2,0006,000 mm

EVO-GO (Energy Efficiency)45 %

Axis configuration412 axes

Energy efficiency is measured against a conventional press brake.

Designed again, not carried forward.

The architecture was modelled in 3D CAD with stress and deformation analysed before a single part was cut. The result is 15% higher overall rigidity, which is where a lasting bend result starts.

BGA back gauge, up to six axes.

X and R are CNC controlled as standard and the back gauge itself extends to six axes. The X axis travels at 1,000 mm/s and the Z axis at 800 mm/s, positioning to 0.01 mm.

The same angle from end to end.

The EVO-GO electro-hydraulic system works with the CNC controlled ACCURL ULTRA crowning system, so the bend angle holds across the full length of the beam rather than drifting toward the centre.

Front supports that carry the sheet with you.

An intelligent front support system with adaptive assistance takes the weight of the blank, which is what turns a large part from a two-person job into a one-person job.

ACCURL clamping, fitted as standard.

ACCURL quality tool clamps of the PROMECAM type, pneumatically operated by the Air System, come with the machine rather than as an upgrade.

Electro-hydraulic drive, and a visible guard.

The press drive combines the strengths of both drive technologies, from 11.3 to 44.8 kW. The LazerSafe laser barrier keeps the guard where the operator can see it.

Also available: a tool store integrated into the side panel, remote diagnostics, and tandem or tridem configurations for long work.

Control

Delem DA-66S or DA-69S control, as standard.

2D programming on the DA-66S, 2D and 3D on the DA-69S. Either one calculates the bending sequence and detects collisions on its own. A full setup covers several tool stations at once and answers the only question that matters at the screen: can this part be made, and in what order. Control systems from ESA or Cybelec are available as alternatives.

Automatic bend sequence and collision detection
Several tool stations in one setup, with immediate feedback on feasibility
Direct navigation between programming and production

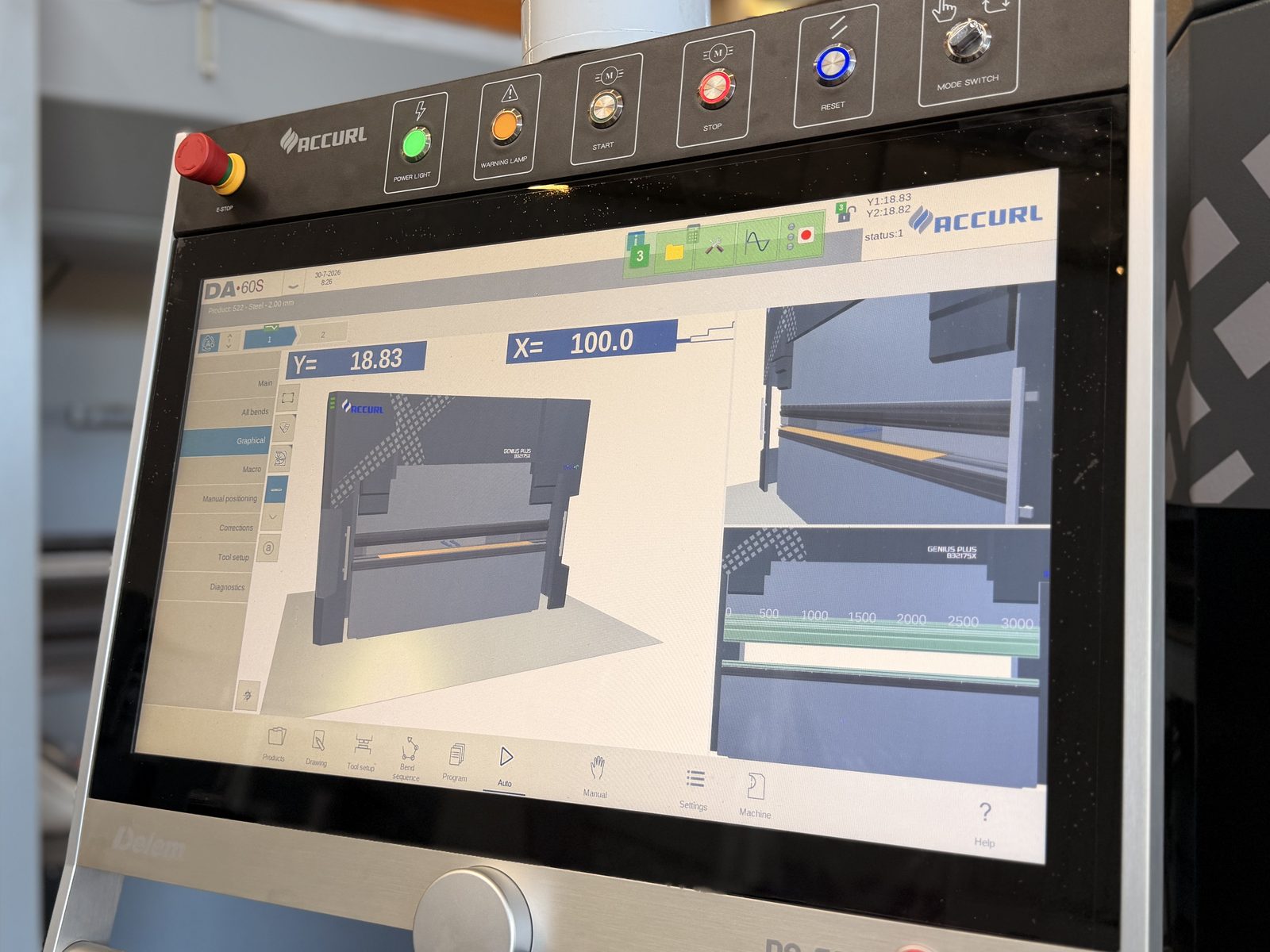

The Delem DA-66S control of a Genius PLUS B32175X showing a bend program in graphical view

Delem DA-66S on the B32175X

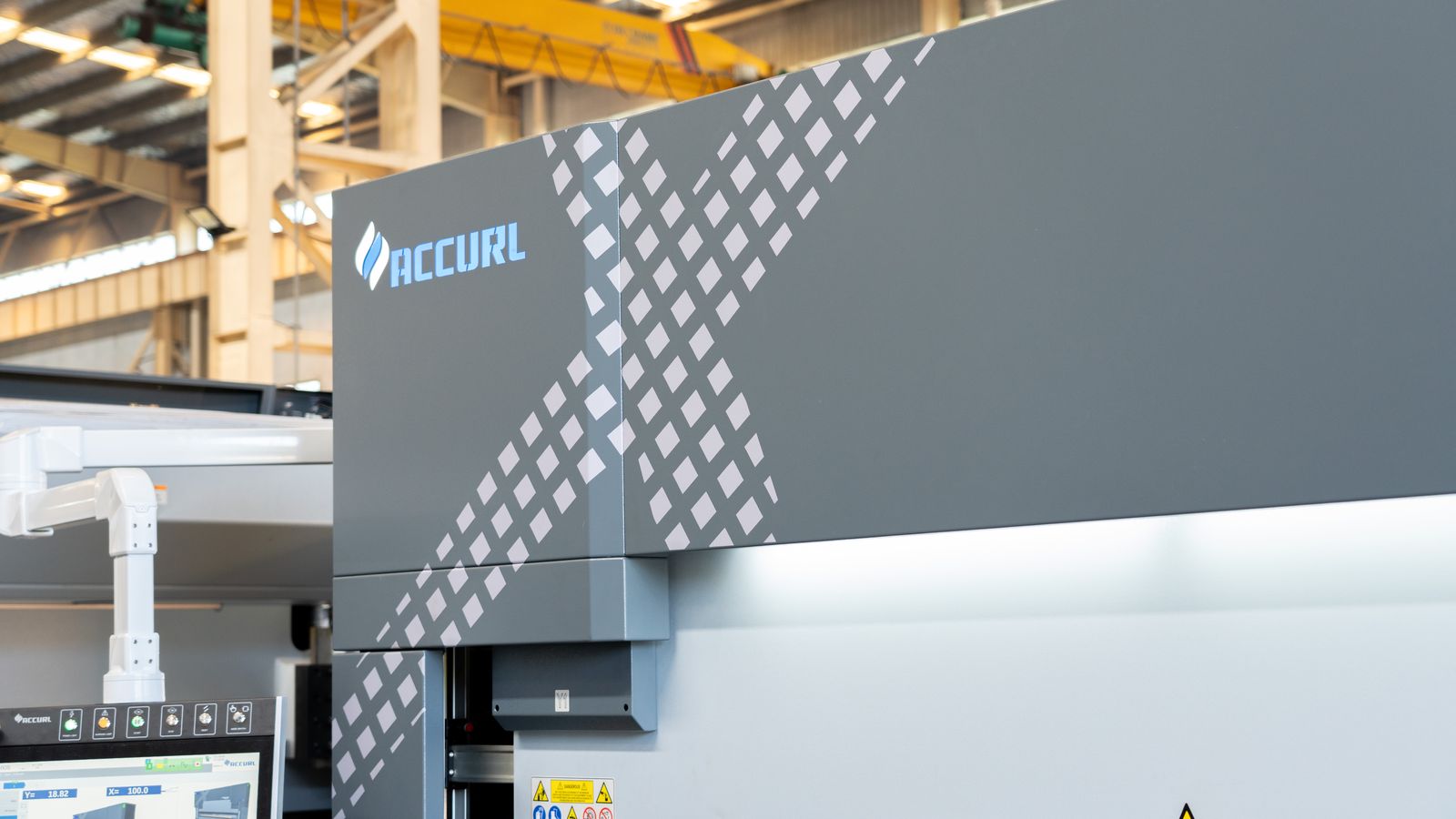

The X mark cut into the upper panel of the Genius PLUS X

The mark, cut into the machine

Every X machine is built to one standard of excellence, whether it cuts the sheet or folds it.

Engineered to Xceed

Technical data, across the series.

Press force600 to 6,000 kN

Bending length2,000 to 6,000 mm

Length3,100 to 7,100 mm

Width, depth1,800 to 2,550 mm

Height2,870 to 3,780 mm

Standard stroke300 to 400 mm

Daylight560 to 680 mm

Table width90 to 150 mm

Approach speed120 to 200 mm/s

Working speed0 to 10 mm/s

Return speed100 to 200 mm/s

Motor power, servo11.3 to 44.8 kW

X axis travel500 to 1,000 mm

X axis speed1,000 mm/s

R axis travel100 to 250 mm

Z axis speed800 mm/s

Weight5,700 to 35,500 kg

Intelligence

Native digitalization.
Real AI.

Co-engineered with MicroStep Europe, the X Series is the first laser platform built on native digitalization and AI: IndustryFusion-ready connectivity paired with the integrated XANA AI Engine.

AI Engine

XANA AI

Artificial intelligence built into the machine. It assists operators during setup and operation, gives contextual recommendations, speeds up fault analysis and enables predictive maintenance.

AI assistant for operation and setup
Contextual recommendations
Faster fault analysis and troubleshooting
Predictive maintenance strategies

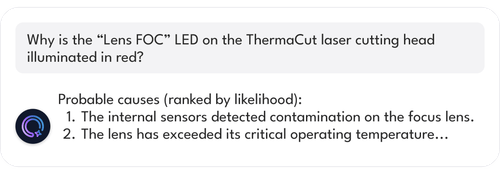

XANA AI assistant diagnosing a laser cutting head fault

XANA AI · live assistance

Connectivity

IndustryFusion Ready

Drop the X Series straight into a networked Smart Factory. It streams real-time data from cutting parameters to machine status, for unprecedented transparency across the floor.

Energy consumption and utilization
Capacity and process stability
Live machine status
Performance parameters in real time

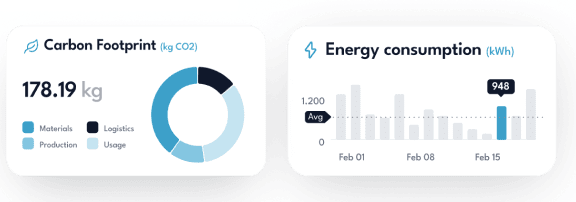

Real-time transparency

What comes to mind when you see the letter X?

Brand Philosophy

What the X stands for.

In high-end manufacturing it stands for excellence, extremity and what comes next. Accurl X is the independently operated global flagship. A deliberate move from product-driven to brand-driven excellence, with its own identity, technology DNA and service system. Built different. Engineered to Xceed.

Xcellence

Strict control over every manufacturing detail, upholding the highest global standards on a German-grade foundation.

Xtreme

Pushing physical performance limits with superior speed, power and stability under high-load operation.

Xplore

Deeply integrating Industry 4.0 to lead the shift from automation toward intelligent, autonomous manufacturing.

Xceed

Continuously exceeding industry norms and customer expectations, delivering a benchmark processing experience.

Craftsmanship

Precision you can hold.

From a single sheet to a finished part, the X Series turns raw steel into work that speaks for itself, backed by people who stand behind every machine.

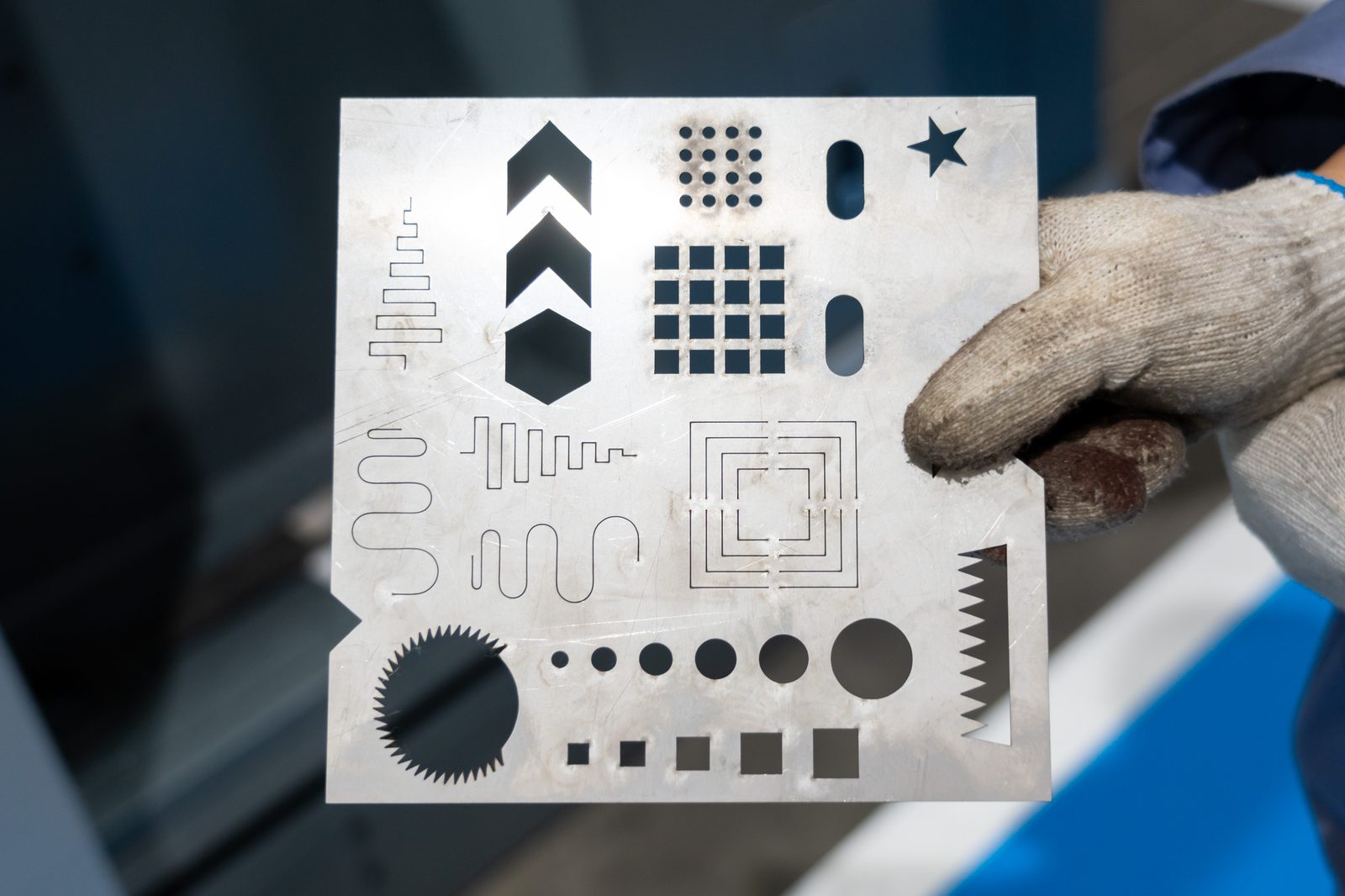

A gloved hand holding a laser-cut sample plate carrying gears, chevrons, slots and a graduated hole pattern — Cut on the SmartLINE X

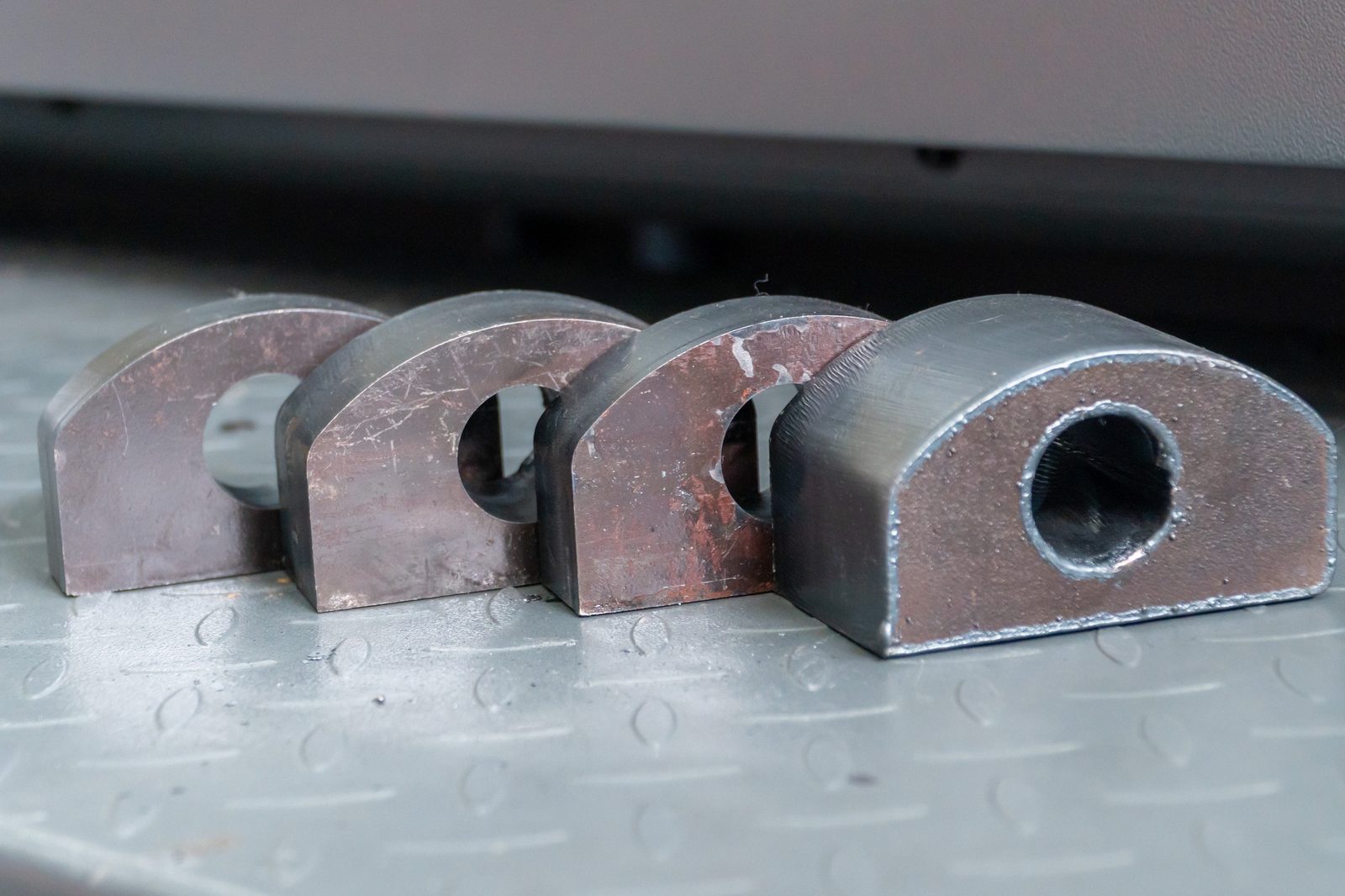

Four heavy steel sections with laser-cut radii and bores, set out on a workshop floor — Cut on the SMART Giant X

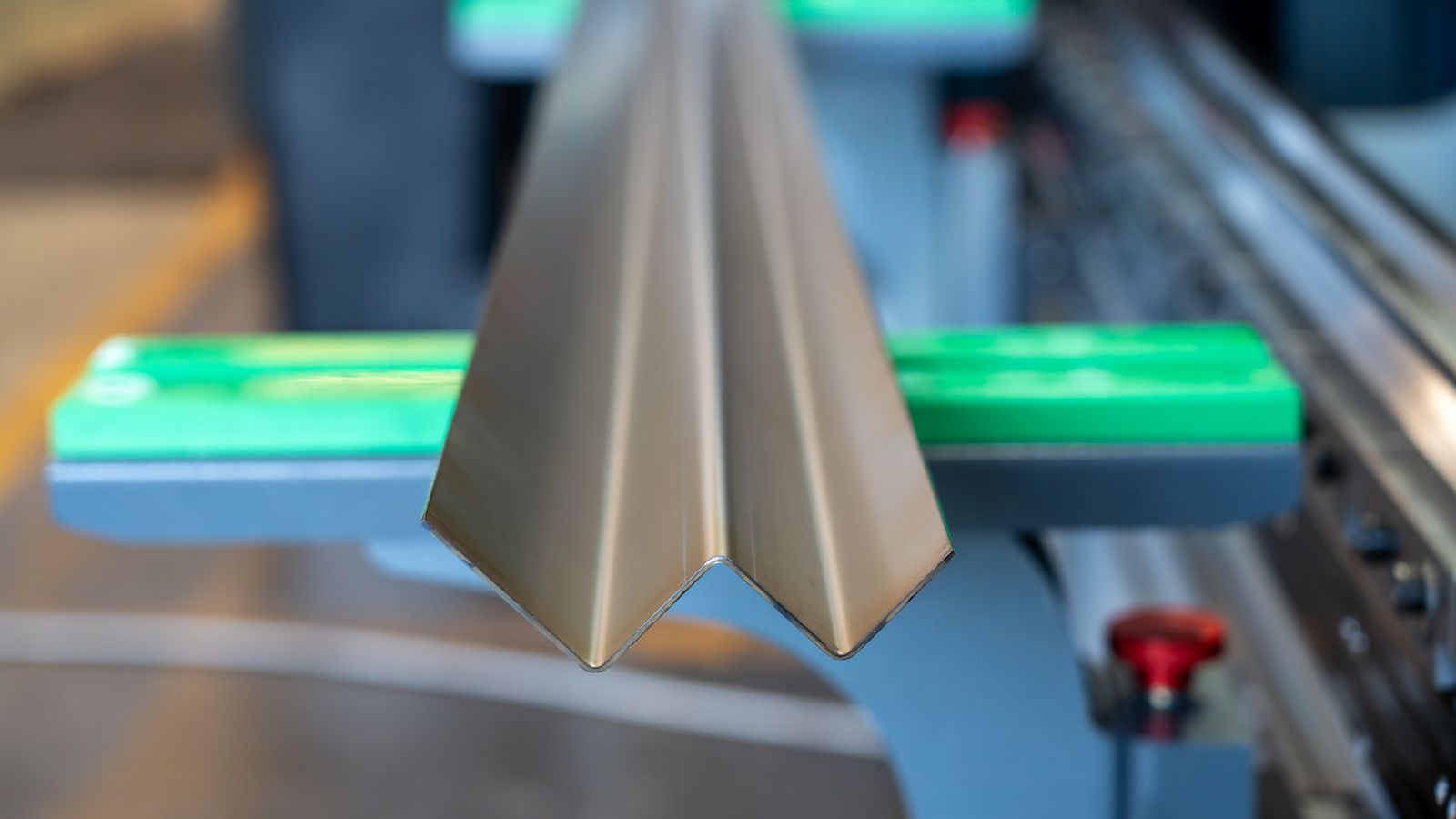

Bent on the Genius PLUS X

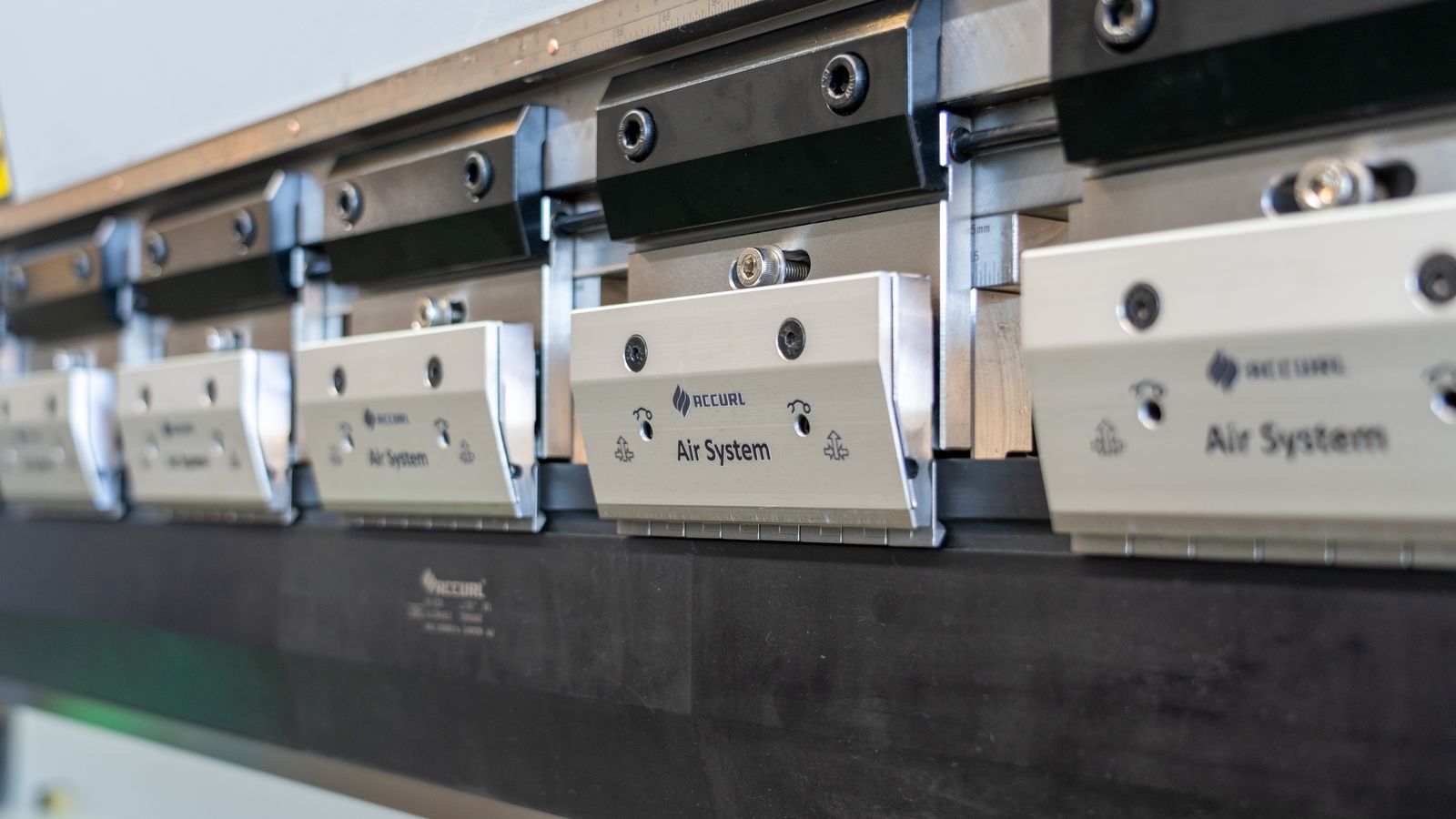

ACCURL Air System tool clamping fitted along the beam of a Genius PLUS X — ACCURL Air System clamping

GAM Service System

Global Account Management.

With the global launch of the X Series, Accurl established the GAM department: a dedicated high-end service system built on one principle, global coordination with local response. A standardized global agreement ensures every X machine receives the same caliber of professional support, anywhere in the world.

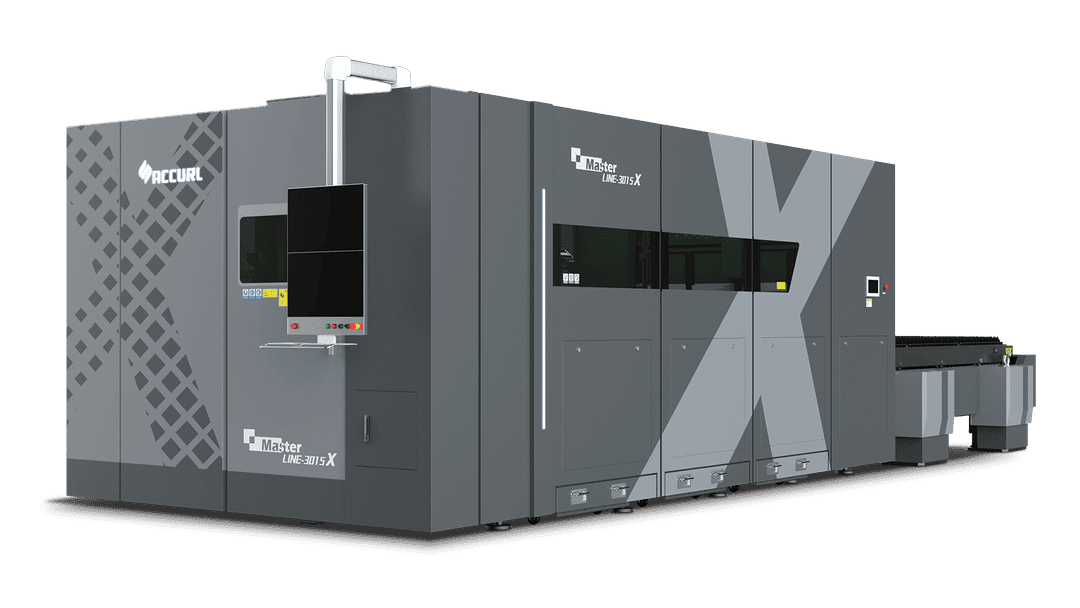

Accurl MasterLINE X

Accurl GAM service film — **GAM, in one minute**The service system behind every X machine, filmed at the Accurl New Smart Factory.

Pre-sales

Solutions & Consulting

Service record

One-stop response, in practice.

Step 03 above is the commitment. Below is a record of it being kept, on a customer's floor.

An Accurl service engineer with the customer's operators at the machine after the repair

On site, United States

01United StatesFiber laser cutting machine

A cutting machine had been down for close to a month. Accurl engineer Cheng went out to the site, traced the fault to a laser cable that had not seated correctly inside the cutting unit, and had the machine running again within two hours. Stress testing followed, and it has run without interruption since.

He quickly found the customer issue, noticed the laser light cable was not properly locked within the cutting unit. Only two hours of onsite troubleshooting and he had a solution. The customer is impressed.
Engineer, Accurl US distributor

2hoursto diagnosis and fix

1engineeron site, one visit

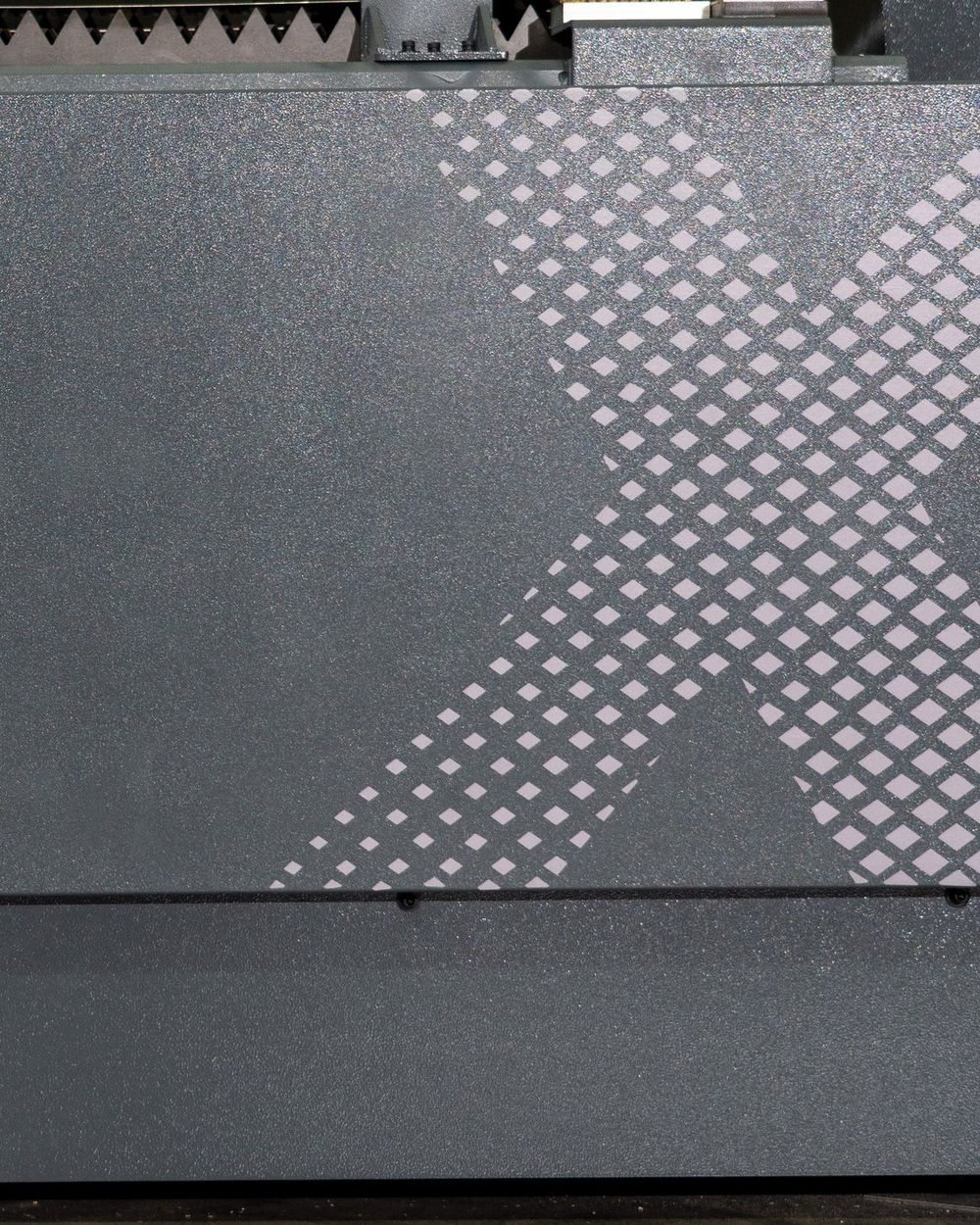

The X cut into the front panel of a SMART Compact X — Every machine wears it

Behind every machine

Service starts with an identity.

A service system is only as good as its records. Every X machine is built, numbered and archived so that support still has something to work from years later, wherever the machine is standing.

01
A serial number and a QR code on every machine

Each X machine carries its own serial number and QR code, so authenticity is verified rather than assumed.
02
The full history, on request at any point

Behind that number sits the complete record for that specific machine, backup data included, retrievable at any time in its life.
03
Built in one place, under controlled conditions

All X Series production runs at the Accurl New Smart Factory, in temperature-controlled workshops. Precision machining and assembly do not tolerate a moving reference.

AuthenticitySample data

Check a machine against the record.

Scan the code on the machine, or type its serial number. The record comes back with the machine: what it is, when and where it was built, how it is configured, and who is authorised to service it. A number that is not in the record returns nothing, and that is the part that matters.

QR code that opens this check — Every X machine carries its own code and number.

X From first inquiry to lifetime support, one continuous closed-loop relationship.

Proof

Trusted by metal fabricators across Europe.

and more across Europe

The network

The people who put the X on the floor.

Filmed at the Accurl New Smart Factory during the X Series launch. Four markets, four people who sell and support these machines where the customer is.

Johannes, Accurl Europe and MicroStep Europe — Johannes *· Germany*Accurl Europe and MicroStep Europe. On why the X had to stand as its own brand in Europe, and on where the two engineering teams actually meet.

Matt *· United States*Owner and CEO, Accurl North America. On lights-out cells for precision sheet metal, and on the heavy plate end of the range.

Maik Wensink, Tuwi — Maik Wensink *· Netherlands*Commercial Director, Tuwi. On the change in the frame, and on what the live cutting looked like from the buyer's side.

Enzo, Complete Machine Tools — Enzo *· Australia*Owner, Complete Machine Tools, selling Accurl for eight to nine years. On covering a market where one line has to answer to the small shop and the large fabricator alike.

Version 1.2

Accurl X Series

Strategic
White Paper

Defining precision, reconstructing excellence.

Accurl Precision Machinery
GAM Department

White Paper

The thinking behind the X.

Accurl set out its position in full: why the X Series was built as a separate brand rather than a better model, what original engineering means when most machines share the same parts, and what Accurl commits to for the life of the machine.

01The case for an independent high-end brand, and for original engineering
02Xcellence, Xtreme, Xplore, Xceed, and what each one commits to
03The full platform architecture, fiber lasers and press brakes
04GAM, the lifetime service model behind every X machine

Get the white paper → PDF, sent straight to your inbox.

Cameron Lee, Chief Executive Officer of Accurl — **Cameron Lee**Chief Executive Officer, Accurl

Engineered to Xceed your next project.

Talk to the Accurl X team about the right platform and a GAM service plan for your facility.

Request a quote → Explore the lineup
