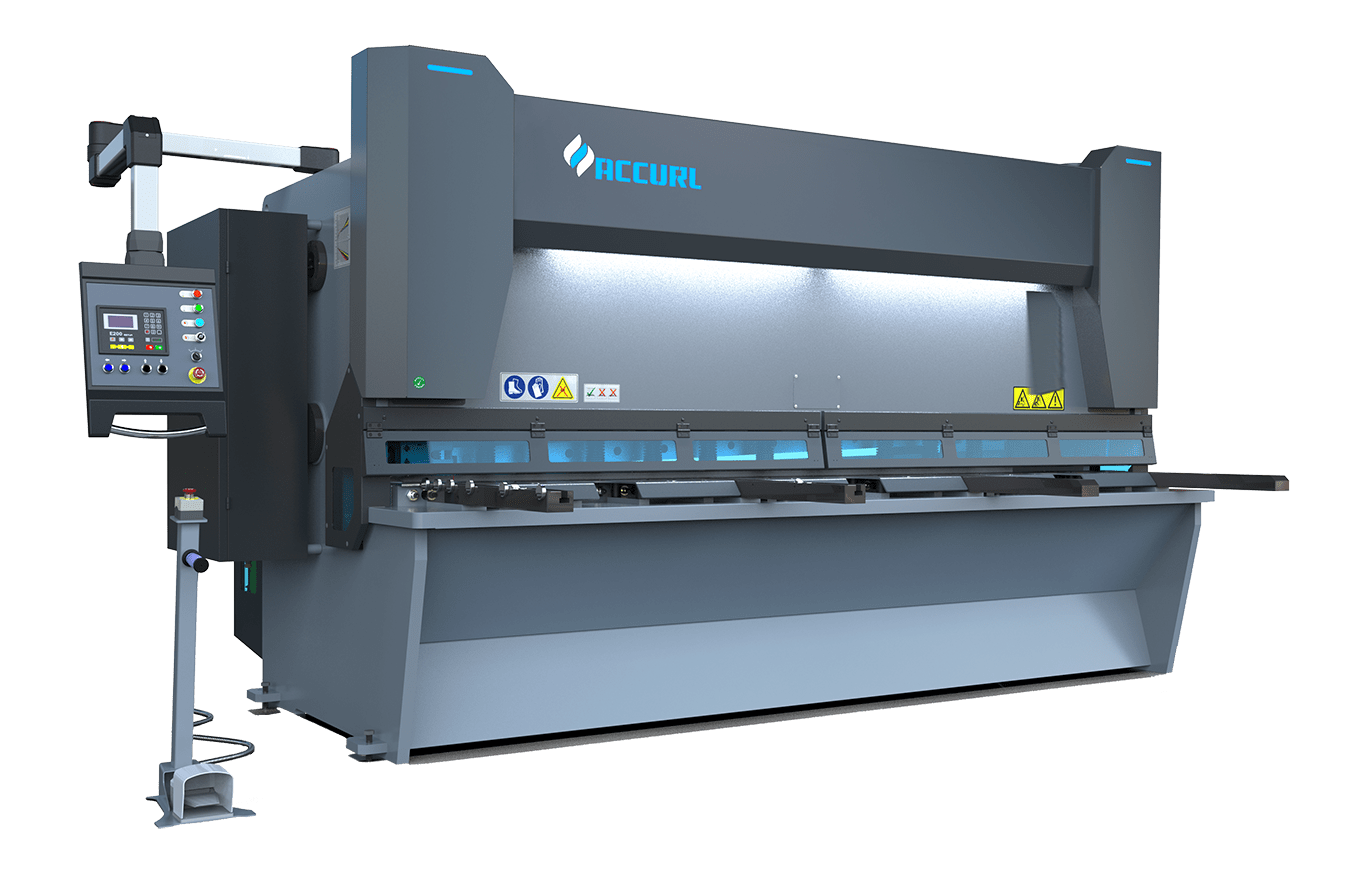

CNC Guillotine Shears Master MS Series
ACCURL
Precision and high quality cuts with automatic gap adjustment
CNC Guillotine Shears Master MS Series
Includes Following Features And Configuration
Flexible
Reliable
Profitabie
User Friendly
Standard Equipment
- Delem DAC-360T Touch Screen control
- BOSCH REXROTH hydraulic system
- Ball screw back gauge 1000 mm
- Automatic back gauge
- Automatic and progressive rake angle adjustment
- Automatic adjustment of blades gap
- Automatic cutting length
- Retract function
- Machine controlled by a controller (PLC)
- ACCURL® Back gauge with Automation swing-flip up function

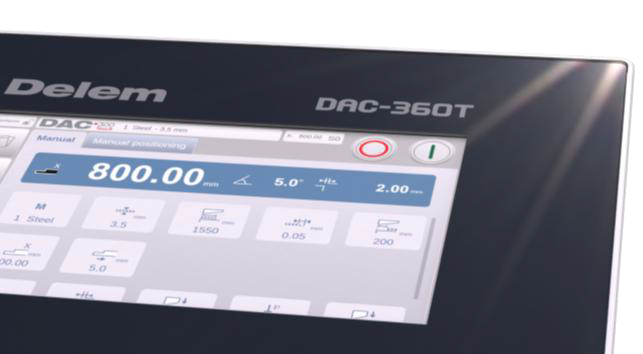

Delem DAC-360T CNC Control Unit
ACCURL® has chosen the very powerful new generation Delem DAC-360T control provides a user-friendly and versatile touch control solution for shears. Upon demand multiple back gauge axes, cutting angle, stroke length and gap can be controlled, based on state of the art electronics.
With its easy to use touch screen navigation on the bright LCD screen, operation is most user-friendly. The numerical programming with clear icons guides the operator through all programming functionalities.
DAC-360T featuring:
- 7" widescreen TFT Colour LCD display
- Back / front gauge control
- Panel based housing
- Retract function
- Cutting angle and gap control
- Stroke length limitation
- Manual movement of all axes
- Force control
- Return to Sender function
- Program memory for 100 programs
- Sheet support system
- Sheet thickness measurement system
CNC Back Gauge System
One of the most important factor for cutting capacity is the design of back gauge and stability. Quality cutting is possible with perfect product,stabilty and precision back gauge.
The high speed ballscrew back gauge system movement is also supported with linear guides, which helps the back gauge achieve long life, greater sensitivity and strengthens against any collisions.
Advantage:
- Fast and high accuracy
- Reliable movement
- Adjustment at any point
- Resistance to crash
- Maintenance free
- Better and fast cutting
- Easy and secure usage
- High precision and repeatability
Pneumatic Sheet Support System
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts
Anti-Twist system prevents cutting sheet material from twisting in narrow and strip cuttings by holding straight during the cutting process against to blade movements.
The Anti-Twist system of Accurl CNC guillotine shears version distributes the force more evenly. It serves to reduce the possibility of damage to the surface of thin metal sheets, or in case of delicate finishes such as polished stainless steel or pre-painted plates.
