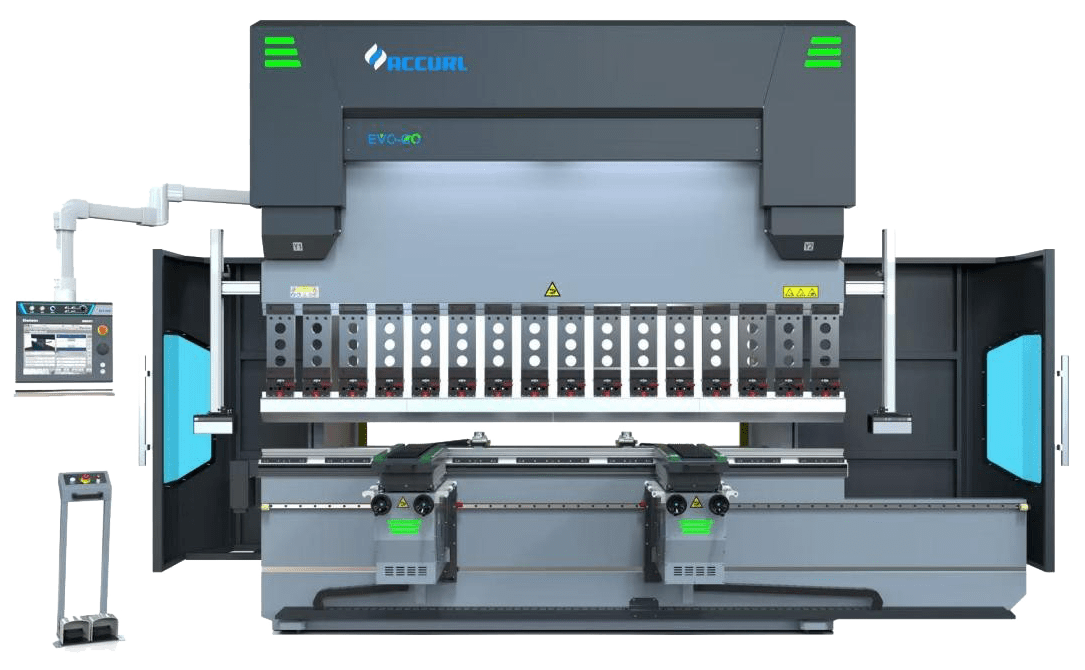

Super Custom Press Brake GENIUS CNC
ACCURL
ACCURL Top Customization Press Brake!
To meet all customer requirements, ACCURL® is a fully configurable machine with extended stroke and large daylight to make Deep-Box Bending to make electric appliance Manufacturing easier!
The ACCURL custom Genius Hybrid Servo CNC Press Brake with extended stroke & open height Solution to bending boxes up to 800mm deep and more with no special tooling and with the utmost accuracy to make easy use of deep box bending.
ACCURL Top Customization Press Brake!
Includes Following Features And Configuration
Less Waste, Less Maintenance
High Performances
Same Job, 50% Less Energy
<High Dynamic Y-axis Control
<Over 30% higher productivity
Standard Equipment
- CNC DELEM DA66T with 2D color graphics
- ACCURL® BGA-4 for X=600mm X,R,Z1,Z2-Axis
- ACCURL® BGA-4 for X=600mm X,R,Z1,Z2-Axis
- Tool kit: 4 V die (V=16-22-35-50) series of 835mm punches
- 1300-mm daylight and 90o-mm tool adapters
- 400-mm stroke
- Custom daylights and strokes
- ACCURL Pro CNC wave crowning system
- Lazersafe Systems LZS-2 Block Laser
- Hoerbiger (HAWEI) hydraulic system
- DELEM® Profile T2D Offline Software
FEA & Stress Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.
Over 35 Years Of Experience In Top Level Controls
Successfully controlling precision & productivity, modern sheet metal production is inconceivable without high performance software. Highly effective control algorithms optimize the machine cycle, reduce the time required for set-up and ensures consistently high quality.
ACCURL is one of the world’s leading manufacturers in the field of steel metal working machinery for our Laser Cutting Systems & Press brakes.
DELEM DA66T Touch 2D Graphical Control
- 17" high resolution colour TFT
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- Profile-T2D offline software
- Sensor bending & correction interface
Press Brake 5-Axis CNC BackGauge with X, R, Z1, Z2, Delta X2-Axis
- Ball screws and linear guide on X, R-axis
- Precision belts and YYC rack on axes Z1‐Z2.
- Fingers with double stop and micrometric adjustment.
- Mechanical accuracy ± 0.03 mm.
- Axes Z1‐Z2 speed 1000 mm/s.
- Axis X speed 500 mm/s.
- Axis Delta X speed 500 mm/s.
Safety Arrangements
Lazer Safe - Performance Without Compromise
Optical Safety System - Advanced
ACCURL® CNC press brake use OEM EMBEDDED LAZERSAFE offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe’s PCSS A Service, the Lazersafe is category 4 compliant and meets the world’s most demanding international safety standards(CE Certified Category 4 Safety Controller with integrated).
Optional:
- Lazersafe-PCSS A0 LZS-XL
- Lazersafe-PCSS IRIS
ACCURL PPO® family CNC Crowning:
The ACCURL Pro® Adaptive CNC Crowning system enables theuser to offset deformations of the beam while bending. thus, the angle iskeeping constant along the entire plate length.
Advantage:
- Easy reversibility of tools because of symmetrical adaption
- Hand crank with digital readout or CNC electric drive connected direct to the machine
- Hardened to 28–32 HRC which makes it substantially tougher than the competition
- Micro crowning every 200mm
- T & Y adjustable 0–0.76mm (0–0.030")
Manual Upper Tool Clamping:
ACCURL CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed.are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Advantage:
- Safe and fast tool change
- Can be used without modifying Europe type punches
- Front clamp - vertical tool change
- Rear clamp - horizontal tool change
ACCURL New Hybrid Servo ECO Function.
ACCURL® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.
Advantage:
- High dynamic for a higher productivity of the machine.
- Compliance with EU Directives.
- Lower energy for a green Machine.
- Lowered sound pressure level at 50 dB.
- The servo-motor, with closed loop speed control.
- Energy efficiency of up to 35 % compared to conventional systems.
- Operating cost is min due to low energy consumption. thus, it gives advantages to the user with high efficiency & low operation cost.
Indispensable Tool To Increase Profitability
Profile T3D Offline Programming:
Industry 4.0 With IOT Productivity Monitor™
Thanks to the advanced ACCURL® CNC and interconnecting ad-hoc software tools like the “Smart Factory” make it possible for companies to enter industry 4.0 that is revolutionizing the reality of companies. you can extract data and share information at company level: bending programs, sensors, production statistics.
Messages In Time
- D = messages from the Delem application
- M = messages from a DM-module
- P = messages that are generated by a safely PLC
- S = message generated by the sequencer
