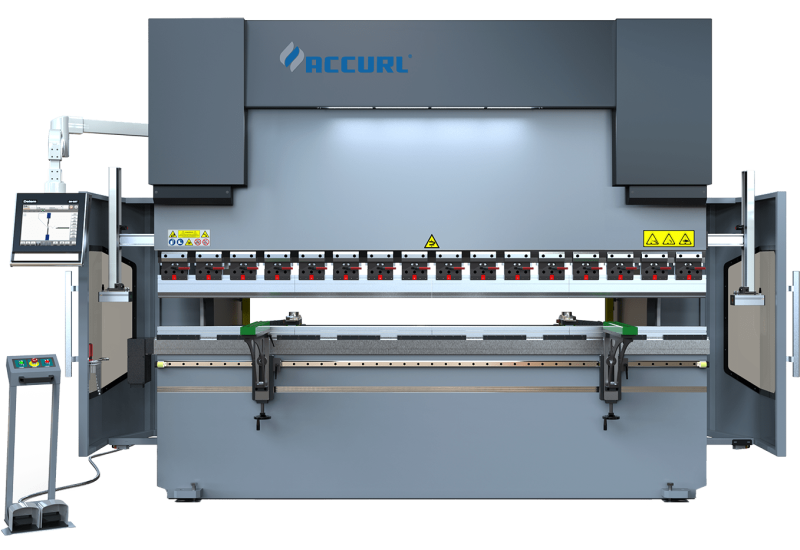

CNC Press Brake EURO PRO 4 ~ 6-Axis
ACCURL
ACCURL Euro Pro Series 4 ~ 6-axis
CNC Press Brake Machine For The More Demanding Taste
ACCURL® New EURO PRO Series CNC press brake with a high-quality build with 2.5-6 meters bending length and 50-400 tons bending force has floor bending solution, an impressive number of features and options, competitive pricing and advanced DELEM DA66T or Cybelec CybTouch 15PS 2D capable graphical controls, this is your first choice in Y1/Y2 machine technology.
With ACCURL press brakes you can tackle even the biggest structures, With the highest speed and versatility. It is possible to customize all Accurl press brakes in tandem bending.
ACCURL Euro Pro Series 4 ~ 6-axis
Includes Following Features And Configuration
Less Waste, Less Maintenance
High Performances
Same Job, 50% Less Energy
High Dynamic Y-axis Control
Over 30% higher productivity
Standard Equipment
- CNC DELEM DA66T with 2D color graphics
- ACCURL® BGA-2 for X=500mm X, R-Axis, Z1/Z2-Axis as Optional
- ACCURL® Hybrid Servo ECO Function
- Tool kit: 4 V die (V=16-22-35-50) series of 835mm punches
- ACCURL Pro CNC wave crowning system
- GIVI optical scales
- Lazersafe Systems LZS-2 Block Laser
- Hoerbiger (HAWEI) hydraulic system
- High efficiency motor – class IE3
- DELEM® Profile TL Offline Software
- Electrical cabinet with Schneider, Siemens components
FEA & Stress Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.
Over 35 Years Of Experience In Top Level Controls
Successfully controlling precision & productivity, modern sheet metal production is inconceivable without high performance software. Highly effective control algorithms optimize the machine cycle, reduce the time required for set-up and ensures consistently high quality.
ACCURL is one of the world’s leading manufacturers in the field of steel metal working machinery for our Laser Cutting Systems & Press brakes.
DELEM DA66T Touch 2D Graphical Control
- 17" high resolution colour TFT
- 2D graphical touch screen programming mode
- 3D visualisation in simulation and production
- Full Windows application suite
- Delem Modusys compatibility (module scalability and adaptivity)
- USB, peripheral interfacing
- Profile-T2D offline software
- Sensor bending & correction interface
Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis
- Ball screws and linear guide on X, R-axis.
- Precision belts and YYC rack on axes Z1‐Z2.
- Fingers with double stop and micrometric adjustment.
- Mechanical accuracy ± 0.03 mm.
- Axes Z1‐Z2 speed 1000 mm/s.
- Axis X speed 500 mm/s.
Lazer Safe - Performance Without Compromise
Optical Safety System - Advanced
ACCURL® CNC press brake use OEM EMBEDDED LAZERSAFE offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe’s PCSS A Service, the Lazersafe is category 4 compliant and meets the world’s most demanding international safety standards (CE Certified Category 4 Safety Controller with integrated).
Optional:
- Lazersafe-PCSS A0 LZS-XL
- Lazersafe-PCSS IRIS
ACCURL PPO® family CNC Crowning:
The ACCURL Pro® Adaptive CNC Crowning system enables theuser to offset deformations of the beam while bending. Thus, the angle iskeeping constant along the entire plate length.
Advantage:
- Easy reversibility of tools because of symmetrical adaption
- Hand crank with digital readout or CNC electric drive connected direct to the machine
- Hardened to 28–32 HRC which makes it substantially tougher than the competition
- Micro crowning every 200mm
- T & Y adjustable 0–0.76mm (0–0.030")
Wilson Pneumatic Clamping
This innovative fast clamping system can satisfy any needs, the Express Air clamping reduces press brake setup time and therefore it represents the best choice for users that frequently change punches on their press brakes for sale.
Advantage:
- Fast vertical tool change for all Europe type punches
- Safe and fast tool change
- Substantial improvement in time consumption and related costs
- Secure against tool falling down
- Available in manual, pneumatic and hydraulic models
- Easy to mount on your press brake
ACCURL New Hybrid Servo ECO Function.
ACCURL® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.
Advantage:
- High dynamic for a higher productivity of the machine.
- Compliance with EU Directives.
- Lower energy for a green Machine.
- Lowered sound pressure level at 50 dB.
- The servo-motor, with closed loop speed control.
- Energy efficiency of up to 35 % compared to conventional systems.
- Operating cost is min due to low energy consumption. Thus, it gives advantages to the user with high efficiency & low operation cost.
Indispensable Tool To Increase Profitability
Profile T3D Offline Programming:
The Bending offline software is an indispensable tool to increase the profitability of any CNC press brake machine. The offline software Profile T3D enables in a quick, easy and efficient way, importing and unfolding 3D files, finding automatically solutions for tooling and bend sequences and simulating dynamically in 3D for checking collisions.
Industry 4.0 With IOT Productivity Monitor™
Thanks to the advanced ACCURL® CNC and interconnecting ad-hoc software tools like the “Smart Factory” make it possible for companies to enter industry 4.0 that is revolutionizing the reality of companies. You can extract data and share information at company level: bending programs, sensors, production statistics.
Messages In Time
A bar graph displaying how many message were displayed over the time. Only the message that were active while the DA-Control was stared are indicated. The following categories of messages are indicted:
- D = messages from the Delem application
- M = messages from a DM-module
- P = messages that are generated by a safely PLC
- S = message generated by the sequencer
Products In Time
This block displays a bar graph indicating for each product the amount that has produced per day. When the mouse cursor is moved onto one of these bars, the product ID and the amount for that date is displayed.
