Performance based on robustness and, above all, reliability.

Laser tube cutting machines are our 2D and 3D laser cutting systems for tubes, pipes and profiles, from 12 mm to 610 mm (.5” to 24″) in diameter and up to 18 m (60′) in length.
ACCURL® Laser tube cutting is specifically designed for businesses that care about high quality profile & tube cutting.full automatic Loading & Unloading requires less effort and time save for the operator.and Can cut column Crossed Lines at the end of branch pipe,and meet centrifugal and non-centrifugal.

Open catalogue

Tube Laser Cutting Machine

Includes Following Features And Configuration

Flexible

Reliable

Profitabie

User Friendly

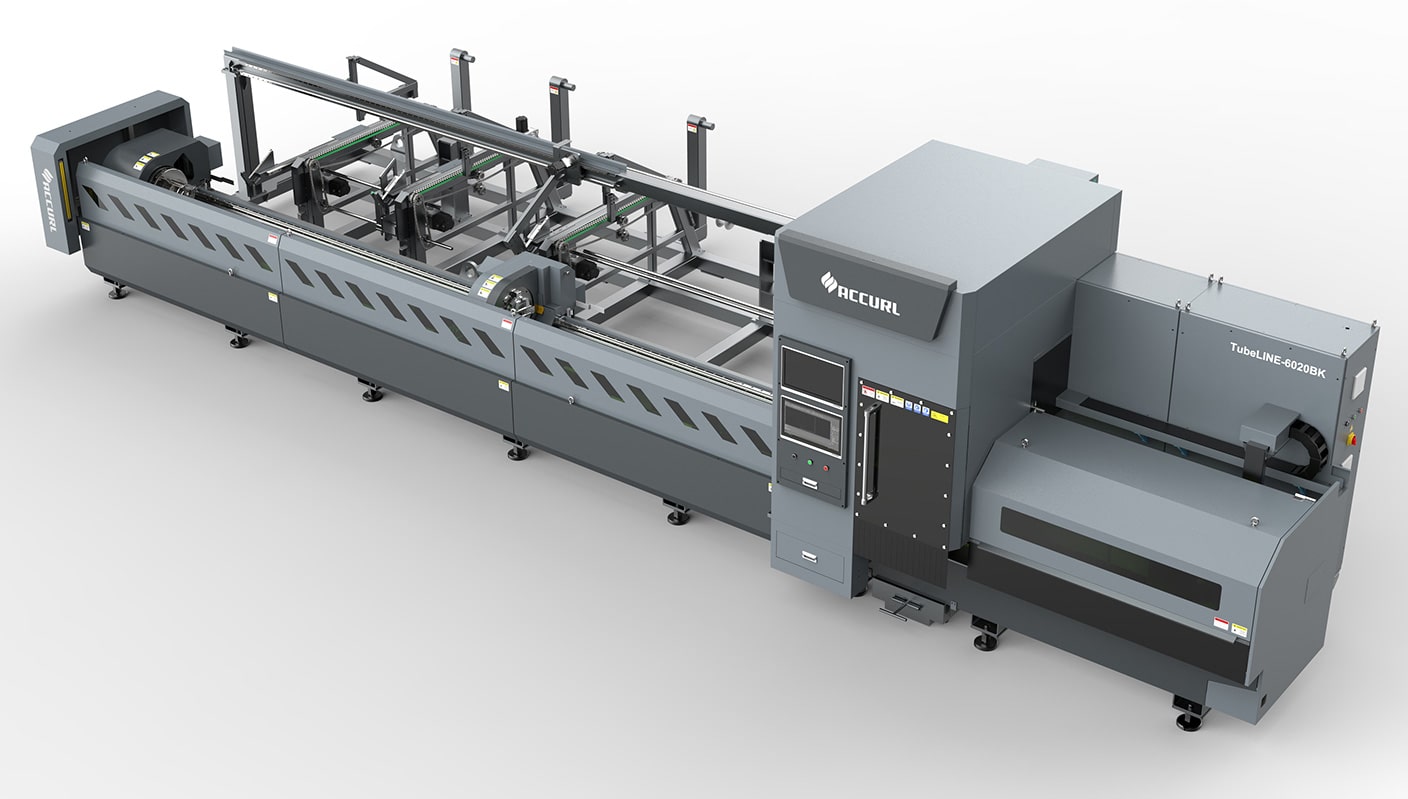

QL-FCT. 6020B With Robust, Safe, Essential

Includes Following Features And Configuration

REQUEST INFORMATION
  • FSCUT® CNC 22” SCREEN FSCUT5000 TwinCAT Control System
  • YASKAWA ® Highly dynamic EtherCAT servo drive
  • RAYTOOLS ® Cutting head Auto Focus (Switzerland)
  • ACCURL® Dynamic pipe surface height tracking
  • ACCURL® Fast piercing 2.0: Ultrafast perforation
  • Scope of Pipe Processing:￠15 mm-￠200 mm
  • ACCURL®Automatic calibration
  • Graphite Anti-burn Technology
  • Smoke extraction System(TODC-4L/4500m³/h).
  • IPG 2kw fiber laser resonator YLS-2000K
  • Floating servo table support system
  • Automatic Mechanical Loading System ATL-60
  • CE Norms:Protective Measures with Real-time monitoring camera
  • Class IV safety system and CE marking
  • Full automatic voltage regulator System
  • FSCCUT ®Embedded PCs: Industrial PCs with directly integrated I/O level
  • Industrie 4.0 for sheet metal working with TwinCAT Analytics and TwinCAT IoT

Flexibility and efficienc

A comparison of the production steps involved in laser tube cutting and conventional manufacturing

Why ACCURL ?

  • The right tube laser
  • Innovative features such as bevel cutting
  • Comprehensive technology and cutting data
  • Ergonomic machine concepts
Our functional features and integrated know-how support your tubes and profiles every step of the way through the machine. Each component is designed to achieve optimal results. Real benefits every step of the way.

Simply Efficitent

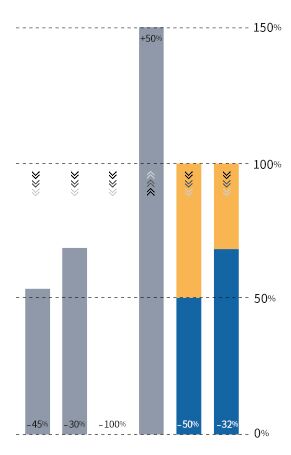

Taking the example of a bending connection, laser tube cutting is 49% more time-effi cient and 31% more costeffi cient per part.

  • Construction, programming, job Processing
  • Intermediate handling, reworking
  • Hourly rates
  • Total time per part
  • Cost per part
Read More

Laser tube cutting with Tube Laser

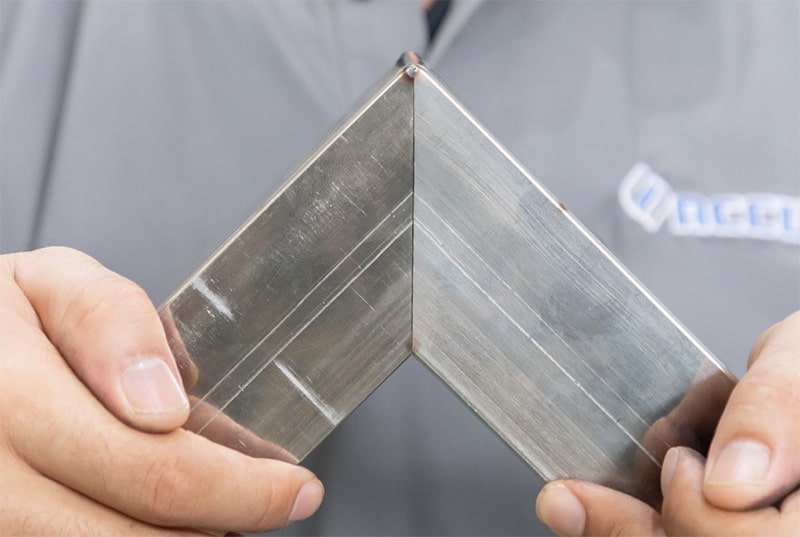

Conventional welding of two separate parts.

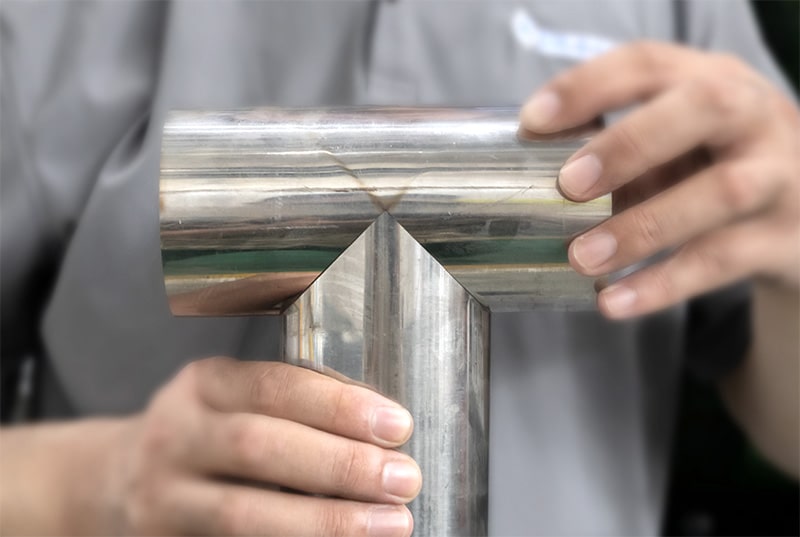

. Laser-constructed with bending connections
and additional positioning elements.
Rational Structure:
ACCURL® QL-FCT. 6020B tube laser offers a full range of material capacities up to 550mm round, with raw material lengths up to 12 meters.

Chunks And Claws

Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø200mm
Read More
frontchunk-1
Front Chunks
frontchunk-1
frontchunk-2
Medium Chunks
mediumchunbk11
mediumtchunk-2
Rear Chunks
Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube, elliptical tube, flat tube, triangle tube, I-beam and other materials.
reartchunk-1

Servo Floating Support Table

When cutting, follow the pipe to float up and down, hold the pipe to ensure the cutting precision.

Three Servo Supporting Device

When cutting different material, we can automatic adjust the servo support system to well-suited with the material. The support system ensure that the pipe can easily finds its concentric point with the chuck so that to

Cnc Control System For Tube Laser

The FSCUT-5000 tube laser cutting control system of an tube laser cutting control system. Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

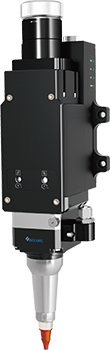

Cutting Head Raytools

The RAYTOOLS AG comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.
raytoolslogo

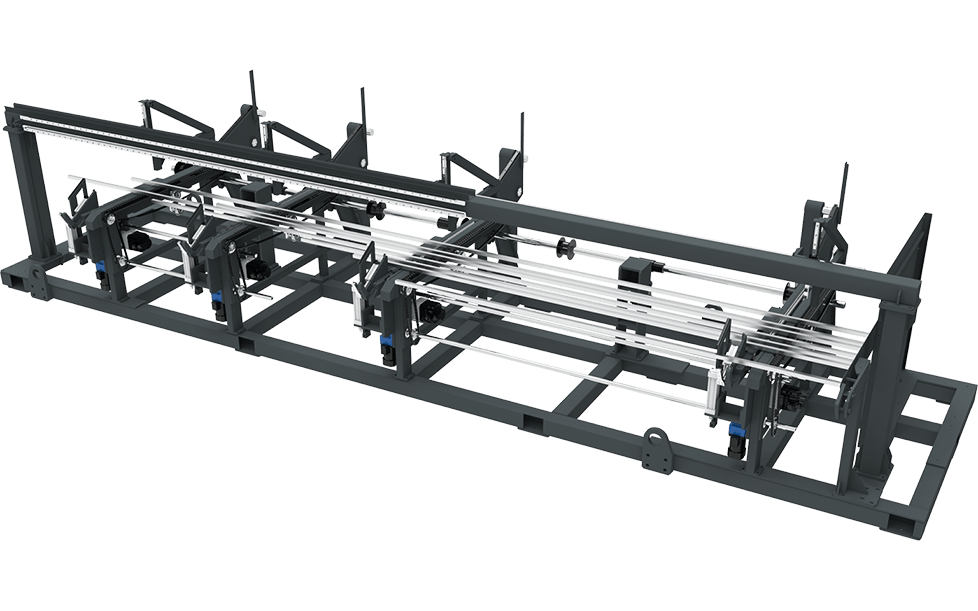

Automatic Mechanical Loading System Atl-60

  • Height Limit module
Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangular tube is laid flat and forward.
  • Material frame module
The whole bundle of pipes is hoisted and loaded into the material frame.
  • Length measuring module
Flatten the pipe to the length of the pipe and transfer the date to the host
  • Loading Size
The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s
