Discover our fiber laser cutters and find the product suited for your business
For every fiber laser cutting technology we have studied different products, because we know that your needs can be different.
ACCURL 2D CNC Fiber Laser Cutting Machines
Based on optimal machinery design technology through exhaustive structural analysis, ACCURL manufactures ultralight, high-precision, high-energy 2D fiber laser cutters for industry.
Robust Construction
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress, and they are built to last years of heavy use without distortion.
Advantage:
- Very stiff and stable base frame
- Deformation simulation made by CAE
- Stress points analysis
- Electric welding of high precision
- Usage of high-tech boring machines for extreme precision parts
Fully Annealed Frame
Semi-hollow bed design, small heating area. The rear frame is more stable for better bearing capacity. To avoid deformation of the bed due to long-term high temperature, it provides a strong guarantee for users to achieve long-term batch and stable cutting of thick plates.
Graphite Anti-burn Technology
The area in the entire machine tool where the laser can shoot at is all covered and protected by 20mm thick graphite anti-burning To insuring the machine bed and working table not be out of shape and burned-out.
Accurl® Ultra Light-Weight Gantry Structure
ACCURL® Light-weight cutting head assembly (Total weight 130 lbs) is designed for high dynamic movement, lowering the Tool Center Point to keep the cutting head from losing accuracy that is caused by whipping or drifting during high-speed accell/decell movement.

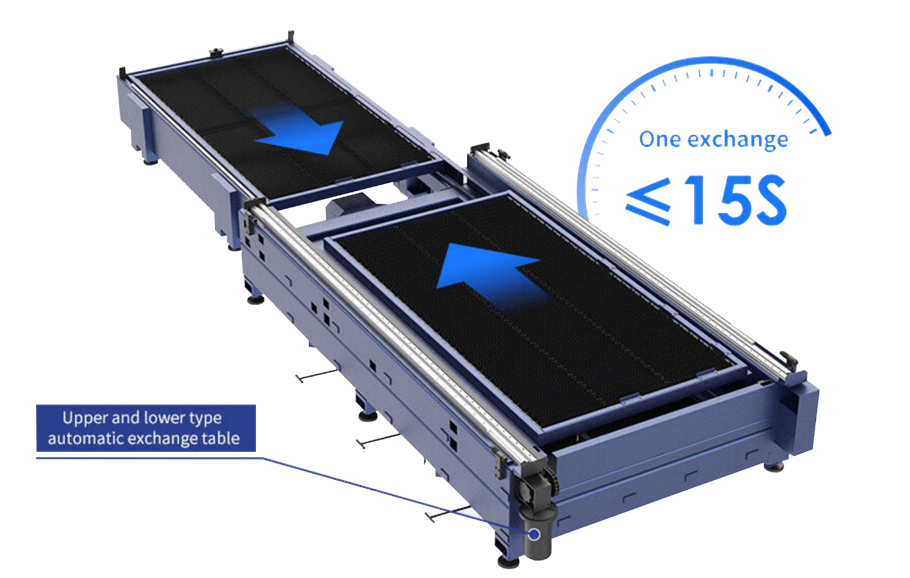

Motorized-automatic Exchange Table
Independent developed of high and low exchange table, simple and clever structure design, complete one exchange ≤15 seconds, efficient and save labor costs. The front of the motor is safe and anti-collision.
Cast Aluminium Gantry
ACCURL® high tech aluminium crossbeam is cast in a specially manufactured 10-tonne steel mold. This allows better rigidity at 50% of the weight of traditional iron gantries, allowing higher acceleration with reduced inertia.
SmartLINE Series
ACCURL® SmartLINE Packed with a host of easy-to-use features, the SmartLINE is the compact, versatile and productive 2D laser cutting machine for undisputed superior quality results. Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Also can optional Axis for round, square and rectangular tubes.
- Max. laser power: 12 [kW]
- Max. acceleration: 2.0 [G]
- Positioning speed: 150/180 [m/mm]
- Pallet changing time: 15 [s]
- Repeatability: 0,03[m/m]
Smart 1kW 1.5kW 2kW 3kW Fiber Laser Machines
Engineered to be incredibly fast and flexible. The ACCURL Smart laser cutting system is ideal for ultra-high-speed cutting of thin sheet metal parts and similar materials.
The Genius has the ability to cut a wide range of ferrous and non-ferrous metals while increasing productivity and reducing operating costs.

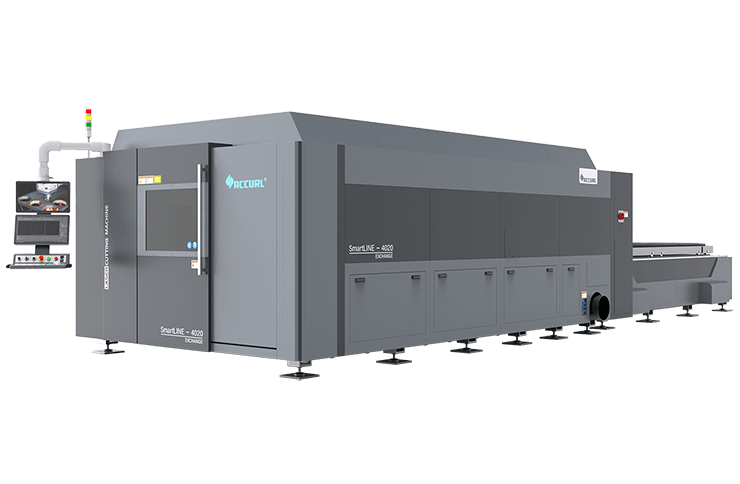

SmartLINE 2kW-4kW Fiber Laser Machines
The ACCURL® SmartLINE is packed with easy-to-use features. The SmartLINE is a compact, versatile and productive 2D laser cutting machine that delivers undisputed efficiency and superior quality results.
Suitable for a wide range of materials used in metal fabrication, including highly-reflective metals and thick mild steel. Optional axis for round, square, and rectangular tubes available.
MasterLINE 6kW-15kW Fiber Laser Machines
ACCURL® MasterLINE machines are the most complete, compact, and configurable sheet metal laser cutter systems on the market, designed to evolve with your needs. No worries about space requirements. The MasterLINE has a compact footprint and configurable layout to fit the available space and process requirements.
MasterLINE fiber lasers are suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. They also have optional Axis for round, square and rectangular tubes.
Tube Laser Cutting Machine
WHY ACCURL LASER CUTTING?
Innovative Modular Design
Our fiber laser machines can be combined with automation modules to create a complete and efficient system for the entire production process.
Customized fiber laser cutting solutions at affordable prices, from entry-level to high-end machines.
