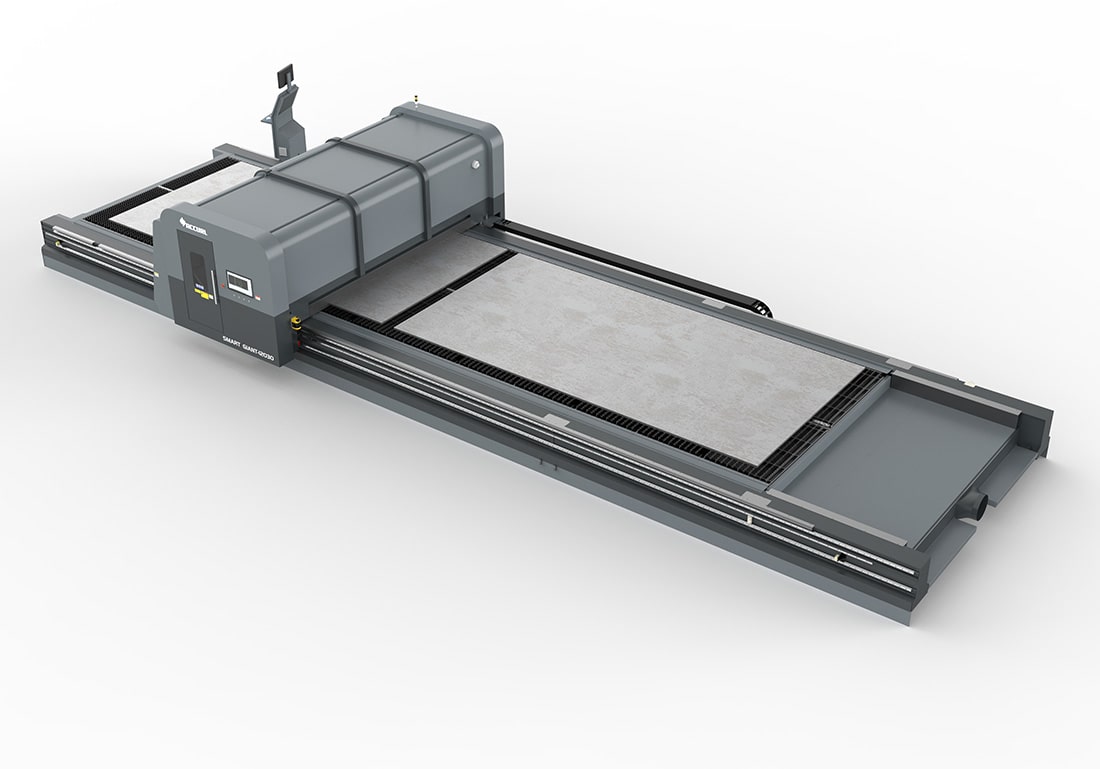

Large-format 12 kW ~ 40 kW Laser Cutting SMART Giant
SMART Giant 12 kW ~ 40 kW Fiber Laser
Includes Following Features And Configuration
Compact Design
Maximizes floor space without compromising cutting quality.
Range of Laser Sources
Choose from 12 to 40 kW laser sources for versatility in production.
Manually Retractable Cutting Table
Simplifies loading and unloading for increased efficiency.
High Precision
Achieve highly precise cuts at high speeds, perfect for intricate parts production.
Low Maintenance and Operating Costs
Enjoy cost-effectiveness without compromising performance.
Why Accurl Laser Cutting?
Innovative Modular Design
- Our machines can also be combined with automation modules to create a complete system for the whole working process.
- Customized solutions at a reasonable price, from basic to high end machine.
Experience
- 33 years of experience and more than 12,000 installed machines.
- An expert R&D team committed to research the most competitive technology for our customers.
More Varied Solutions for Cutting
- Sustainability and social responsibility are characteristics of modern companies and add to competitiveness.
- Comprehensive range of basic tools in stock and modified solutions according to customer needs.
ACCURL High Quality Equipment
- The critical parts of the Accurl laser machine are manufactured in Germany.
- We rely on our quality and therefore give our laser cutting machine a 3-year warranty.
- The IPG Fiber resonator. Power from 12kW To 40kW.
After-Sales Service
- Original ACCURL spare parts to guarantee full performance and prolonged durability.
- Wide range of consultation services on machine operation, programming and maintenance.
Software And CNC: User-Friendly And Effcie™
Customer ERP connection
Importing of production list order from customer ERP.
Human Machine Interface
Interacting in an easy and friendly way, through touch screen, with the machine and relevant automation.
Production and Performance data Reporting
Proprietary solution for viewing reports of machine status and analyzing production data.
Cam programming / 2D Cam and Tube Cam
Efficient pogramming for a productive fabrication process:
• Powerful nesting .
• Optimized Post Processor for 2D cut programming and tube cut programming .
• Powerful simulation.
Monitoring / Production Control
Monitoring machine statuses and task lists and displaying all the events of all the machines in one view.
Jobshop 4.0 By Libellula
The system of performing and integrating software solutions to manage every metal sheet working phase in a productive and efficient way.
High-capacity for outstanding performance
Flexible
Suitable for a wide range of materials, including highly-reflectie metals and high thickness mild steel. Ready for round, square and rectangular tubes.
Reliable
Fully-tested and reliable thanks to the 20 years of experience with the MasterLINE platform.
Profitabie
Low operating costs thanks to energy efficiencyand reduced maintenance.
User Friendly
Single focusing lens system with automatic nozzle changer. Easy to use programming software and Accurl operator interface.
HYPCUT TwinCAT CONTROL UNIT:
The ACCURL SMART Cube Fiber Laser is controlled with a HypCut FSCUT 8000 CNC control unit which provides unprecedented control of the cutting process.
Advantage:
- 17” high resolution colour TFT
- High-speed EtherCAT communication
- TwinCAT: software for engineering and runtime
- Highly dynamic servo drive technology
- Integrated retention brake control.
- Automatic adaptation of parameters.
- Adjustable error reaction.
Successfully Controlling Precision
HypCut CNC controllers are used in laser cutting machine. And the TwinCAT NC I/CNC automation software is ideally suited for application-specific functions, including adaptive jet control, reverse travel or path resetting.
Successfully Controlling Precision
ACCURL® advocated its own new IoT technology as “Intelligent Internet of things factory”, termed the “Smart-Factory”.
Robust Construction
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress, and they are built to last years of heavy use without distortion.
Advantage:
- Very stiff and stable base frame
- Deformation simulation made by CAE
- Stress points analysis
- Electric welding of high precision
- Usage of high-tech boring machines for extreme precision parts
SMART GIant Technical Specifications
| Performance | |
|---|---|
| Max. X Y speed | 100 m/min |
| Maximum XY acceleration | 60 m/s² |
| Accuracy | ±0,05 mm |
| Repeatability | ±0,03 mm |
| Working capacity | |
| Processable metals | Mild steel, stainless steel, aluminum, copper, brass |
| Maximum sheet dimensions | 12.250 mm x 3.100 mm [Smart Giant-12030] 16.250 mm x 3.100 mm [Smart Giant-16030] 25.250 mm x 4.100 mm [Smart Giant-25040] |
Features of the IPG equipment are as follows:
- Direct control of all the fiber laser functions
- Synchronized control of the laser source
- Overall power control
- High speed perforation
- Edge machining function
- Cutting data library
- High speed fiber laser cutting
Request a quote
Tell us the material, the thickness and the part sizes. An engineer answers, not a form letter.
