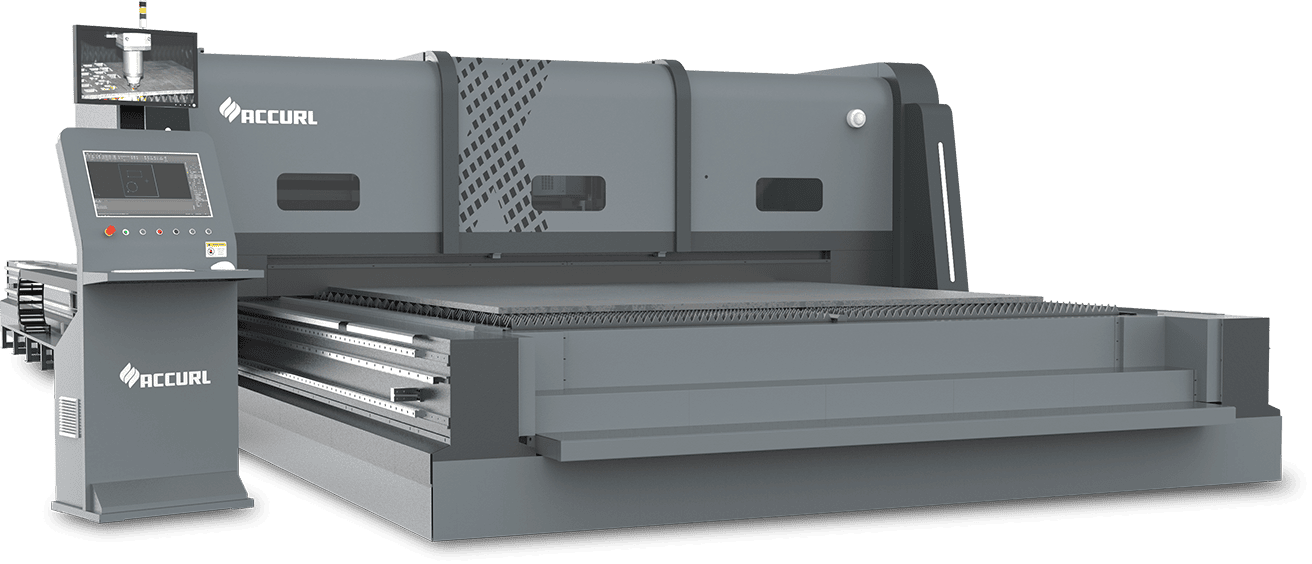

Accurl SMART Giant X

Large-format cutting for XXL sheets, thick materials, and high-volume production environments

The SMART Giant X was developed for industrial large formats and XXL material cuts. It covers the field of XXL sheet metal processing and enables users to process extremely large sheet metal sizes efficiently and precisely. The SMART Giant X is therefore the optimal solution for industries such as heavy steel construction, ship building or plant engineering, in which exceptionally large workpieces are part of everyday life. It combines large working areas with high performance and the ability to use both 2D and 3D laser-cutting technology. The system is available as standard with a working area of up to 3,000 x 15,000 mm. However, the length can even be extended to 42,000 mm if necessary. Laser sources up to 60 kW are also available here for cutting extremely thick material.

Ask for Quote

Features

Modular and heavy-duty cutting table

The SMART Giant X sets new standards for large-format laser cutting systems and has a modular design. In the standard version, it can be configured with a working width of 3,100 mm and a working length of 6,100, 9,100, 12,100, or 15,100 mm. If required, a length of up to 42,100 mm can even be achieved. The SMART Giant’s table design combines maximum stability, modular flexibility, and intelligent adaptability — for maximum precision even under extreme conditions.

High-quality components from renowned brand manufacturers

The system owes its high reliability and process safety to being equipped with extremely high-quality brand-name components throughout. Here is a brief excerpt:

  • Cutting head: THERMACUT Ex-Trabeam® (Germany) / BOCHU BLT (China)
  • Control system: MicroStep Europa MSE SmartControl (Germany) / TWINCUT S80 (China)
  • Servo drives: Eckelmann (Germany) / Yaskawa (Japan)
  • Gears & racks: WITTENSTEIN alpha (Germany)
  • Linear guides: BOSCH Rexroth (Germany)
  • Gas valve: HOERBIGER LasGARCompact (Germany)

High power: up to 60 kW laser power for maximum productivity

More laser, more beam force, more power: laser sources with an output of up to 60 kW are available for this series. Users can therefore generate even faster cutting results or cut thicker materials; they also benefit from maximum productivity, efficiency and low unit costs.

Laser sources from the renowned manufacturers IPG Photonics and Raycus provide the necessary power. Both suppliers stand for maximum process reliability and innovative products, have a wealth of experience, and a strong R&D base.

Steel crossbeam with intelligent lubrication system

The ACCURL steel crossbeam with intelligent, automated lubrication system sets new standards for large-format laser cutting systems.

Why steel?

  • ACCURL Box-Type Cage Structure: Robust cage construction for superior structural integrity.
  • Excellent mechanical properties: Steel offers significantly higher strength and stability than aluminum.
  • Ideal for large spans: Minimizes vibrations and deflection – even with XXL formats.
  • Technical highlights: 35% weight reduction, only 0.04 mm deflection at 1.0 G acceleration.

Safety concept: Protection at top speed!

With ultra-fast acceleration and parallel processes such as loading and unloading, a conventional safety concept is not sufficient. The SG-X safety system from ACCURL monitors the environment in real time and prevents collisions – for maximum safety and productivity.

Advantages at a glance:
  • Multi-zone scanning: The front, rear, and sides of the mobile cutting cabin are continuously monitored.
  • Intelligent response: Warning and stop zones protect personnel and materials from collision with the cutting cabin.
  • Automatic restart: Once the operator has eliminated the hazard and acknowledged the error, the cutting process continues seamlessly – without unnecessary downtime.

Automatic nozzle change: even greater productivity!

The new auto nozzle changer system from ACCURL revolutionizes nozzle changing in laser cutting systems. Instead of time-consuming manual changing and calibration, the intelligent system does everything automatically—quickly, precisely, and reliably.

Your advantages:

  • Maximum efficiency: Significant reduction in downtime.
  • Flexibility: Processing of different material thicknesses in a single pass — without operator intervention.
  • Smart technology: Fully automated processes for maximum utilization and productivity.

ACCURL LasGAM – Efficiency through intelligent gas control

The ACCURL LasGAM system powered by HOERBIGER is a game changer for laser cutting: Precise gas mixing efficiently removes molten residue, enabling fast, clean cuts on thick materials with high laser power. Less burr means less rework—saving time and money.

Advantages at a glance:
  • Fast mixture adjustment: O₂ content from 0–20% in < 1 second.
  • Increased productivity: Up to +50% more output compared to standard processes.
  • Reduced gas consumption: Up to -55% less cutting gas for lower costs and greater sustainability.
  • Reliable cutting quality: Continuous status monitoring for consistent results.

Excellent cutting quality with different materials

Thanks to its premium components, the SMART Giant X delivers outstanding cutting quality across a wide range of materials. Special sensors integrated into the cutting head ensure high quality and process reliability, even in multi-shift operation.

The laser system can cut mild steel, stainless steel, aluminum, brass, and copper, among other materials. Depending on the laser source and material, thicknesses of up to 50 mm can be processed.

High efficiency in spite of strong performance

  • Highly attractive pricing with comparatively manageable investment and operating costs enables a fast return on investment
  • 2/3 less power consumption with higher cutting speed at the same time (compared to CO₂ lasers of the same power)
  • Complete system is almost maintenance-free
  • No laser gases required
  • Immediately ready for operation after switching on the machine
  • Fast commissioning thanks to compact and modular design (plug & produce)

Remote Diagnostics

Thanks to powerful remote maintenance solutions, Accurl provides fast and efficient support via remote access. Most electronic systems can be precisely analyzed and evaluated using the software, enabling over 90% of all machine downtime to be resolved quickly and without the need for an on-site technician.

Green SmartFactory 4.0: Ready for Industry 4.0

The machine is more than just an optimal entry into high-quality laser cutting: The series is prepared for the use of IndustryFusion, a vendor-independent open source networking solution for smart factories and smart products.

The networking solution developed by medium-sized mechanical engineering companies in the Industry Business Network 4.0 association together with companies such as Intel, TÜV Süd and research institutions such as Fraunhofer IGCV offers complete transparency of all connected plants and machines in your production – and as a result enables you to produce even more efficiently and automatically. Already existing machines can be easily retrofitted and integrated into the networking solution.

COMING SOON: Laser rotator for bevel cuts up to 45°

The Advanced Bevel Cutting Head from ACCURL, which will soon be available as an option, enables perfect weld seam preparation: With the beveling unit, the MasterLINE X produces ready-to-weld parts in a single step. Precise A, V, X, K, and Y bevels up to 45° can be achieved quickly, stably, and with high precision up to a maximum material thickness of 60 mm.

Advantages at a glance:
  • Highest cutting precision: For optimal weld seam preparation!
  • Minimal heat impact: Reduces deformation and reworking costs.
  • Material efficiency: Narrow kerfs save material and reduce waste.
  • Versatility: Engraving, marking, straight and bevel cuts in a single process.

Control

Two powerful control options are available for the series: MSE SmartControl, developed with Eckelmann, offers an intuitive HMI, fast height control, extensive assistance functions, and is fully IndustryFusion-ready. Alternatively, the TWINCUT S80 from ACCURL enables ultra-dynamic processes with high-speed communication, automatic parameter adaptation, integrated CAD/CAM nesting software, and comprehensive monitoring for maximum cutting performance.

MSE SmartControl machine control

Mse Smartcontrol

High-end: Industry 4.0 control with intuitive operating logic

MicroStep Europa has developed the MSE SmartControl control system in collaboration with German control specialist Eckelmann. The machine control system, manufactured for use in all environmental conditions, is used to control the cutting components and cutting peripherals. The MSE SmartControl has a user-friendly HMI (Human Machine Interface), which can be conveniently operated via two 21.5″ TFT multi-touch displays and an additional handheld device. A clear and easy-to-use graphical user interface allows for quick familiarization. The machine control system includes an industrial-grade PC. The control components are located in a control cabinet. The cables are routed in a secure cable duct. In addition to fast height control for a constant distance to the workpiece, the control system also offers CNC-controlled compensation mechanisms for optimum laser focus position. Additional functions such as sheet metal position detection, cut compensation, and wear part monitoring are integrated into the control system as standard.

The MSE SmartControl is also optimized for use with IndustryFusion, a cross-manufacturer open-source networking solution for smart factories and smart products.

TWINCUT S80 machine control

Twincut S80 Machine Control

Process reliability, efficiency, and repeatability

The TWINCUT S80 CNC control system takes over the complete control of all cutting components and the associated peripherals. It is equipped as standard with a user-friendly HMI (Human Machine Interface), which can be conveniently controlled via a 21.5″ touchscreen or an ergonomic hand-held operating device. The clear graphical user interface enables intuitive operation and quick familiarization for users. The control system is based on a robust industrial PC, which is integrated together with all other control components in a separate control cabinet. The power and signal lines are routed in a secure cable duct. To ensure optimum cutting quality, the control system features fast automatic height control for a constant distance to the workpiece and CNC-controlled compensation mechanisms for precise laser focus positioning. The following functions are also integrated as standard:
  • Sheet metal layer detection for automatic alignment of the cutting process
  • Smart Piercing for optimized piercing processes
  • Smart Laser Off to reduce unproductive times
  • Smooth Microjoin for improved component quality
  • Auto Recut when incomplete cuts are detected
  • Integrated CAD/CAM system for simple and efficient programming

Technical Specifications

Dimensions
Effective length of work area6,950 to 15,900 mm
Effective width of work area3,2500 mm
Automatic shuttle tableincluded as standard
Standard models*

SMART Giant X

6001.30L

SMART Giant X

9001.30L

SMART Giant X

12001.30L

SMART Giant X

15001.30L
Max. permissible workpiece weight (kg/m2) 750 750 750 750
Work area Length (mm) 6,100 9,100 12,100 15,100
Width (mm) 3,100 3,100 3,100 3,100
Dimensions incl.
peripherals*		 Length (mm) 10,930 13,930 16,930 20,930
Width (mm) 5,475 5,475 5,475 5,475
Height (mm) 2,900 2,900 2,900 2,900

*The length of the working area of the standard models can be extended by 3,000 mm or 6,000 mm segments up to a maximum of 42,900 mm

**Approximate figure including space required for peripherals (laser source, filter system, cooler, safety equipment).
Possible number of tools 1
Possible cutting processes fiber laser
Maximum material thickness according to laser source upt to maximally 60 kW
Traverse speedup to 49,500 mm/min
Positioning accuracy Pa± 0.05 mm according to VDI/DGQ 3441
Repeatability Ps± 0.05 mm according to VDI/DGQ 3441
X, Y axislinear guides, driven on both sides and helical toothed racks
Z axisrack
Gantry typesteel crossbeam with intelligent lubrication system
Control MSE SmartControl / TWINCUT S80
Main control panel ergonomic 2 x 21.5“ TFT multitouch panel
Operating system Windows 11 LTSC / Windows 10 LTSC
PowerMild steel (MS)Stainless steel (SS)Aluminium (Al)Brass (Br)Copper (Cu)
12 kW30 mm30 mm30 mm20 mm15 mm
15 kW35 mm35 mm35 mm20 mm15 mm
20 kW40 mm40 mm40 mm25 mm15 mm
30 kW50 mm40 mm40 mm25 mm15 mm

* Maximum cutting thickness for laser outputs > 30 kW on request, as quality-dependent

** Select sheet metal format according to the maximum permissible workpiece weight

All specifications subject to change
