GREEN HYBRID SERVO GENIUS B SERIES

ADVANCED TECHNOLOGY.
THE LEADING EDGE OF ACCURL® PRESS BRAKES.

ACCURL® EURO-GENIUS Series press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of GENIUS Series machines.
The future – as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed
solutions are on the advance.

REQUEST INFORMATION

TECHNICAL FEATURES

DELEM CNC CONTROL UNIT

LAZERSAFE SYSTEM

ONE STEP BEYOND

ACCURL BACKGAUGE SYSTEM

FOOT PEDALS

WILA CLAMPING SYSTEM

CLEVER CROWNING

FRONT SUPPORT

NEW HYBRID-ECO-FUNCTION

PRESS BRAKE CYLINDERS

DELEM CNC CONTROL UNIT

ACCURL®has chosen the very powerful new generation DELEM DA66T/DA69T

LAZERSAFE SYSTEM

The LZS Series and IRIS Series provide superior optical protection while maintain-ing the highest level of productivity and performance.

ONE STEP BEYOND

Using all ACCURL’s knowledge and technology, Pro models combine quality, performance and accuracy for those company’s that wants to embrace future sustainable development.

ACCURL BACKGAUGE SYSTEM

ACCURL® press brake are provided are equipped with CNC backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.

FOOT PEDALS

This press brake machine uses foot pedal, is suitable to CE regulation.

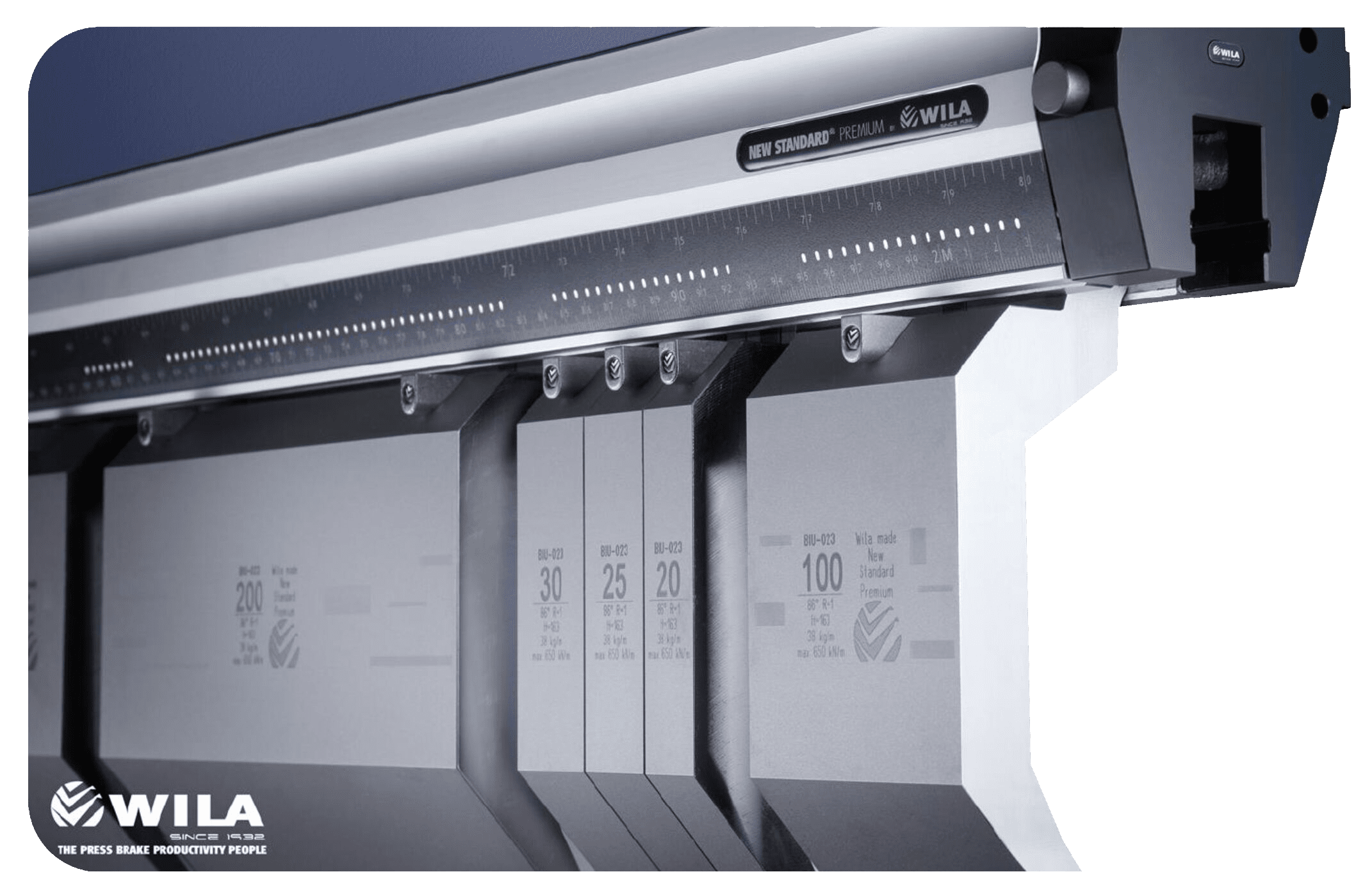

WILA CLAMPING SYSTEM

The Wila’s ‘New Standard’ Tooling System has become market leader for precision, quality and flexibility for the Accurl press brake.

CLEVER CROWNING

Very stiff and stable base frame
Deformation simulation made by CAE
Stress points analysis

FRONT SUPPORT

Sheet supports are auxiliary bending accessories. They must be chosen according to the dimensions and weight of the pieces.

NEW HYBRID-ECO-FUNCTION

A package of innovative and customer-oriented solutions aimed at reducing machine consumptions.

PRESS BRAKE CYLINDERS

In order to allow tilting of the ram without damage,because we use spherical connections. This type of connection also allows peak forces to be absorbed gently.

ADVANTAGES

REQUEST INFORMATION

High energy-saving potential
Decreased operating costs
Clearly reduced cooling effort
System safety
Future-oriented technology
Remarkable noise reduction

Fewer secondary measures
Compliance with EU CE Directives
Decrease in the number of expensive machine failures
Lower energy for a green Machine
Lowered sound pressure level at 40 dB
The servo-motor, with closed loop speed control

STANDARD
EQUIPMENT

REQUEST INFORMATION

DELEM DA-66T CNC control unit with 2D graphics
GREEN Hybrid Servo System
Y1, Y2 precision ram positioning
Standard BGA-4 for X, R ,Z1 ,Z2-axis ( X=800mm,R=200mm)
DELEM CAD/CAM Profile-T3D Expert 3D Offline Software
ACCURL PRO CNC motorized wave crowning
Large trio of value
Large open height
Large stroke

Large throat depth
HOERBIGER hydraulic valve block, pump and valves
High Siemens efficiency motor– class IE3
Rear cover: Safety barriers (Category IV)
Sheet metal frontal supports
Front and rear lighting
Industry 4.0 of Productivity Monitor (software version V3.5.3)
CE Norms: OEM Embedded Laze safe Systems PCSS A0 + LZS-2 Block Laser (Category IV)

ROBUST CONSTRUCTION

ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. and they are built to last years of heavy use without distortion.

ADVANTAGES:

Very stiff and stable base frame
Deformation simulation made by CAE
Stress points analysis
Usage of high-tech boring machines for extreme precision parts.

REQUEST INFORMATION

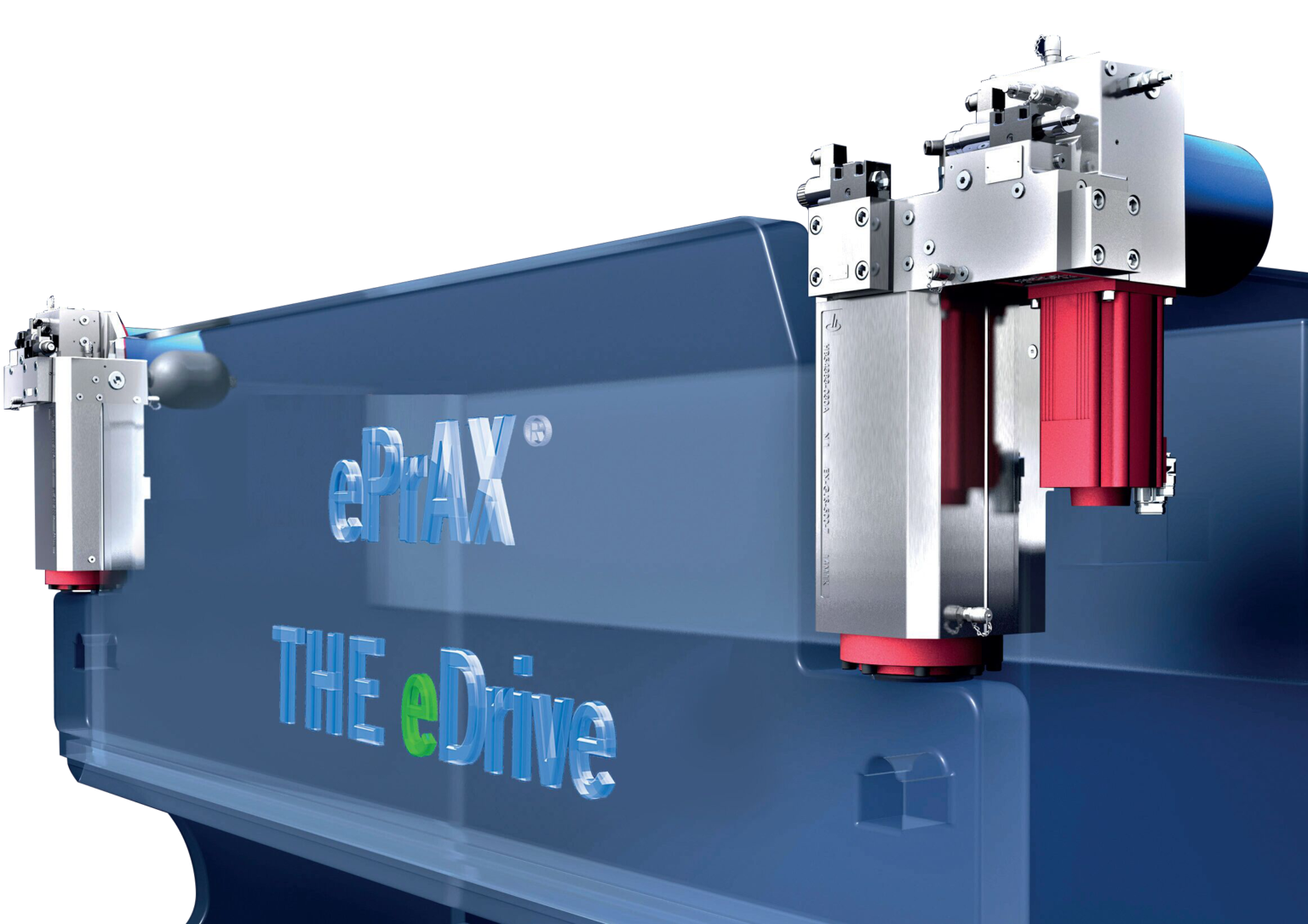

GREEN HYBRID SERVO SYSTEM

The ePrAX® Hybrid Servo System- improving the energy efficiency of up to 73 % compared to conventional systems.

The ePrAX® control hybrid system is an innovative servo drive for press brakes, and thanks to the brushless motor, we can precisely control the movement of the ram using a minimum amount of oil and energy.

ADVANTAGES

High dynamic for higher productivity of the machine.
Lower energy for a green Machine.
Lowered sound pressure level at 40 dB.
The servo-motor, with closed-loop speed control.
Mass overcompensation of press ram.
The energy efficiency of up to 73 % compared to conventional systems.
Operating cost is min due to low energy consumption.thus, it gives advantages to the user with high efficiency & low operation cost.

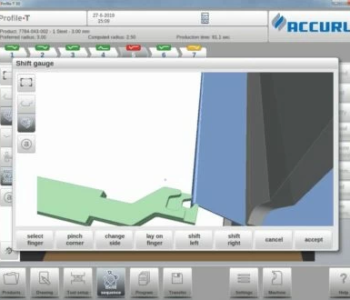

DELEM DA66T/DA69T CNC CONTROL

ACCURL®has chosen the very powerful new generation DELEM DA66T/ DA69T offers an higher level of efficiency in programming and control of press brakes. The winning MADE in Netherlands design and the high quality of all the construction details, guarantee prestigious performances and long product life.

DELEM DA66T/DA69T CNC System Features::

17” high resolution colour TFT(touch screen control)

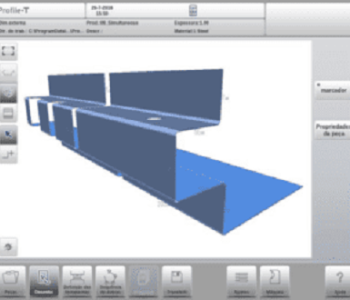

2D/3D graphical touch screen programming mode
3D visualisation in simulation and production
Exporting of computed flat patterns as DXF ,3D STEP, IGES files(Profile-T-3D)
Automatic tool selection and machine tooling

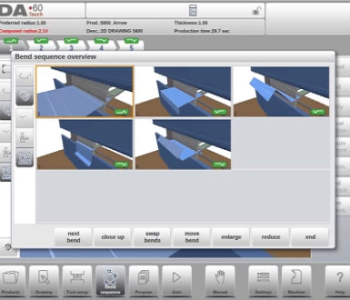

3D Simulation with automatic best bend sequence identification with collision detection.

STEP PREVIEWER :

Bar with possibility of horizontally scrolling of the bending steps

SMART DRAFT :

Innovative drawing method for generating 2D/3D workpieces

SIMULATION :

Real-time animation

READY FOR INDUSTRY 4.0(EXCLUSIVE)

ACCURL puts industry 4.0 within the reach of companies™

The future of manufacturing is undoubtedly digital. With the fourth industrial revolution taking over (a.k.a Industry 4.0),the Industrial production must adapt and cannot escape to the new reality of Industry 4.0, a production model in which all elements of the chain must be interconnected and communicate with one another.

Thanks to the advanced ACCURL® CNC and interconnecting ad-hoc software tools like the “Smart Factory” make it possible for companies to enter industry 4.0 that is revolutionizing the reality of companies. You can extract data and share information at company level: bending programs, sensors, production statistics.

OEM EMBEDDED LAZERSAFE SYSTEMS:

Performance without compromise.™

ACCURL®use LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe’s PCSS A Series, the Lazersafe is category 4 compliant and meets the world’s most demanding international safety standards(CE Certified Category 4 Safety Controller with integrated).

Advantage:

- CLASS 1 Dual planar laser

- Fast response time

- Safety speed automatically monitored

- Stopping distance automatically monitored

- Mute point automatically detected and monitored

- Tray mode for high-speed bending of tray and box shapes

- Complex shapes can be achieved at high speed with Tray/Box Mode.

Automatic tool alignment:

The systems with a camera receiver feature automatic tool alignment that eliminates the need for precise manual adjustment and this process can also be fully automated in the CNC via SmartLink, eliminating the need for the operator to press the TOOL ALIGN button

IRIS PLUS ANGLE MEASUREMENT SYSTEM

The state of the art in combining safety, productivity and precision:

The The IRIS System safety equipment by Lazer Safe represents the most advanced

safety solution for press brakes in terms of productivity and protection level. Its unique features increase the competitiveness of the Genius Press Brake:

BendVision for angle measurement:

BendVision technology provides a range of real-time angle measurement data that includes the inside and outside angles of the material, average angle, material warp angle, material spring back angle for various material types, thickness and grain direction, plus end of relaxation angle once the bend has been completed.

Automatic Angle Measurement Control:

Active Angle control is a highly accurate angle control process that calculates spring back for each individual bend, then controls the bend depth with Live Angle Bending to achieve the correct angle.
IRIS Plus real time angle correction An important device for the most demanding applications.

Features Iris Plus:

Never collision with workpiece
Bend Speed management
Active Angle Control
Dynamic Angle Control
Spring Back Calculation
BendVision for angle measurement
BendVision for tool recognition and confirmation
Recommendable Most optimal accuracy results (3.6meters or less)
Different single V-‘s -openings (8 until 35 mm) & dies are applicable,
Fully integrated with ACCURL^® New DELEM CNC, this device can be used as a total bending controller. Deviation of thickness, spring back, lamination, material strength are corrected while bending, reaching a new working level

CNC BACKGAUGE

ACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.

BGA 2	2 axes X+R (Standard)
BGA 4	4 axes X+R+Z1+Z2 (Optional)
BGA 5	5 axes X+R+Z1+Z2+X2 (Optional)

Axes	X	R	Z1	Z2	X5
Stroke (mm)	750 (1000)	150	Under request*	Under request*	190
Speed (mm/s)	500	170	2000	2000	300
Precision (mm)	0.01	0.05	0.05	0.05	0.01
Type of motor	Servo Drive	Servo Drive	Servo Drive	Servo Drive	Servo Drive
Mechanical system	Ball screw	Ball screw	Rack	Rack	Ball screw

Axes	X1	X2	R1	R2	Z1	Z2
Stroke (mm)	750	750	200	200	Under request*	Under request*
Speed (mm/s)	500	500	500	500	2200	2200
Accuracy (mm)	0.01	0.01	0.01	0.01	0.05	0.05
Type of motor	Servo Drive	Servo Drive	Servo Drive	Servo Drive	Servo Drive	Servo Drive
Mechanical system	Ball screw	Ball screw	Ball screw	Ball screw	Rack	Rack

LASER CHECK ANGLE MEASUREMENT

Bending Angle Measurement:

Laser Check, manufactured by Data M Engineering, is a bend angle measurement and correction system by means of a laser beam. The device is made of a laser and a camera on both sides of the bending line. Detection is carried out in this way

Advantage:

A laser beam is projected on the sheet metal surface
The camera detects the laser beam
The angle between the beam and the camera axis determines the bend angle.
Force reduction + calculation of the spring back
Automatic angle correction

REQUEST INFORMATION

REAR THIN SUPPORTS FOR BACKGAUGE

With the Thin-support system even thinner sheets are always correctly positioned and guided:

SPA Thin supports system is installed in the fingers of the back gauge. They can be activated in predefined bending and enable the plate to slide until it lies adjacent to the back gauge.

Advantage:

Back supports have ball sliders and brush to protect even the most delicate surfaces
Load capacity – 30 kg per support.

REQUEST INFORMATION

CNC BENDING FOLLOWER SUPPORTS AP1 + AP2

The sheet follower is an effective accessory for press brakes:

It basically consists of a pair of sheet supports placed on the front of the machine at the height of the bending line (bottom tool). Supports are controlled by the CNC, following and supporting the sheet during the bending process.

Advantage:

Automatic bending follower supports
AP1 – AP2 CNC-controlled interpolated axes
Recommended for heavy parts or large thin plate
bend as close as 70°
Load capacity – 180 kg per support.
Brush and support shaft dim 350×900 up to 1200 mm.

REQUEST INFORMATION

WILA® NEW STANDARD PRO CLAMPING SYSTEM

Increase your press brake productivity:

The Wila’s ‘New Standard’ Tooling System has become the market leader for precision, quality, and flexibility for the Accurl press brake. the WILA’s state-of-the-art clamp systems offer options for the ultimate efficiently changing tools with Smart Tool Locator® (STL)* have made the changeover process easier and safer. and Premium is available as an option.

Advantage:

Hydraulic power source
Quick clamping for Europe style tooling
Simple push-button loading
Max. load head/shoulders 180 t/m

Optional for Smart Tool Locator® (STL)

Increase your pressbrake productivity

The Smart Tool Locator (STL) further increases your pressbrake productivity. The system indicates by means of built-in LED’s the right clamping position of your tooling during tool set up and indicates the active tool location in production mode.
The Smart Tool Locatoroffers significant benefits in speed, precision, and flexibility.

REQUEST INFORMATION

WILA® PRO CROWNING AND HOLDERS SYSTEM

TOOL HOLDERS New Standard Pro:

This WILA® system enables the user to offset deformations of the beam while bending. thus, the angle is keeping constant along the entire plate length.

Advantage:
