ACCURL BCE-2000 Automatic Panel Center Bending 15 Axis Aluminum Composite Panels Bending Machine for Sale

Name: ACCURL BCE-2000 Automatic Panel Center Bending 15 Axis Aluminum Composite Panels Bending Machine for Sale
Brand: ACCURL
SKU: 1600935436651
Price: 118000 USD

Price: $118,000.00

Ask about this machine Specifications

Specifications

nominal pressure (kn)	2000

Description

Details

https://gv.videocdn.alibaba.com/avpl/icbu_video/copy/018a-4a9f888c-a1bd2969-8a49b39d-6cd0/20230831_c59aae530818e11b_425083860202_mp4_264_hd_unlimit_taobao.mp4

slider stroke mm: 110 mm
automatic level: Fully Automatic
throat depth mm: 110 mm
machine type: Synchronized
length of working table mm: 3200
width of working table mm: 5300 mm
dimension: 3100x5300x2600mm
place of origin: Anhui, China
brand name: Accurl
material / metal processed: Brass / Copper, Stainless Steel, Alloy, Carbon Steel, Aluminum
automation: Automatic
extra services: End Forming
weight kg: 14300
motor power kw: 11 kw
key selling points: Automatic
warranty: 2 years
machinery test report: Provided
video outgoing-inspection: Provided
core components: Bearing, motor, Pump
Product name: Panel Center Bender
Keyword: Panel Center Bender
Type: Hydraulic Bending Tools
Application: Stainless Plate Bending
Raw Material: Sheet
Control system: HC15E-S Touch Screen
CNC or not: CNC Bending Machine
Color: Customer Choose
Material: Metal Steel Sheet
Certification: CE ISO SONCAP
Condition: New
Applicable Industries: Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location: Canada, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Morocco, Argentina, South Korea, Chile, Colombia, Romania, South Africa, Japan, Malaysia, Australia
Marketing Type: New Product 2020
Warranty of core components: 2 years

Products Description

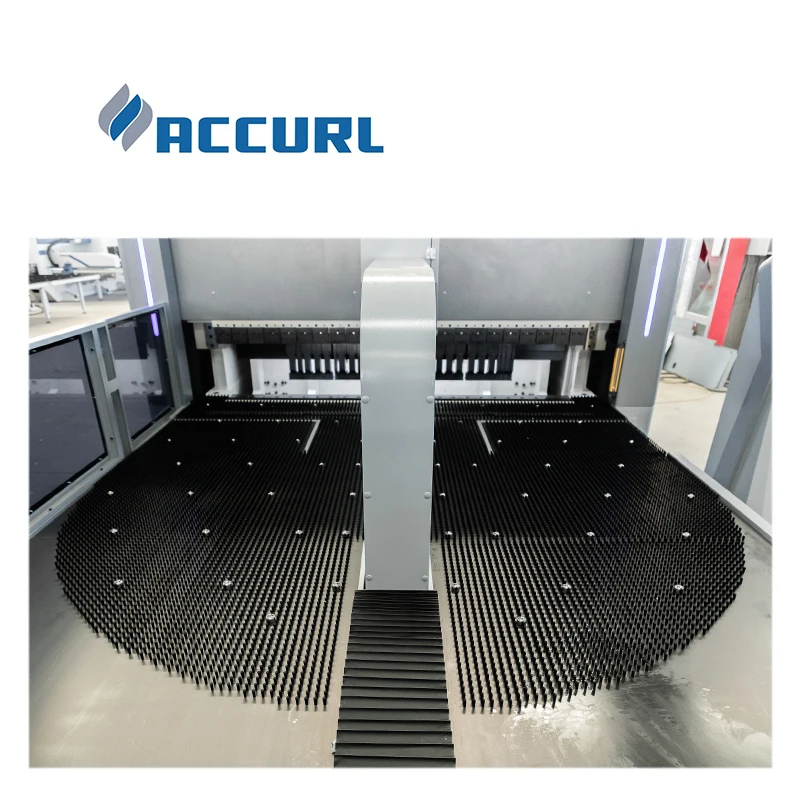

ACCURL BCE series PANEL BENDER CENTER

The BCE Series panel bender is a new generation automated bending solution, a benchmark that indicates the upgrading of the sheet metal fabricating industry to automation. It can reduce labor costs and, at the same time, achieve 300% higher efficiency compared to traditional press brakes, up to 0.3 seconds per bending. Complete electro-servo transmission, combined with closed-loop BUS control, significantly improves accuracy.

“MACHINE EXPERT FOR SHEET METAL” ACCURL is enabling the upgrading of the conventional sheet metal fabricating industry and reimaging what can be made.

Details Images

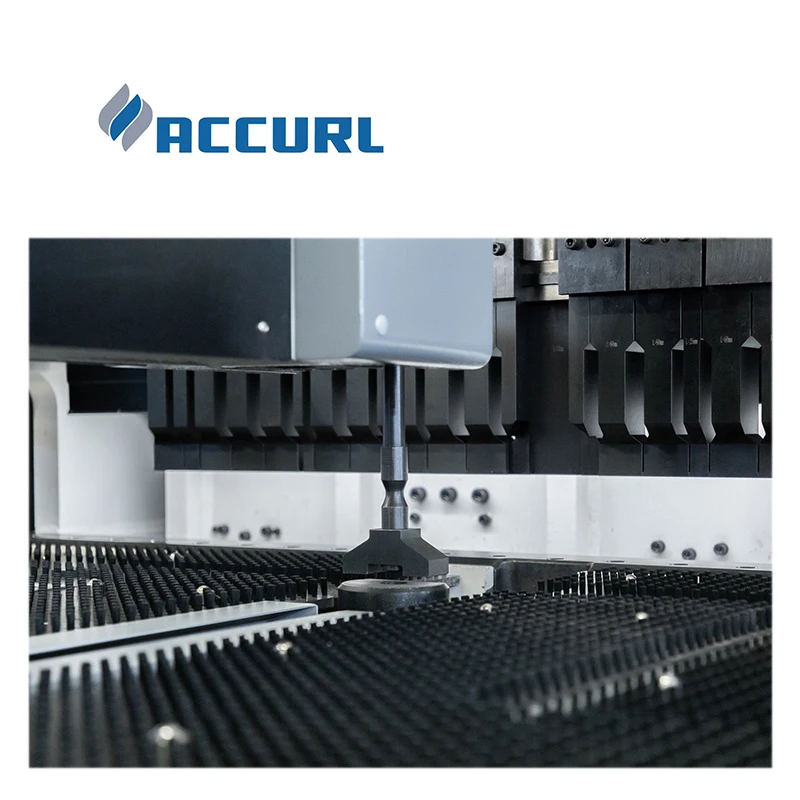

FEATURE-MULTI POSITIONING WAYS

The frame is welded by carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal spatter.

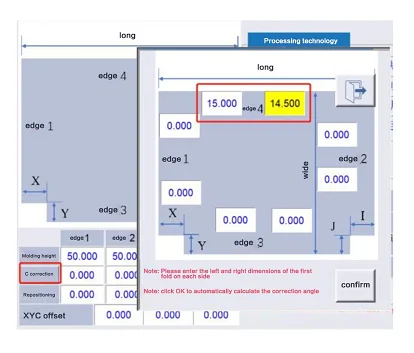

FEATURE-AUTOMATIC CORRECTION OF ROTATION ANGLE

The arc bending process requires repeated bending of the plate. If the rotation angle is not in place, the bending error will accumulate each time, resulting in the folded workpiece is not an arc, but a cone.

The automatic correction function can automatically adjust the C/C11 axis to compensate for sheet rotation errors.

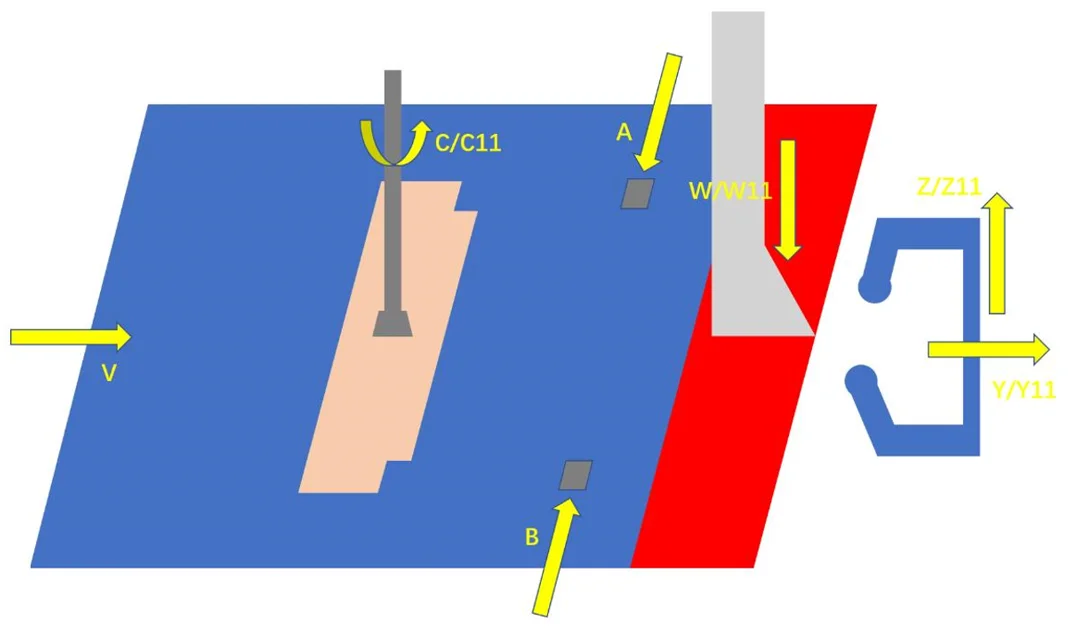

CNC AXES-11 AXES

A/B axes: Positioning axesV axis: Feeding axisC/C11 axes: Rotation axesW/W11 axes: Pressing axesZ/Z11 axes: Tooling up&down motion axesY/Y11axes : Tooling forward&dbackward motion axes

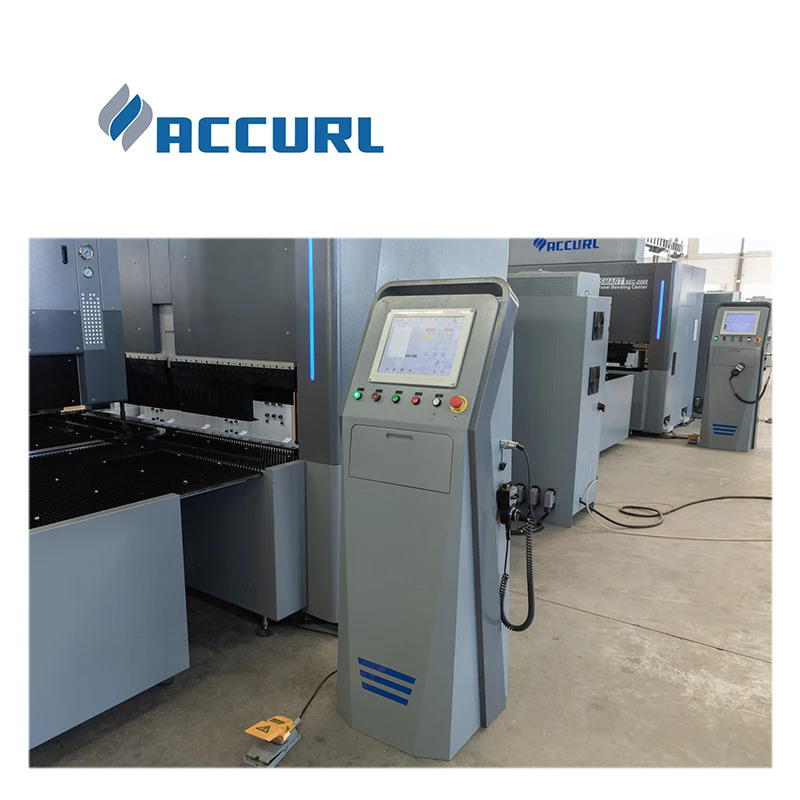

CONTROLLING SYSTEM

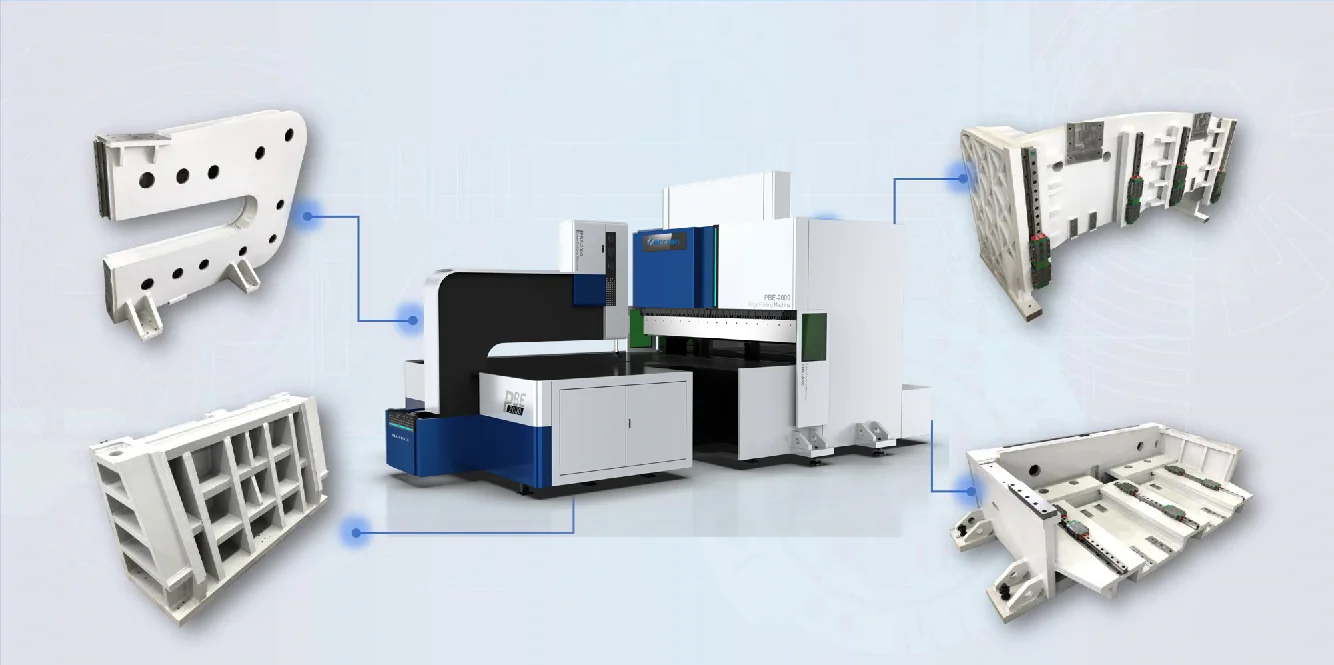

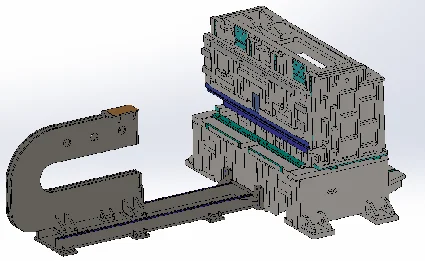

In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened.

The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the machine.

Name	Unit	BCE-1400	BCE-2000	BCE-2500
Max. Bending Length	mm	1400	2000	2500
Max. Sheet Width	mm	1400	1500	1500
Max. Bending Height	mm	170	170	170
Min. Workpiece Size four sides bending	mm	110×200	110×200	110×200
Min. Workpiece Size single side bending	mm	110	110	110
Min. Radius	mm	1.2	1.2	1.2
Bending Angle	°	±180	±180	±180
Max. Bending Speed	s/bending	0.5	0.5	0.5
Min. Sheet Thickness	mm	0.35	0.35	0.35
Dimensions（L×W×H）	mm	3000x2000x2600	3100x5300x2600	3100x6050x2600
Full Power	KW	36	45	45
Working Voltage	V	380V±10%	380V±10%	380V±10%

AST TOOLS FOR SPECIAL APPLICATIONS

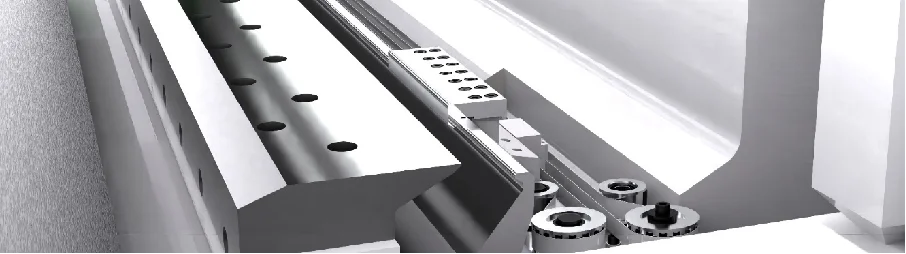

The AST tools are modular in length, engaging and disengaging quickly and automatically between the blank and the bending blades. They are used to make bends that are shorter than the side being bent.

Universal Tooling

The Flexible Panel Bender bends the sheet metal with one universal tooling, able to bend various complex shapes. It can fold 90 angle, non 90 angle, circular ARC, positive/negative and other complex shapes, now days flexible panel bender become more and more popular in the metal forming field of different industries and different workpieces.

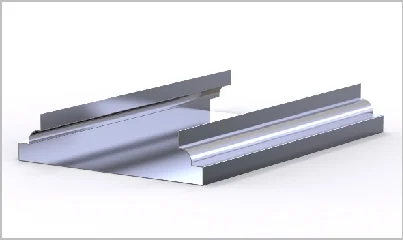

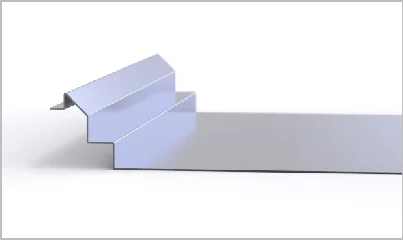

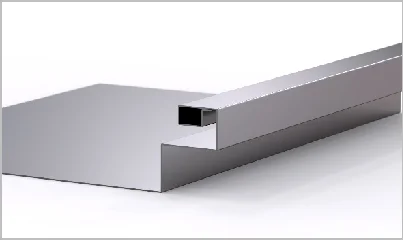

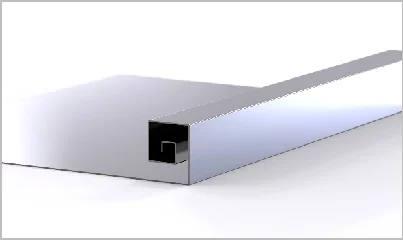

Here listed some typical applications:
