Description
ACCURL CNC Hydraulic Guillotine Shear MS8-6x3200mm with Pneumatic Sheet Support System
Excellent cut, Perfect speed:
ACCURL CNC MS8 Hydraulic Guillotine Shear can cut all kind of metal sheet to maintain the highest production capacity with maximum precision and quality.
More than just cutting;
CNC MS8 is developed by expert engineers of ACCURL reflects innovative technology with all aspects of it.
Standard Equipment:
- Wear resistant blades for Top blade4 cutting edge and Bottom blade4 cutting edge
- Portable foot pedal is eligible for single and automatic cutting.
- CNC controlled hydraulic blade gap adjustment system.
- CNC controlled cutting angle adjustment system.
- DELEM DAC360sCNC controller System

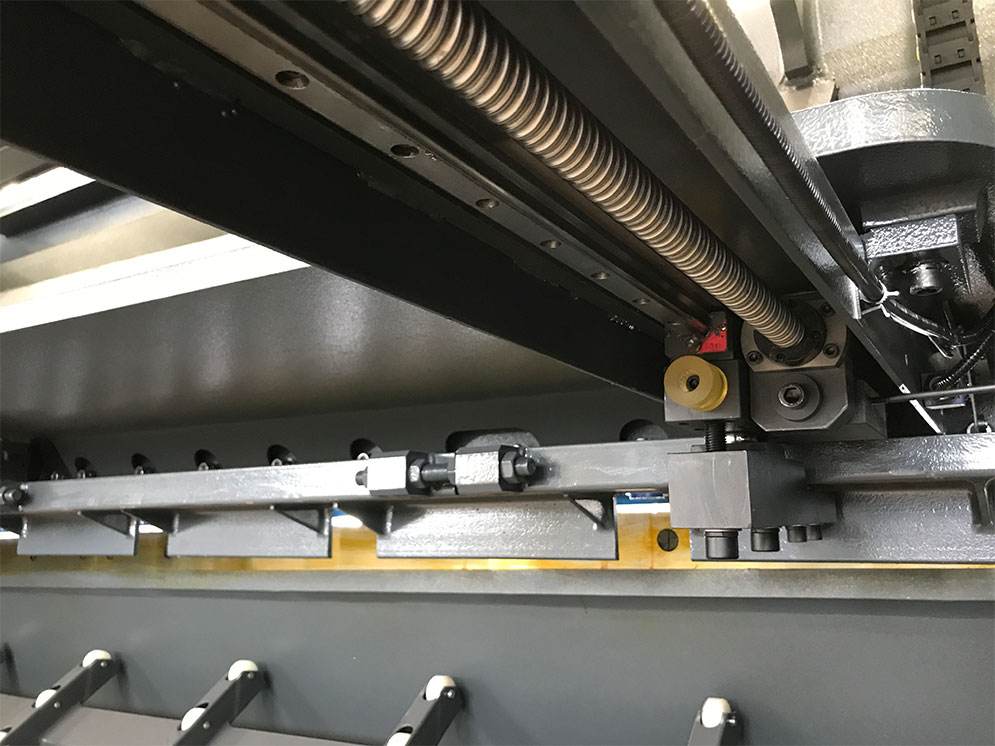

- CNC controlled motorized backgauge system.
- 1000 mm motorized back gauge system with 0.1 mm accuracy.
- Front support arms with T slot, ruler and flip stop.
- Squaring arm.
- Scales with metric and inches.
- Cutting line illumination and shadow line.
- Central lubrication system.
- Front finger protection guard appropriate to CE norms, 1 m left side collapsible and switch protected.
- Rear sliding plates.
- Front sliding plates with ball bearings on the table.
Better Cuttings:
- Backgauge adjustment according to blade gap.
- .Backgauge retraction feature.
- Sub-program and programming loop.
- .Sequence repeat function.
- Automatic calculations of cutting functions upon material specifications.
- More cutting sequence and programming memory.
Technical Specifications
| Model: | ACCURL MS8-6×3200 (3200m x 6mm) |
| DELEM CNC Control | Blade Gap + Rake Angle + CNC Back Gauge |
| Cutting Capacity | 6mm Carbon Steel & 4mm Stainless steel |
| Cutting Length | 3200 mm |
| Rake Angle | 0.5°~2.5° |
| Throat Depth | 130 mm |
| Working table height | 860mm |
| Blades Length | 3300mm |
| Stroke Per Minute | 12~25/min |
| Holddowns | 17PCS |
| Back Gauge Range | 800mm |
| Motor Power | 7.5KW |
| Oil Tank Capacity | 320Lts |
| Overall dimensions | 4200x2050x2250mm |
| Machine weight | 8950 Kgs |
