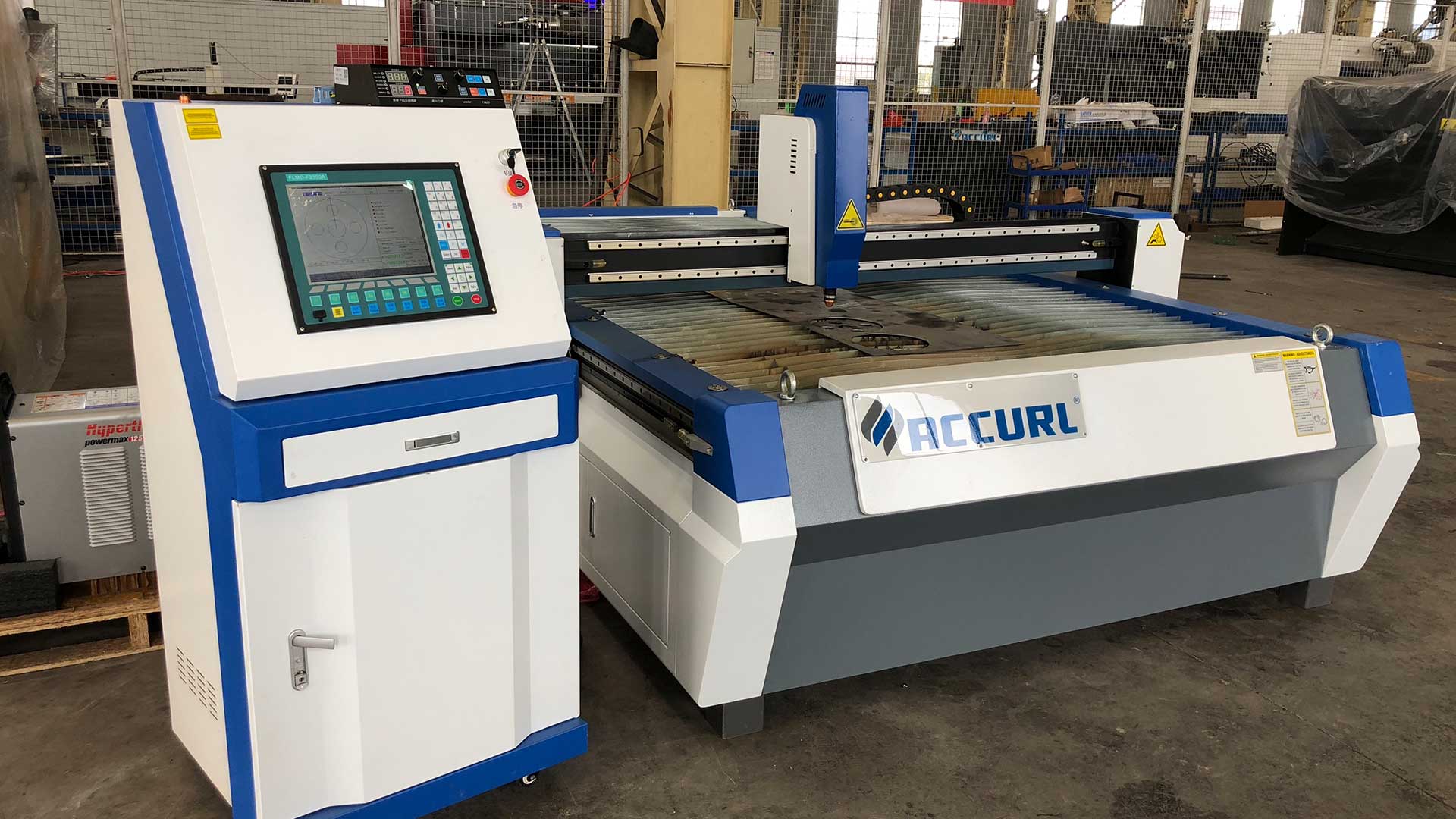

ACCURL CNC Plasma Cutter Machine for Sheet Metal Cutting

The ACCURL® High-quality Plasma cutting machine provides superior performance at an entry-level price. Through its best-in-class motion, unitized design, and compact footprint the CPL brings speed and productivity to shops of all sizes.

REQUEST INFORMATION

Description

The ACCURL® High-quality Plasma cutting machine provides superior performance at an entry-level price. Through its best-in-class motion, unitized design, and compact footprint the CPL brings speed and productivity to shops of all sizes.

The ACCURL® CNC Plasma Cutting Machine with Powermax125 Plasma Cutter is an extremely powerful, high performance unit, ready for even the most demanding cutting and gouging.

CLP Features:

Industrial Cutting Machine

  • Modular design for quick installation to get you cutting faster.
  • Full factory assembled or on-site customer assembled option
  • Standard open bottom table; water tray and zoned duct optional
  • Plug and cut controls

Durable Performance

  • Heavy duty components will deliver years of dependable service.
  • Robust-tube frame construction with 12mm hardened bearing shafts
  • Fully enclosed cable power track
  • Powder coated metal surfaces

High Powered Flexibility

  • Small operations can harness the power of high-grade industry functionality.
  • Standard high-reliability motion package
  • Upgradable to faster speed and high-definition plasma options as your business grows
  • Easy-to-operate software control interface and intuitive CAD/CAM drawing/nesting tools
  • Optional :Hypertherm Hydefinition Plasma HPR130XD ,HPR260XD, HPR400XD, HPR800XD
  • According to the working conditions cooling fan or heater can be add to the electrical panel
  • Conformity of European Union CE

PowerMax Plasma Selections Working Data:

Powermax65 Powermax85 Powermax105 Powermax125
Mild steel cut capacity
Dross free 6 mm 8 10 12
Production pierce 16 mm 20 22 36
Maximum cutting capacity 32 mm 38 50 80
Stainless steel cut capacity
Production pierce 12 mm 16 16 20
Maximum cutting capacity 25 mm 30 30 40
Aluminum cut capacity
Production pierce 12 mm 16 16 18
Maximum cutting capacity 25 mm 30 30 40








*ACCURL offers consumables, parts and Hypertherm materials at very competitive prices.
*** Note: As products are constantly updated, please contact us for latest specifications. ***

Technical Specifications

Type Cutting Width mm Cutting Length mm
CPL- 1225 1250 2500
CPL- 1530 1500 3000
CPL- 1540 1500 4000
CPL- 2040 2000 4000
CPL- 2540 2500 4000
