Name: ACCURL Metal Laser Welding Machine Best Price 3mm Aluminum Laser Welder With Automatic Cleaning System
Brand: ACCURL
SKU: 1600945155507
Price: 7050 USD

Specifications

power(w)	1000W
model number	SMART HLW-1000

Description

Details

https://gv.videocdn.alibaba.com/4f4e1c368ac918af/8f8190606bf6c1de/20230913_24ea9e819974d54d_427009724278_mp4_264_hd_unlimit_taobao.mp4

condition : New
Output Power : 1000
usage : laser welding machine
place of origin : Anhui, China
brand name : Accurl
single pulse energy : 90J
pulse width : 15m
Wavelength : 1080+3mm
focal spot diameter : 0.02mm
dimensions : 483*191*740mm
warranty : 2 years
laser source brand : IPG
laser head brand : Raytools
servo motor brand : Siemens
guiderail brand : HIWIN
control system brand : Cypcut
weight kg : 200 KG
key selling points : High Rigidity
Usage : welding
Max. Output Power : 1000w
Laser type : Fiber Laser Source
Product name : Handheld laser welding machine
welding gap : ≤1/5 of the thickness of sheet metal
Total power : 6kw
Welding speed range : 0-120mm/s
Electromechanical : 380V/50HZ
Application : welding metal
fiber length : standard 15m, Max 30m
Applicable Industries : hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works
Machinery Test Report : Provided
Video outgoing-inspection : Provided
Marketing Type : Hot Product 2019
Warranty of core components : 2 years
Core Components : motor, Bearing

Product Description

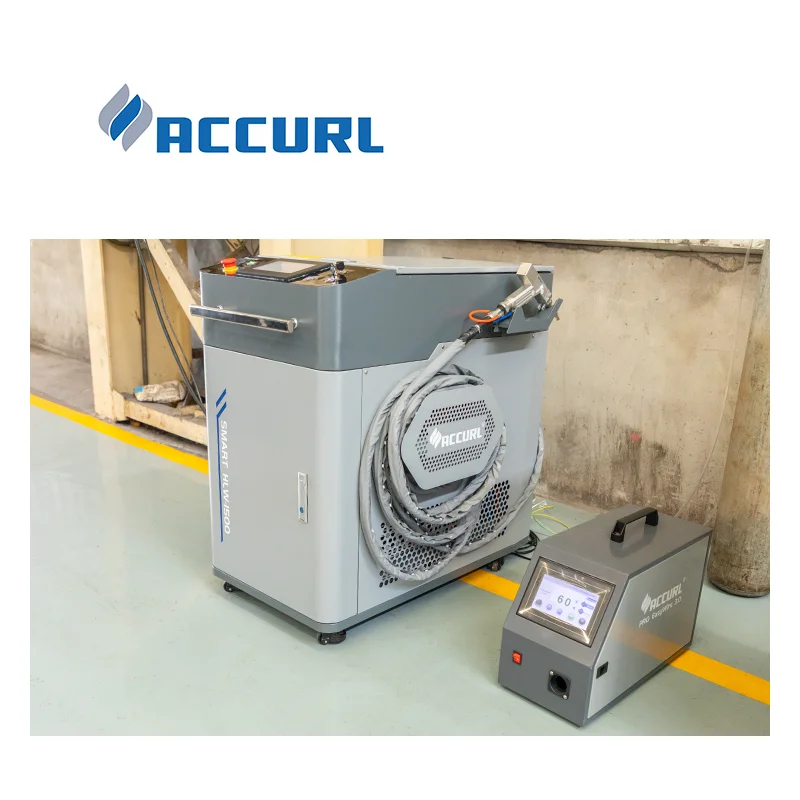

SMART®HLW-1000Laser Welding Machine

The Laser welding power up to 3000 W is easily adjusted with intuitive controls to quickly dial in optimum weld settings for various materials and thicknesses. With up to 74 stored preset and user-defined process parameters, novice welders can be trained and welding in a matter of hours.

•Handheld fiber laser welding machine has the best fiber laser beam for fast welding speed, high quality weld seam and no consumables.

Product Specification

PERSONAL SAFETY PROTECTION:

The laser output is 1070nm which belongs to invisible class IV laser. During the working of laser, it requires to carry out the whole body protection.

•Operators must wear all recommended personal protective equipment PPE, including laser protective glasses and masks equipped with laser protective function, laser-resistant and heat-resistant gloves, hats, leather aprons and other laser-resistant and heat-resistant clothing

LASER SAFETY:

•International safety standardsEMC Test StandardEN55011: 2009 + A1: 2010CISPR 11: 2015•EMC Immunity StandardIEC 6132601: 2012EN61326-1: 2013•Electrical safety standardsEN 61010-1: 2010•Laser safety standardEN68025-1: 2014CDRH 21 CFR 1040.10

HANDHELD LASER WELDING TECHNOLOGY:

Easy to Learn & Operate • Simple & Fast to Set Up • Consistent High-Quality Results•SMART HLW handheld laser welding and cleaning systems are fast, easy to learn and operate, and produce high quality, consistent results across a wide range of materials and thicknesses. Pre-weld and post-weld laser cleaning functionality optimizes weld quality while increasing productivity.

HANDHELD LASER WELDING & CLEANING SYSTEM:

•SMART HLW enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.

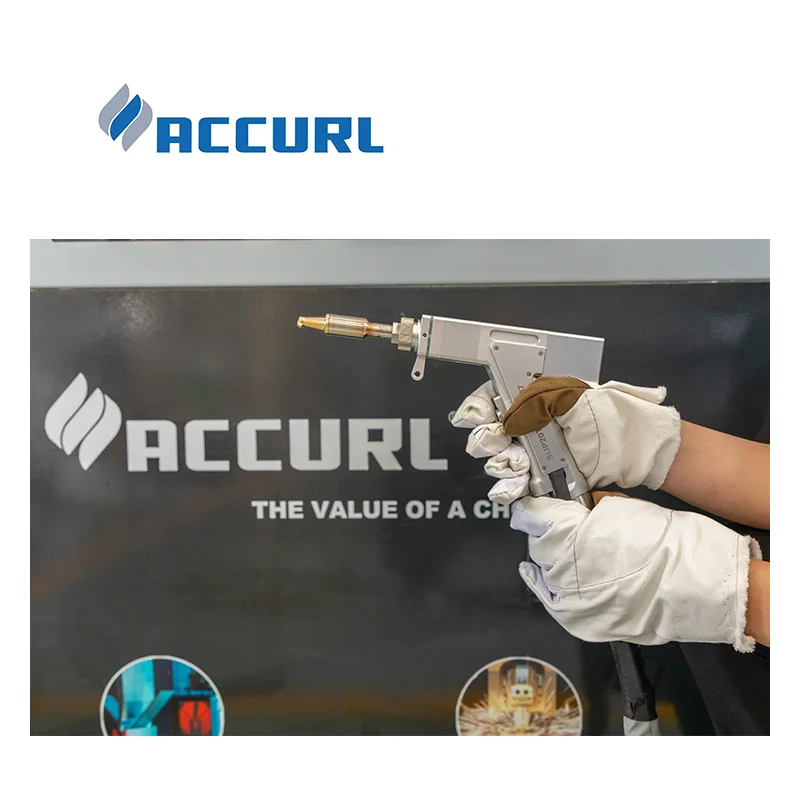

ACCURL PRO SWING LASER HEAD:

•The ACCURL laser welding machine is equipped with a modern welding head with a moving beam and a swinging electrical system. It has a patented mechanism to drive the focusing lens, allowing you to automatically change its position, thereby changing the width of the beam.

PARAMETERS:

MODEL NUMBER	SMART – HLW
Conduction type	fiber
Laser wave length	1080nm
Laser Power	1000W / 1500W / 2000W
Frequency	20-5KHz
welding head weight	Approximately 760g
Output focal length	120mm
Cooling method	Water cooling
Fiber length	5M/10M/15M
Port	1 way gas
Power consumption	≤6KW
welding wire model	0.8-1.6mm
Air pressure requirement	4-6Bar Select nitrogen,argon or compressed air according to process requirements.
Electricity demand	1KW/1.5KW-AC220V/50/60Hz

LASER WELDING IS EASY TO OPERATE:

•Compared with traditional welding machines, 0 experienced operators can work on duty for one day of practice•Built-in parameters ensure high-quality results•Create highly aesthetic seams and weld parts with poor fit up•Simple controls allow new welders to be trained within hours & experienced welders realize an immediate increase in productivity

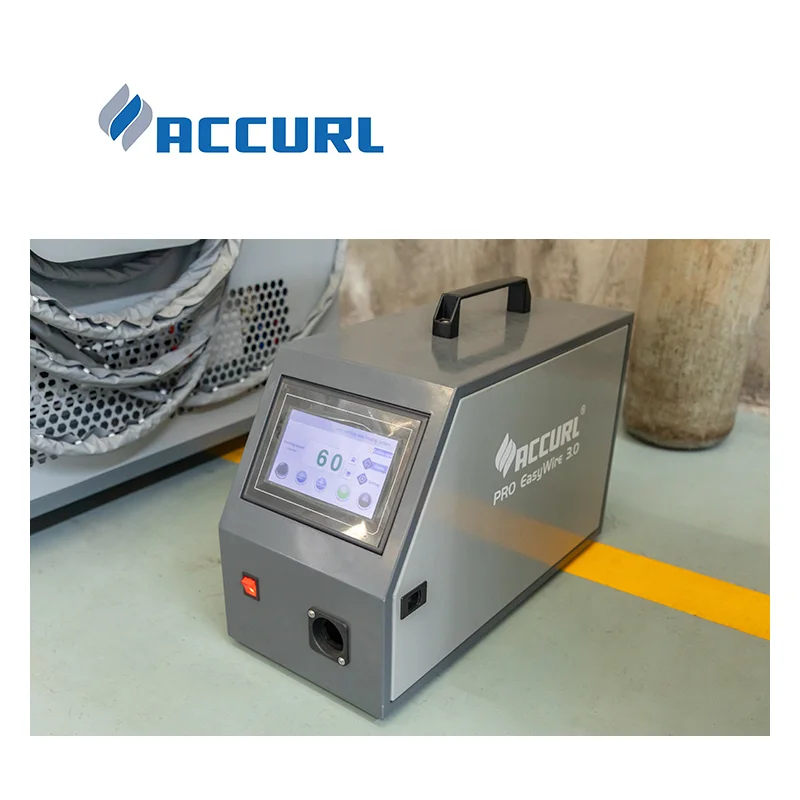

ACCURL EASYWIRE AUTOMATIC WIRE FEEDER

•ACCURL is equipped with a fully automatic wire feeder and is integrated with welding software. The system allows you to work at a thickness of 0.8-1.6mm in “push” or “pull” mode.
