Description
The IPG 6 Watt Fiber Laser cutting machines with ECO-FIBER-2060 achieve cutting speeds of up to 150 m/min and acceleration of nearly 2.5G; they guarantee the best quality, precision and efficiency. The steel laser cutting machines are available with 1kw to 12 kW fiber lasers. Machine includes High speed, heavy-duty motion system. This reduces processing time as much as 50%. Our 6Kw fiber laser cuts Aluminum, Stainless Steels, Carbon Steels.
| Cutting speed: | Max 150 m/min |
| Positioning: | 180 m/min |
| Accelerations: | 2.5G |

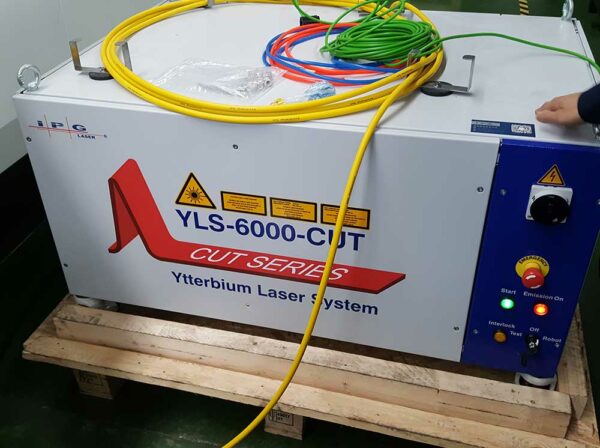

| Laser sources: | IPG YLS-6000W Ytterbium Laser Resonator |
New Generation 6kw Fiber Laser Cutter Technology:
- Low operating cost and energy consumption
- Globally recognized high performance components
- Precise cuts and high durability
- High profit margin
- Perfect results on variety of material
- Efficient and precise cuts on thick and thin material
Standard Equipments
- Germany BECKHOFF CNC Controller
- IPG YLS-6000W Ytterbium Laser Resonator
- Advanced PRECITEC cutting head (with air cross blast)
- Automatic Double Pallet Changer (Shuttle Table)
- Precision Rack & Pinion Drive System (Made in Germany)
- Radan or Lantek CAD/CAM system
- Light source
- Chiller
- 3 lower protective lenses
- Operates with both N2 and O2 (cutting) gases
- Home Position Alignment System
- Auxiliary Gas Selector
- Auto Reflection Warning
- Working Lights
- 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
Optional Equipments
- Automatic beam centering system.
- Linear motor technology
- Laser Safety Barrier
- Precitec cutting head
- Automatic sheet metal loading and unloading system.
- Compressor
- 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW – 12KW Laser power options available.
Maximum cutting thickness:
| AVAILABLE LASER SOURCES | 1kW | 1.5KW | 2kW | 3kW | 4kW | 6kW | |||
| carbon steel | [mm] | 10 | 14 | 16 | 20 | 20 | 30* | ||
| stainless steel | [mm] | 4 | 6 | 10 | 15 | 20 | 30* | ||
| aluminium | [mm] | 2 | 4 | 6 | 12 | 15 | 30* | ||
| brass | [mm] | 2 | 3 | 4 | 6 | 8 | 12 | ||
| copper | [mm] | 1,5 | 2 | 4 | 6 | 6 | 10 | ||
| * The values obtained in conditions depending on the quality of the workpiece, cutting gas quality, quality of service and the NC program. | |||||||||
Specification:
| Model | [um] | ECO-FIBER-1530 | ECO-FIBER-2040 | ECO-FIBER-6020 |
| lenght | [mm] | 8900 | 10500 | 14500 |
| width | [mm] | 2320 | 2920 | 2920 |
| height | [mm] | 2150 | 2150 | 2150 |
| weight | [kg] | 15000 | 19000 | 26000 |
| X axis | [mm] | 3060 | 4060 | 6160 |
| Y axis | [mm] | 1540 | 2040 | 2040 |
| Z axis | [mm] | 120 | 120 | 120 |
| max. sheet weight | [kg] | 900 | 1500 | 2500 |
| Max. Speeds | |
| paralel to X,Y,Z axis | 150 [m/min] |
| simultaneously | 180 [m/min] |
| Axis parameters | |
| repeatability | 0,03 [mm] |
| cutting precision | 0,1 [mm] |
| accelerations | 30 [m/s2] |
| min. programmable measurmentpath | 0,001 [mm] |
