First 12kw Fiber Laser Cutting Machine for Thick Plates More Than 3x Faster Than 6kW High Power Aluminum Fiber Laser Cutter

The IPG 12Kw Fiber Laser cutting machines with ECO-FIBER-2060 achieve cutting speeds of up to 150 m/min and acceleration of nearly 2.5G; they guarantee the best quality, precision and efficiency.

REQUEST INFORMATION

Description
First 12kw Fiber Laser Cutting Machine for Thick Plates More Than 3 x Faster Than 6kW High Power Aluminum Fiber Laser Cutter
The IPG 12Kw Fiber Laser cutting machines with ECO-FIBER-2060 achieve cutting speeds of up to 150 m/min and acceleration of nearly 2.5G; they guarantee the best quality, precision and efficiency. The steel laser cutting machines are available with 1kw to 12 kW fiber lasers. Machine includes High speed, heavy-duty motion system. This reduces processing time as much as 50%. Our 6Kw fiber laser cuts Aluminum, Stainless Steels, Carbon Steels.

The 12Kw fiber laser cutter ECO-FIBER-2060 Equipped with unique INTELLIGENT SET-UP FUNCTIONS including Auto Nozzle Changing and Auto Focus Positioning as well as INTELLIGENT MONITORING FUNCTIONS.

Cutting speed: Max 150 m/min
Positioning: 180 m/min
Accelerations: 2.5G
Laser sources: IPG YLS-12000W Ytterbium Laser Resonator

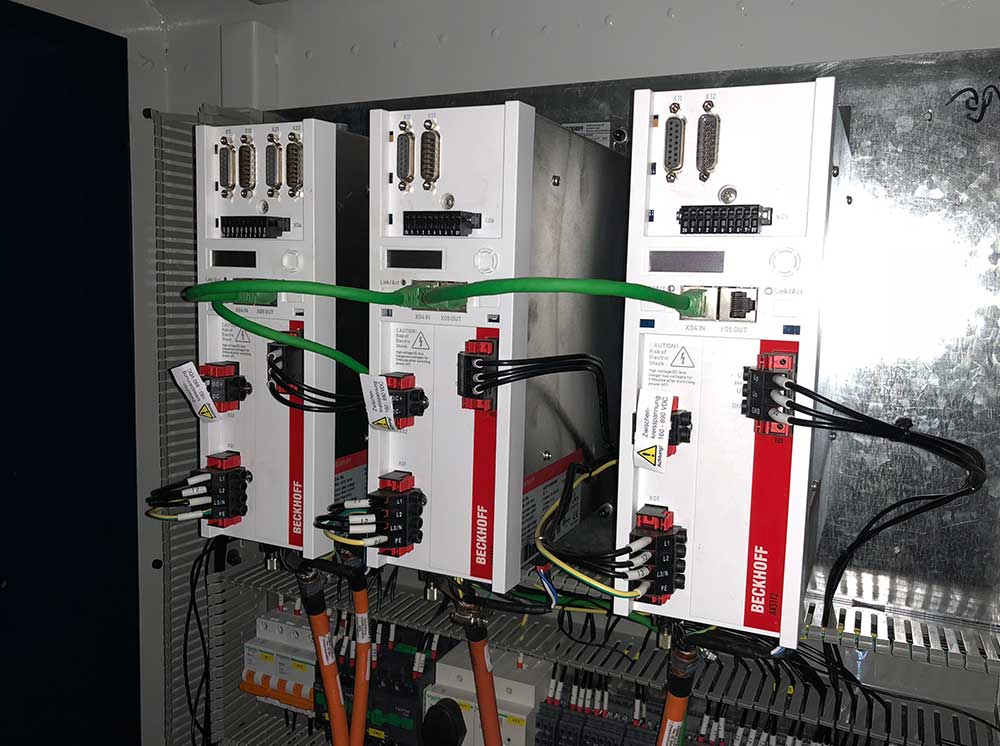

BECKHOFF CNC Controller – standard equipment for Optimum cutting with high-speed and high-accuracy can be performed by automatic setup-effective for both thin worksheets and thick plates.

The 12kw fiber source and optics chain developed by IPG generate a high power density laser beam which allows high-speed cutting (up to 180 m/min) on medium and thin materials, without sacrificing high quality when cutting thicker material

Fiber Lasers provide innovative solutions:

  1. Perfect results on variety of material
  2. Efficient and precise cuts on thick and thin material
  3. Low investment and operating costs
  4. Modern and compact design
  5. Fast service with remote control

Standard Equipments

  • Germany BECKHOFF CNC Controller
  • IPG YLS-12000W Ytterbium Laser Resonator
  • LaserMech FiberCut 2D Head cutting head
  • Automatic Double Pallet Changer (Shuttle Table)
  • Precision Rack & Pinion Drive System (Made in Germany)
  • Radan or Lantek CAD/CAM system
  • Light source
  • Chiller
  • 3 lower protective lenses
  • Operates with both N2 and O2 (cutting) gases
  • Home Position Alignment System
  • Auxiliary Gas Selector
  • Auto Reflection Warning
  • Working Lights
  • 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Optional Equipments

  • Automatic beam centering system.
  • Linear motor technology
  • Laser Safety Barrier

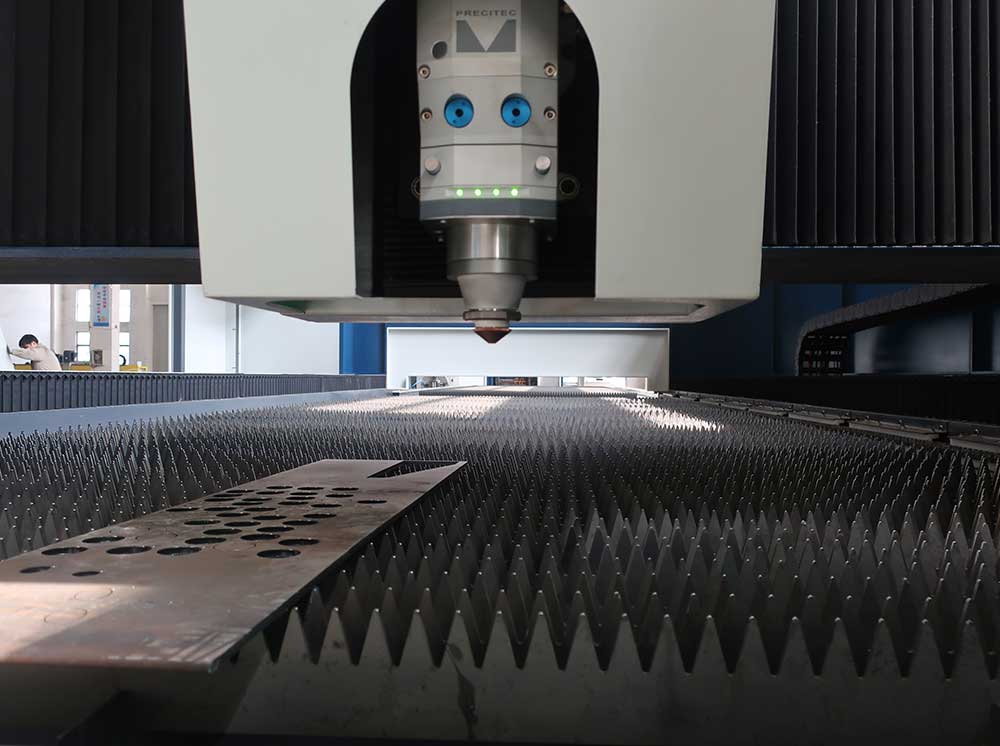

  • Precitec cutting head
  • Automatic sheet metal loading and unloading system.
  • Compressor
  • 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW – 12KW Laser power options available.

Maximum cutting thickness:



available laser sources (1,07μm) 3kW 4kW 5kW 6kW 8kW 10kW 12kW
carbon steel [mm] 20 20 25 30* 40* 50* 60*
stainless steel [mm] 15 20 25 30* 40* 50* 60*
aluminium [mm] 12 15 20 30* 35* 40* 50*
brass [mm] 6 8 10 12 15 20 30*
cooper [mm] 6 6 8 10 15 20 25

* values achieved in conditions dependent on the quality of the material processed, the quality of the cutting gases, the quality of service and the NC program, and the state of the spare parts



Specification:



Model [um] ECO-FIBER-1530 ECO-FIBER-2040 ECO-FIBER-6020
lenght [mm] 8900 10500 14500
width [mm] 2320 2920 2920
height [mm] 2150 2150 2150
weight [kg] 15000 19000 26000
X axis [mm] 3060 4060 6160
Y axis [mm] 1540 2040 2040
Z axis [mm] 120 120 120
max. sheet weight [kg] 900 1500 2500



Max. Speeds
paralel to X,Y,Z axis 150 [m/min]
simultaneously 180 [m/min]
Axis parameters
repeatability 0,03 [mm]
cutting precision 0,1 [mm]
accelerations 30 [m/s2]
min. programmable measurmentpath 0,001 [mm]
