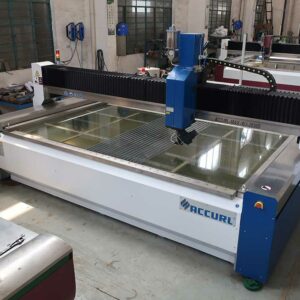

ACCURL 3D Waterjet Cutting Machine with 5 Axis Waterjet CNC Cutting price for sale

The ACCURL® Go beyond cutting bevels on flat stock – 5-Axis water jet cutting opens up 3‑dimensional cutting abilities at angles from 0° to 90°.and will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass, Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium. using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 8″.

REQUEST INFORMATION

Description

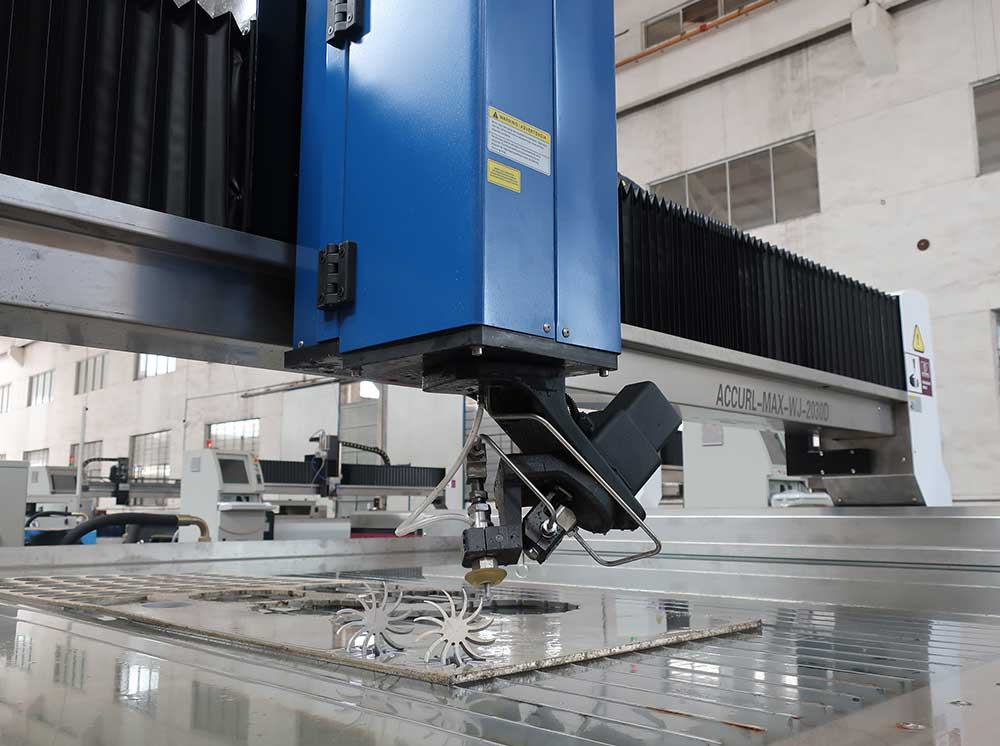

Perfect 5-Axis Waterjet Cutting:

The ACCURL® Go beyond cutting bevels on flat stock – 5-Axis water jet cutting opens up 3‑dimensional cutting abilities at angles from 0° to 90°.and will cut material such as Aluminum, Armor Plate, Brass, Carpet, Copper, Glass, Granite, Leather, Marble, Mild Steel, Plastic, Stainless Steel, Stone, Tile, Titanium. using the water jet high-pressure cutting process to cut material thicknesses from gauge up to 8″.

Feature:

  • Precision X-Y Axis rigidly mounted to the cutting table
  • No Heat-Affected Zone
  • No Mechanical Stresses
  • Easy installation
  • Very Narrow Kerf
  • No need for Secondary Operations
  • Smooth Surface
  • Can Cut Various Materials
  • Can Process Extremely Detailed Parts
  • Minimal loss of material
  • Environmentally Friendly
  • CE safety specifications
  • Fastest cutting speeds and best precision compared to any abrasivejet in the industry and is backed by our exclusive WEIHONG ® Software with real world cutting data
  • High efficiency USA Hypertherm pump systems available with operating efficiencies up to 90%.

CNC CONTROL SYSTEM:

  • 17”LCD liquid crystal display
  • DNC on-line working function
  • Functions of returning arbitrary point, bending, .
  • Function of cutting figure imitation display.
  • 80GB memory hard disk
  • MITSUBISHI AC servo driver and motor.
  • 1GB memory card
  • Multilingual function(Chinese English ,etc.,)
  • Drive-by-wire and hand-hold controller,(according to requests)



Technical Specifications

Model (ACCURL) MAX-WJ-2030 MAX-WJ-2040
X-Axis Cutting Stroke mm (in) 2032 (80″) 2032 (80″)
Y-Axis Cutting Stroke mm (in) 3048 (120″) 4064 (160″)
Z-Axis Stroke mm (in) 203.2 (8″) 203.2 (8″)
Footprint Width mm (in) 4540 (179″) 5540 (218″)
Footprint Length mm (in) 2820 (111″) 2820 (111″)
Accuracy mm (in) 0.05 (0.002″) 0.05 (0.002″)
Repeat-ability mm (in) ±0.025 (±0.001″) ±0.025 (±0.001″)
Drivers AC Servo Motors AC Servo Motors
Motion for X-Axis Ball Screw Ball Screw
Motion for Y-Axis Ball Screw Ball Screw
