ACCURL 5-Axis Waterjet Cutting Machine

The ACCURL MAX-WJCNC waterjet cutting series is an addition to AccurlMAX-WJCNC waterjet cutting machine line. It provides a vigorous industrial design and rigid construction that combines precision and simplicity.

REQUEST INFORMATION

Description

The ACCURL MAX-WJCNC waterjet cutting series is an addition to AccurlMAX-WJCNC waterjet cutting machine line. It provides a vigorous industrial design and rigid construction that combines precision and simplicity. The MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ waterjet cutting series provides a vigorous industrial design and rigid construction that combines precision and simplicity. The MAX-WJ model is made to handle high production for versatile applications. The MAX-WJ models come in two distinct sizes for the most common applications.

Technical Specifications:

  • Structure: Bridge Style

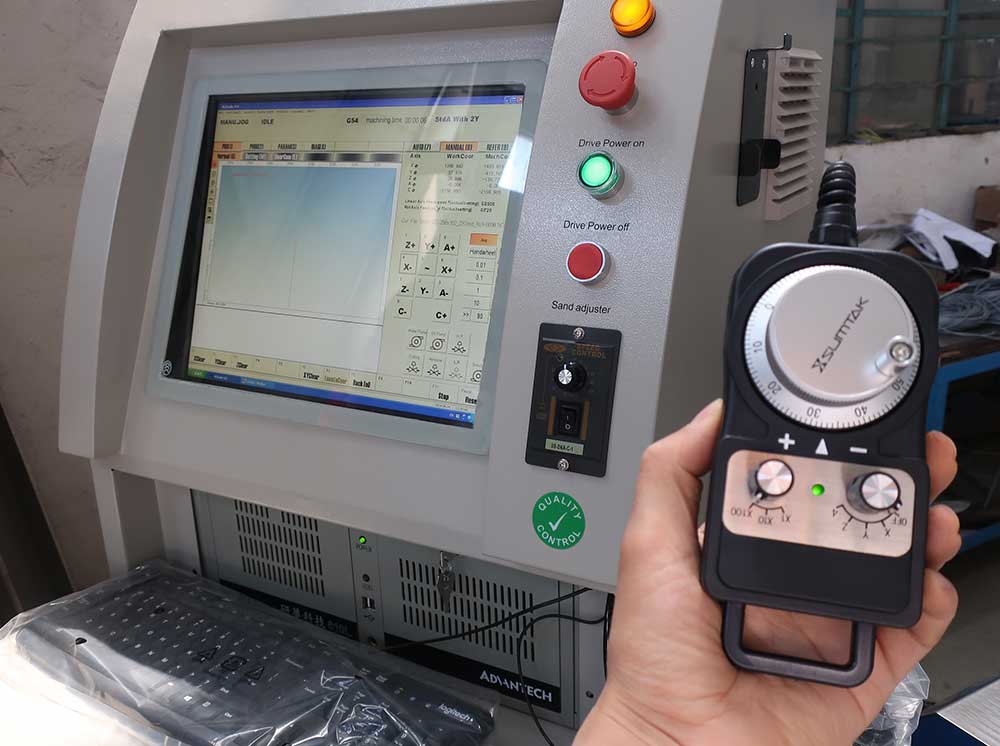

  • Control System: CNC(Professional Waterjet Control System)
  • Way of Drive: AC Servo
  • Power Supply: AC 220V 50Hz/60Hz
  • Max.Loading Capacity: 1500kg/m2
  • Max.Processing Size: 2m^12m
  • Max.Moving speed: 12m/min

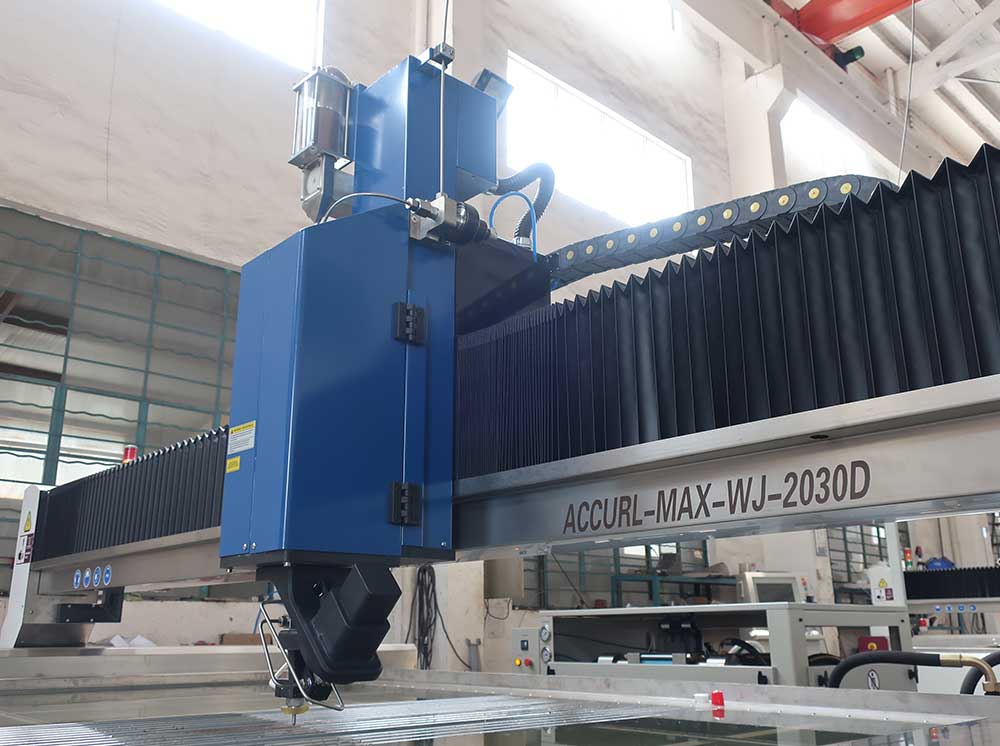

On the basis of traditional bridge style cutting machine, we developed High Frame Bridge Style Cutting Table. It allows we to process extra thick material like stone or metal.

System Parameters:

  • Control Accuracy: 0.01mm
  • Positioning Accuracy: +/-0.016mm/1000mm
  • Repeatable Positioning Accuracy: +/-0.01mm/1000mm
  • X-Axis Max.Moving Speed: 6m/min
  • Y-Axis Max.Moving Speed: 6m/min
  • Z-Axis Max.Moving Speed: 1m/min

Technical Specifications

Model (ACCURL) MAX-WJ-2030 MAX-WJ-2040
X-Axis Cutting Stroke mm (in) 2032 (80″) 2032 (80″)
Y-Axis Cutting Stroke mm (in) 3048 (120″) 4064 (160″)
Z-Axis Stroke mm (in) 203.2 (8″) 203.2 (8″)
Footprint Width mm (in) 4540 (179″) 5540 (218″)
Footprint Length mm (in) 2820 (111″) 2820 (111″)
Accuracy mm (in) 0.05 (0.002″) 0.05 (0.002″)
Repeat-ability mm (in) ±0.025 (±0.001″) ±0.025 (±0.001″)
Drivers AC Servo Motors AC Servo Motors
Motion for X-Axis Ball Screw Ball Screw
Motion for Y-Axis Ball Screw Ball Screw
