The accuracy of a press brake is really important because even tiny mistakes can cause big problems or waste.
Several things affect how accurate a press brake is: the quality of the machine, the tools it uses, the type of metal, how skilled the operator is, and keeping the machine well-maintained. Even though technology has gotten better, allowing for very precise bends, it’s still essential to regularly check these machines.
We need to follow certain standards, like GB/T14349-2011, to make sure the press brake is working correctly, not just by looking at it but by checking its actual performance.
In this article, we’ll explore what makes a press brake bending accurate and share tips on keeping it precise.
What Is Press Brake Accuracy?
Press brake accuracy refers to the closeness of the formed angle and dimensions to their intended specifications.
This accuracy encompasses not only the final bend angle but also the repeatability across multiple runs, the precise positioning of the bend, and the uniformity of the bend radius and shape.
Enhanced accuracy reduces scrap rates and ensures reliable fits during assembly, crucial for efficient manufacturing workflows.
2 the key elements impacting press brake accuracy include:
- Machine Parameters: Factors like ram alignment, back-gauge accuracy, and tonnage control are vital for precise bending.
- External Influences: Material springback and tooling wear also play significant roles in how accurately a press brake performs its functions.
How Accurate а Press Brake is?
In practice, press brake accuracy typically achieves an average tolerance of ±0.5° in bend angle and ±0.1–0.2 mm in linear positioning when properly maintained.
This standard of precision ensures that press brakes operate effectively within the varied demands of metal fabrication.
External factors such as material thickness variation, machine calibration, and operator consistency play critical roles in maintaining these tolerances.
Under optimal conditions, CNC press brakes demonstrate exceptional positioning accuracy, often within a few thousandths of an inch (0.001″–0.004″).
Other information that can help you achieve accuracy better;
- Table Flatness: Errors in table flatness, like a longitudinal deviation of 0.06 mm over a 3200 mm bed, can cause approximately 0.17° of angle variation, influencing both the angle and straightness of the finished product.
- Back-gauge Accuracy: Regular measurement of the machine’s back-gauge accuracy is essential, maintaining positioning within ±0.05 mm to ensure consistent production quality.
- Force Uniformity: Ensuring that the hydraulic system or servo motors provide uniform force along the entire length of the bend is crucial, especially for longer or larger parts, to prevent inaccuracies.
What is the Optimal Tolerance That Can Be Achieved?
Optimal tolerances for press brake operations can reach as tight as ±0.1–0.2°. Advanced CNC technology, high-quality tooling, and stable material properties contribute significantly to achieving these numbers.
High-end press brakes equipped with dynamic crowning, real-time feedback systems, and laser angle measurements can substantially diminish deviations, maintaining bend angle accuracy below ±0.1° under ideal conditions.
Below are 2 key enhancements for achieving optimal tolerance:
- Multi-axis Back Gauges: The integration of multi-axis back gauges and automated crowning systems helps minimize the effects of machine deflection, enhancing consistency across various part geometries.
- Angle-Measuring Sensors: Utilizing high-level angle-measuring sensors that provide real-time feedback allows for immediate adjustments in ram depth, pushing tolerances to the narrowest margins possible.
What is the Difference Between Precision and Accuracy?
In the context of press brakes, accuracy refers to how closely the bends adhere to the intended specifications, whereas precision denotes the ability to reproduce those bends consistently over time.
For instance, a press brake might be highly accurate with minimal deviation in bend angle (±0.2°), but if each part varies by ±0.5°, the machine’s precision is deemed lower.
Precision vs. Accuracy in Production:
- Consistency: High precision is vital for uniformity in mass production, ensuring that all components fit within specified tolerances.
- Data Logging: Monitoring and recording data for each bend helps in identifying trends and potential issues such as tooling wear or machine drift, which are crucial for maintaining both high accuracy and precision.
- Micro-Adjustments: Making fine adjustments to the bottom-dead-center positions by increments as small as 0.01 mm can significantly enhance both the accuracy and precision of the bending process, illustrating the critical balance between achieving targeted alignments and maintaining consistent performance across production runs.

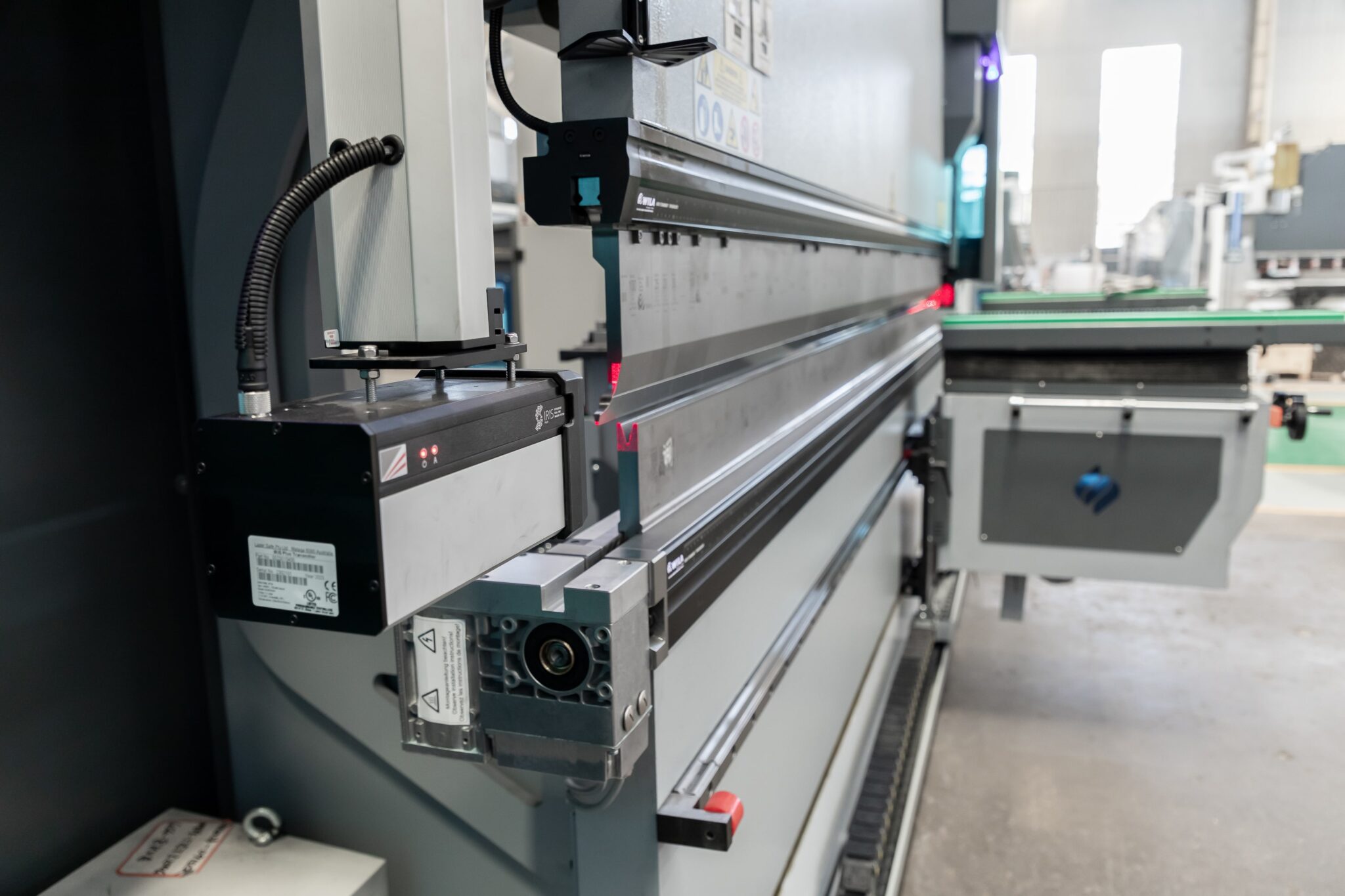

What are the Factors That Affect Press Brake Accuracy?
Accurately bending metal using press brakes involves five factors that can significantly influence the final product’s quality:
- Machine Quality and Maintenance: The overall condition of the press brake impacts its performance. Regular maintenance and proper calibration are crucial to ensure consistent accuracy.
- Tooling Quality: The condition and quality of tools, including dies and punches, directly affect bending accuracy. Worn or improperly maintained tooling can lead to inaccuracies.
- Material Properties: Variations in material thickness, strength, and composition can affect how the material reacts during bending. Consistent material properties ensure uniform results.
- Operator Skill: Skilled operators with a thorough understanding of the press brake machines and the bending process can significantly reduce errors due to improper machine setup or operation.
- Programming Accuracy: CNC press brakes rely on precise programming to achieve desired bends. Errors in input data can lead to significant deviations in output.
Typical Tolerance Ranges by Material
Different materials react uniquely under stress and can exhibit various bending tolerances:
- Aluminum: Due to its malleability, aluminum typically allows for tolerances ranging from ±0.5° to ±1°. Its elasticity necessitates careful handling to avoid over-bending.
- Carbon Steel: Thicker carbon steel can maintain tighter tolerances, often within ±0.3° to ±0.5°, thanks to its lower elasticity compared to aluminum.
- Stainless Steel: This material requires more force to bend, which can introduce deviations if not properly compensated for machine deflection.
Material Type
The type of material being bent plays a pivotal role in determining the required precision and the approach to achieving it:
- Yield Strength and Ductility: Materials with high yield strength, like high-tensile steel, may risk cracking if not handled correctly. Such materials need precise control over bend radii and tonnage.
- Elasticity: Softer materials like aluminum exhibit more significant springback, which must be compensated for during the bending process to achieve accurate angles.
- Variability in Material Properties: Variations from sheet to sheet can affect bending accuracy, highlighting the importance of calibration for each batch to ensure consistency.
Material Thickness
Material thickness plays a pivotal role in press brake accuracy. Variations even as slight as 0.1 mm can significantly affect the springback and, consequently, the final bend.
Thicker materials require more tonnage, leading to potential deflection of the press brake machine unless properly compensated for through technological means like crowning or real-time sensors. It’s crucial to measure the thickness of the material at various points before proceeding with the bending process to anticipate and correct any possible deviations.
The use of “test coupons” or samples from each batch of material allows operators to adjust machine settings for optimal performance based on actual material behavior, ensuring consistency across production runs.
Material Hardness and Strength
The hardness and strength of the material being bent also critically impact bending accuracy.
Harder materials resist deformation, necessitating higher tonnage for bending, which can strain the capabilities of the press brake if it is not adequately equipped or maintained.
Variations in hardness across a batch can lead to inconsistent bending angles. To manage this, industries often employ hardness testing techniques such as Rockwell or Brinell scales to predict and adjust for bending behaviors.
Additionally, materials with inconsistencies in microstructure may require specific adjustments or treatments like preheating to mitigate brittleness and improve consistency in the bending process.
Springback Effect
Springback is the tendency of metal to return to its original shape after bending, which varies by material type and properties such as yield strength, thickness, and the radius of the bend.
Managing springback is crucial for maintaining bending accuracy; techniques such as bottoming or coining are employed to minimize this effect by essentially “over-bending” the material to achieve the correct angle post-springback.
High-end press brakes equipped with advanced sensors can dynamically measure and compensate for springback in real-time during the bending process, greatly enhancing the accuracy and reducing the need for subsequent adjustments.
Grain Orientation
Bending parallel to the grain increases the risk of cracking or creating inconsistent angles, particularly in high-strength metals where the natural grain pattern can intensify springback variations.
For operations requiring tight bends or small radii, bending perpendicular to the grain direction is generally preferred to minimize potential issues like fracturing.
To maintain consistency in production and ensure the integrity of bends, many fabrication shops mark the rolling direction on each sheet of metal.
This practice helps operators align the sheet properly in the press brake, ensuring that critical bends are positioned to avoid the grain whenever possible.
For parts with small flanges that must be bent along the grain, operators are advised to proceed with extra caution to prevent splits or undesirable angle drift.
Furthermore, during the nesting phase of part design, it’s beneficial to rotate parts so that the most critical bends occur perpendicular to the grain direction.
Material Surface Coating
The presence of surface coatings on metal—such as paint, primer, or other treatments—adds another layer of complexity to press brake bending. These coatings can alter the friction between the tooling and the metal, impacting how the metal flows during the bend.
Excessive coating thickness or debris on the surface may lead to localized stress and indentation, which can change the final bend angle.
Proper preparation of the metal surface is crucial. Operators often need to clean the metal thoroughly and might even remove coatings along the bend line to decrease friction and prevent any damage to the tooling or the coating itself.
Residual Stresses
Residual stresses might cause the metal to warp or lead to unpredictable springback, which can significantly compromise bending accuracy.
For materials prone to these issues, especially thicker plates, manufacturers might use stress-relieving techniques such as annealing before the metal is worked on a press brake.
In practice, operators may find that large or thick plates, particularly those cut near welded seams, exhibit inconsistent behavior due to residual stress concentrations.
To manage this, performing trial bends or multiple passes can help distribute the stress more evenly, though this approach increases cycle time.
Flatness and Straightness of the Material
Minor curvatures or waviness in the sheet metal can result in significant distortions once bending forces are applied. This is especially true for larger parts, where deviations in flatness can lead to substantial inaccuracies over the length of the bend.
To mitigate these issues, it’s important to check and correct for flatness before the metal sheet is loaded into the press brake.
Techniques such as using leveling machines or manually verifying each blank can ensure that the material maintains uniform contact with the tooling, which is essential for achieving consistent bends.
If a sheet does not rest evenly on the die, minor misalignments could result in significant angular or dimensional errors, particularly over longer bends.
Precision of the Dies
Even minor imperfections, such as tiny chips or rounding at the edges of the die, can lead to noticeable angle deviations during the bending process.
Using high-quality, precision-ground dies is crucial as they help maintain consistent V-openings or radii, essential for reducing unexpected variations in the bending process.
The longevity of the tooling is also enhanced by opting for dies made from harder steels or those treated with specialized coatings, such as nitriding, which are less susceptible to wear.
Regular calibration checks, including measuring the die openings with feeler gauges or micrometers, ensure that the tools conform to the design specifications.
Additionally, attention must be paid to the die surfaces; any damage or unevenness can lead to inconsistent bends across the workpiece.
For high-tolerance jobs, maintaining a set of “master” dies in pristine condition, while using older dies for less critical tasks, helps balance tool wear with production needs.
Die Alignment
Even slight misalignments, measurable in fractions of a millimeter, can affect the uniformity of the bend across the length of the press brake.
Tools like laser-guided alignment devices or dial indicators are commonly used to check that the top punch and bottom die are perfectly parallel.
For larger or longer dies, it is essential to measure the gap at various points across the length to verify parallelism.
This helps in adjusting the crowning mechanisms that compensate for the natural deflection occurring along the length of the press brake during operation.
It’s also important to ensure that any quick-change tooling systems are securely locked in place. Incomplete seating of these systems can cause the punch or die to tilt, leading to uneven bends.
For manual press brakes, operators may need to perform alignment checks more frequently, particularly after any setup changes or when shifting die segments during different production runs.
Tool Wear and Tear
Dulling or chipped edges on punches and dies can lead to inconsistent angle formation, critical in high-volume bending environments.
Frequent inspection of tool edges is essential, as a worn punch tip can under-bend or produce burrs on the metal sheet’s surface, affecting the final product’s quality.
Regular regrinding or replacement of these tools ensures that tooling geometry remains precise, which is paramount for maintaining bending accuracy.
Even minor nicks in the die opening can result in small, yet noticeable, angle or dimensional differences. Measuring the punch tip radius after extensive production runs helps determine the necessity for regrinding.
V-Die Opening Size
Larger openings typically require less force, which can increase the amount of springback experienced. Conversely, a too-narrow opening for the material thickness can necessitate excessive force, risking cracking or heavy tool wear.
For precision bending, it’s recommended to use a die opening approximately eight times the thickness of the material, although adjustments may be needed based on specific material characteristics or design requirements.
Changes in the V-die dimensions without corresponding adjustments in the bending parameters can lead to unexpected changes in the bend angle.
Utilizing adjustable multi-V dies can be an efficient solution to handle varying material thicknesses while ensuring consistent bending results.
Tool Compatibility with Material
Certain tools are designed to resist wear better when bending abrasive materials like stainless steel. An incorrect match between tool and material can cause galling, scratching, or even bending failure.
Ensuring that the tool hardness and material thickness are compatible is key to extending tool life and achieving consistent bends.
Tools with hard coatings, such as nitrided or carbide-tipped punches, minimize friction and wear, particularly when bending tough metals.
Meanwhile, softer materials like aluminum may deform the tooling if the tool steel is not of sufficient quality or if excessive tonnage is used during the bending process.
Tooling Material Quality
High-grade tool steels that are heat-treated or coated are essential because they retain sharp edges longer and distribute bending stress more effectively. Using low-quality materials can lead to rapid deformation, losing dimensional accuracy which is vital in mass production settings where tolerance drift could significantly increase scrap rates.
Periodic metallurgical tests, such as hardness tests, are performed to ensure that tool steels meet the required specifications.
Inferior quality tool steel may crack or chip under heavy loads, posing risks not only to the part being manufactured but also to the safety of the operators.
Die Opening Geometry
The depth and shape of the V or U opening in the die must be tailored to the material thickness and the type of bend required. A deeper opening may prevent cracking in thicker materials, while a narrower opening is essential for achieving precise angles on thinner sheets.
Specialized die shapes like gooseneck or offset dies are designed to perform complex bends but require regular inspections to check for wear or distortion. Inconsistencies in the die opening due to uneven wear can cause variable bend angles across the length of the die.
Tool Wear Patterns
Uneven wear, often a result of repeated bending in the same die area, can be mitigated by periodically rotating or flipping the die to balance the wear. Advanced analytical techniques and regular inspections can identify wear hotspots early, which allows for proactive maintenance strategies.
In setups where smaller parts are frequently processed at the machine’s ends, localized die wear becomes more pronounced. Employing multiple die segments rather than a single long die can help distribute the stress and wear more evenly, maintaining consistency in bending operations.

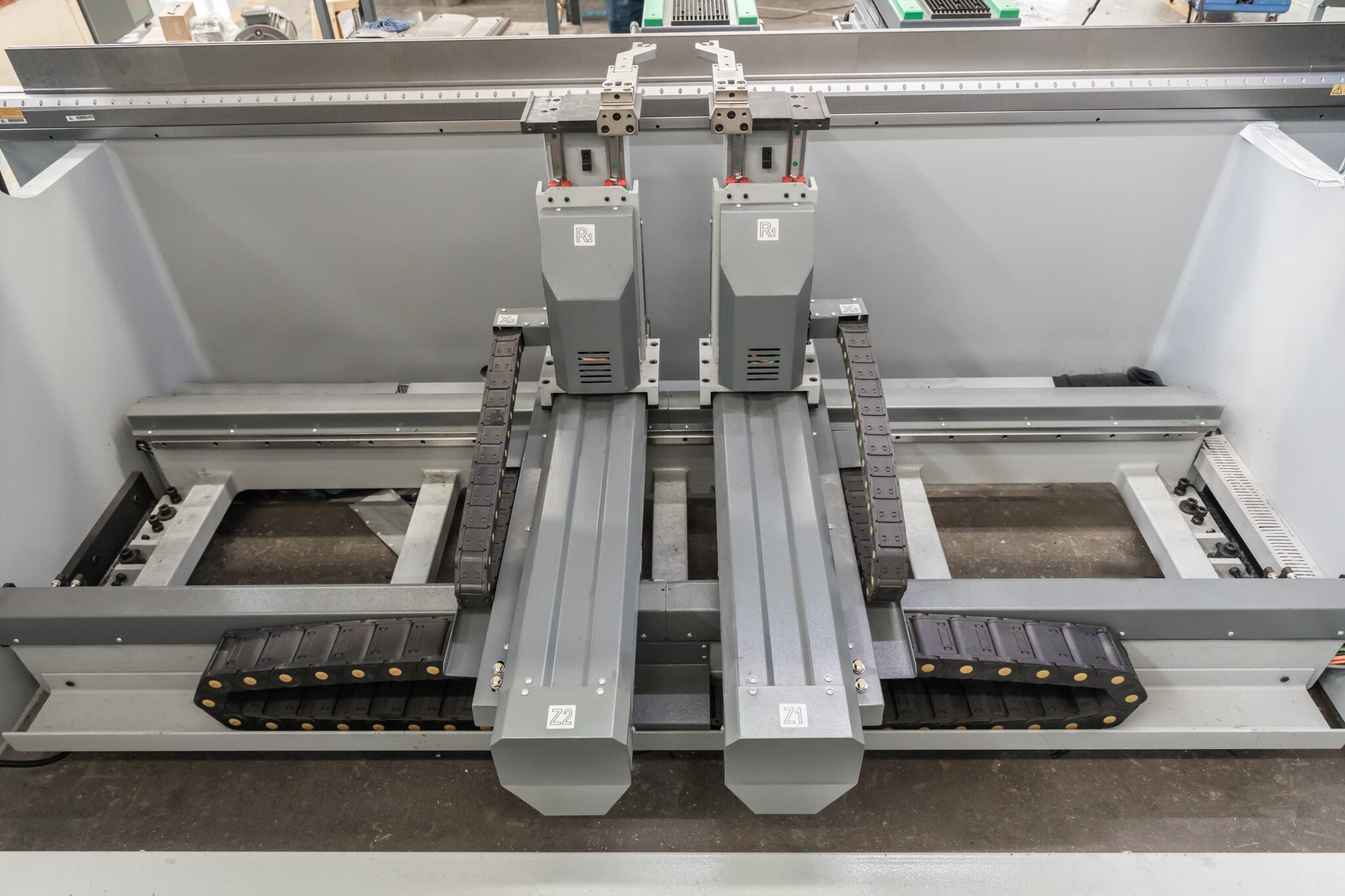

Tool Setup and Clamping
Utilizing high-precision quick-release clamps or robust hydraulic clamping systems can help maintain consistent tool alignment throughout the bending process.
Regular checks of clamp force and alignment are necessary, alongside ensuring that the tooling surfaces are clean and free from oil or debris.
Prior to commencing production runs, performing a “wiggle test” can confirm the security of the die or punch. Moreover, automated clamping systems equipped with sensors to confirm full seating of the die can substantially reduce the likelihood of setup errors, enhancing overall operational accuracy.
Tool Radius
The radius of the punch tip plays a crucial role in defining the bend radius and influencing the potential for springback in the material.
Employing larger punch radii is often beneficial for bending thick or high-strength materials, as it helps evenly distribute the stress over a wider area, reducing the risk of material fatigue or failure.
Conversely, smaller radii can increase the strain exerted on the material, which may lead to cracking in more brittle metals. Ensuring consistency in punch tip radii across batches is essential for achieving repeatable and reliable bending results.
Many shops maintain an array of punches with various tip radii, allowing for quick adjustments to meet different bending requirements effectively.
Tool Crowning Systems
Crowning systems, integral to press brake setups, enhance the precision of bends by compensating for machine deflection that occurs during the bending process. These systems can be mechanical, such as wedge-style adjusters, or hydraulic, which offer the ability to adjust dynamically to the load applied.
Proper calibration of crowning systems is essential, as it ensures even pressure distribution along the length of the bend, critical for maintaining uniform bend angles, especially in longer bends exceeding two meters.
While CNC crowning systems adjust automatically under load, manual systems require the operator to make trial bends and adjustments to achieve the desired accuracy.
Die Surface Condition
Scratches, rust, or debris on the die surfaces can transfer to the metal, potentially causing variations in friction and leaving unwanted marks on the workpiece.
To ensure smooth operation and minimal marking, it’s essential to maintain polished or coated surfaces. Implementing routine cleaning and anti-corrosion measures is vital, especially in humid environments where rust can quickly degrade die quality.
Regular maintenance, including wiping down dies with appropriate cleaners or lubricants, is crucial to prevent scratches that could lead to metal fragments affecting the metal sheet.
Additionally, employing protective films or die protection inserts can significantly reduce surface marring, which is particularly important when working with high-finish materials like polished aluminum or stainless steel.
Frame Rigidity
A rigid frame ensures that the applied bending forces do not cause the machine to deform, which is critical in preventing angle deviations. Even slight frame tilts, such as 0.1°, can lead to significant variations in force uniformity, impacting the bending accuracy by as much as ±0.5°.
To combat these issues, press brakes are often equipped with reinforced steel frames and robust structures, including well-engineered crossbeams that minimize flex under load.
The flatness of the press brake bed, or its “longitudinal” flatness, directly affects the straightness of the workpiece. A deviation of just 0.06 mm in the table can result in a 0.17° error in a 90° bend.
Hydraulic System Performance
The performance of the hydraulic system is crucial for achieving consistent ram movements and, consequently, consistent bends. Stable fluid pressure must be maintained to avoid air pockets or fluid leaks, which can result in uneven force distribution.
Regular maintenance, including hydraulic oil changes and inspections of seals, pumps, and cylinders, is essential for sustaining system accuracy.
Issues such as low or contaminated oil levels can exacerbate ram drift, which in turn affects the uniformity of angles across multiple bends. Wear on valves and pumps can lead to slower or inconsistent ram responses, underscoring the need for annual system calibration.
Monitoring for unusual noises or vibrations within the hydraulic circuit is a proactive way to identify and address issues before they impact bending accuracy significantly.
Back Gauge Accuracy
Misalignments or mechanical looseness in the back gauge can shift the bend location and alter the intended angle.
Modern CNC-controlled back gauges equipped with linear guides offer repeatable positioning accuracy to within thousandths of an inch, ensuring the material is correctly aligned before bending.
Regular calibration of the back gauge, which involves checking alignment at multiple reference points (fully retracted, midpoint, fully advanced), is crucial for consistent performance. Additionally, maintaining the integrity of gauge fingers is vital; any wear or damage can tilt the sheet, introducing errors in bend location.
Ram Deflection
Under high loads, the ram may flex slightly, leading to variations in the bending angle from the center to the edges of the workpiece.
To counteract this, technologies such as crowning systems, robust frame designs, and servo motor adjustments are employed to reduce ram deflection and maintain uniform bending forces across the workpiece.
When dealing with eccentric loads, such as when bending is performed primarily on one side of the machine, ram deflection can become more pronounced. It is advisable to avoid off-center bending unless the press brake is specifically designed to handle such conditions.
Advanced press brake models feature real-time deflection monitoring, allowing for automatic adjustments of hydraulic or servo systems to compensate for any detected flexing.
Machine Wear and Calibration
Over time, the wear and tear on mechanical components and guide rails can lead to a need for recalibration of the press brake to ensure continued operational accuracy. Frequent calibration checks, ideally scheduled monthly or quarterly, are vital in maintaining the machine within its nominal accuracy specifications. Without regular maintenance, progressive angle drift and inconsistency in bends can occur, leading to increased scrap rates and operational costs.
A well-calibrated press brake ensures that parts are produced accurately, reducing the likelihood of waste and rework. Essential calibration steps include checking the perpendicularity of the ram and frame alignment, as well as synchronizing the back gauge settings.
Adherence to national or industry-specific standards for machine tolerances is crucial for maintaining both geometric and operational accuracy.
Ram Position Accuracy
High-end press brakes are equipped with micro-encoders or linear scales that provide exceptional repeatability, typically maintaining a precision of ±0.01 mm or better.
This high level of control is crucial for ensuring consistent bend angles across various operations.
However, accuracy can be compromised by dust or debris on optical scales, leading to erroneous readings. Regular cleaning of these components is essential to maintain precision. Additionally, performing a test bend at the start of each shift can help verify that the ram’s position accurately corresponds to the programmed settings.
For enhanced accuracy, some systems include automated angle measurement hardware that cross-checks mechanical readings against the actual bend angle, aiding in the detection of any drift in scale accuracy.
Deflection Compensation
Automatic deflection compensation systems are integral to modern press brakes, adjusting ram depth or tooling angles in real-time based on sensor feedback or pre-set values.
These systems are especially beneficial in scenarios where workpieces vary in length or thickness within the same production run, as they adapt the machine settings to compensate for any potential deflection.
These compensation systems often store deflection profiles for repeated jobs, streamlining the setup process for future runs. However, if sensors that guide these systems become misaligned or damaged, the compensation mechanisms might introduce errors rather than prevent them.
Hydraulic Pressure Fluctuations
Consistent hydraulic pressure is crucial for maintaining the speed and force needed during the bending stroke. Proper fluid temperature control, along with regular filtration and pump maintenance, can help minimize these fluctuations. Small pressure variations can lead to angle deviations of ±0.2–0.3°, which may compromise the precision of the bend.
Seasonal variations in workshop temperatures can alter the viscosity of hydraulic fluids, subtly influencing the bending force applied.
Monitoring pressure gauges during operations allows for the detection of any momentary drops or spikes, which could lead to inconsistent bending angles.
Moreover, maintaining the hydraulic reservoir at proper fill levels is essential to avoid unstable pressure regulation that could affect multiple bends.
Parallelism of Moving Parts
Maintaining the parallelism of moving parts, such as left and right cylinders in hydraulic machines or servo motors in electric machines, is fundamental to ensuring that the ram remains level throughout the bend.
Even a slight error in parallelism can cause one side of the workpiece to bend more than the other, leading to inaccurately angled parts.
Regular checks of parallelism using digital readouts or mechanical gauges are vital for calibration and maintaining bending accuracy.
Press brakes equipped with dual encoders can monitor each cylinder’s position independently, allowing the control system to adjust any imbalance detected.
Over time, mechanical linkages may degrade and require maintenance to sustain synchronization, especially in production runs that demand wide bending lengths, where small deviations are significantly magnified.
Stroke Length Settings
Correct stroke length settings are imperative to prevent over-bending or under-bending of materials. CNC-controlled press brakes store and manage stroke lengths for various materials and bend angles, which helps in minimizing operational errors.
During calibration, stroke lengths are verified by measuring the distance between the punch tip and the die surface to ensure accuracy.
Improper stroke settings can lead to the material bottoming out in the die, potentially altering the bend angles and causing damage to the tooling.
Some press brakes offer a “test mode” or allow slow approach speeds to fine-tune the stroke length before commencing full production, ensuring the settings are correctly adjusted for the material and die used.
Machine Size and Capacity
Larger machines, while capable of managing wider sheets, may experience increased deflection if not robustly constructed. It is crucial to match the machine’s capacity with the part size and material thickness to avoid overloading, which can permanently distort the frame and degrade bending accuracy.
Frequent checks for uniformity are necessary for very long beds to prevent a “bow” effect in the center. Additionally, attempting bends at the far ends of a large press might result in uneven angles if the machine is not designed to handle eccentric loading effectively.
Machine Dynamics
High-speed settings might lead to inertia-based inaccuracies, especially if the press brake lacks effective damping or real-time motion control systems. To mitigate such issues, proper ramping profiles and well-tuned servos or hydraulics are essential to maintain stability throughout the bending process.
Advancements in technology have largely eliminated the trade-off between speed and accuracy. Modern systems are capable of maintaining high speeds without sacrificing the tight tolerances required for high-quality bends.
However, it is crucial for operators to ensure that rapid movements do not cause the material to slip or the back gauge to vibrate, which could compromise bend accuracy.
Press brakes designed for high-throughput bending often incorporate specialized servo controls that adeptly minimize overshoot at the beginning and end of each stroke, enhancing overall process efficiency and accuracy.
Operator Skill and Experience
Skilled operators have a deep understanding of material behaviors, machine idiosyncrasies, and the nuances of different bending techniques such as air bending, bottoming, and coining.
Their expertise allows them to quickly identify and correct any deviations in the bending process, adjusting parameters like ram depth or back gauge position on-the-fly to avoid errors and minimize scrap.
Inexperienced operators may not detect subtle alignment issues or necessary adjustments, potentially leading to significant defects over large production runs. Implementing mentoring programs that guide newer operators through essential calibration steps—like verifying punch/die alignment and assessing trial bends—can rapidly enhance their proficiency.
Additionally, maintaining accessible reference binders or digital logs of successful setups enables less experienced operators to replicate precise bends with greater ease, directly influencing the overall accuracy of the bending operation.
Consistency of Operator Actions
Variations in how the same operator loads or positions the sheet metal can lead to shifts in bend location or angle, affecting the final product’s quality. Establishing standardized practices, such as consistent reference points for loading sheets, is fundamental in reducing these variations.
For processes involving multiple bends, it is crucial to maintain a consistent sequence and utilize reference stop blocks to ensure accuracy.
The introduction of automated or robotic part handling systems can significantly enhance consistency by removing human variability from the equation.
These systems must be precisely calibrated to ensure the robot’s grip and motion align perfectly with the press brake’s requirements, thereby improving repeatability and reducing the potential for error across successive bends.
System Data Adjustments
Accuracy in press brake operations is also heavily dependent on the correct input of programming data.
Operators must meticulously verify each parameter—angle, bend allowance, tool selection—against the job requirements and make adjustments for any variations in material properties such as thickness and hardness.
Errors in data entry are a common source of rework and can significantly affect production efficiency.
Regular maintenance of the system’s data integrity, including periodic clean-up of outdated job files, is crucial to prevent confusion and errors in current setups.
Many CNC controllers now offer offline programming simulators, allowing operators to test and adjust bending outcomes and check for potential collisions before the programs are executed on the machine.
Material Handling and Positioning
When you lift sheet metal unevenly or allow it to slip across the die shoulders, it can significantly alter the intended bend line. Implementing the use of supports, side stops, or specialized clamps can greatly reduce the risk of errors introduced by manual handling.
For handling very large parts, it may be necessary to engage multiple operators or utilize mechanical lifts to ensure precise alignment.
Additionally, employing back-support arms or using pneumatic/hydraulic part lifters can alleviate physical strain on operators, leading to more consistent and accurate part alignment.
It’s crucial, especially when bending large sheets, to control minor rotations during handling, as these can cause significant deviations from the programmed bend line. In settings where multiple operators are involved, synchronizing their actions through a designated “lead” operator can prevent accidental misalignment, ensuring that each bend is executed with utmost accuracy.
Human Error
Human error in press brake operations can manifest in several ways, such as selecting the incorrect punch or die, failing to calibrate after a tool change, or misreading job specifications. Implementing checklists and robust standard operating procedures (SOPs) can help mitigate these risks by structuring the steps operators must follow.
The complexity of the bending sequence also frequently leads to errors, particularly if operators skip steps or invert the order of bends, resulting in the production of scrap parts.
To reduce confusion and enhance focus in busy shop environments, visual aids like part diagrams and color-coded tooling can be incredibly effective.
Furthermore, conducting regular “refresher” training sessions helps reinforce proper practices and maintain a high level of vigilance against small oversights that can compound over time and impact bending accuracy.
Reaction Time
If you notice a bend angle error partway through a production run, quick action is essential to prevent the further output of defective parts.
Modern CNC machines equipped with real-time angle feedback can automatically pause operations if the bend deviation exceeds a predefined threshold, which significantly aids in timely operator intervention.
Effective communication with teammates, such as quality inspectors, can expedite the process of diagnosing the root cause of an error.
Establishing “stop-run” protocols empowers operators to halt production immediately to address and rectify issues before they result in large-scale scrap, thereby preserving material and reducing waste.
Consistency of Operator Actions
Repetitive operations may lead to operator fatigue or complacency, potentially reducing attention to critical details. Introducing periodic task rotations or incorporating automation, such as automated part feeders or robotic arms, can help maintain consistent focus and reduce human-induced errors.
Setting frequent checkpoints throughout the day or shift encourages operators to regularly verify angles and dimensions, maintaining the accuracy of each bend.
Documentation of Parameters
Recording successful bend parameters, such as ram depth, die opening, and angle corrections, not only creates a reliable reference for future runs but also minimizes the reliance on guesswork, significantly reducing the risk of mistakes.
Modern CNC presses enhance this process by storing these setups electronically, which streamlines operations and boosts repeat accuracy.
Additionally, maintaining detailed calibration records—such as back gauge alignment, ram offset data, and crowning settings—is essential for auditing machine performance effectively. Some shops take this a step further by maintaining a “job library” that includes photos or drawings illustrating material loading techniques, side references used, and the resulting bend angles.
The more comprehensive and accessible the documentation, the quicker and more accurately operators can replicate or troubleshoot specific bend sequences, enhancing overall operational efficiency.
Ambient Temperature Fluctuations
Changes in temperature can slightly alter machine dimensions and modify material properties, particularly the yield strength, influencing the amount of springback. To counter these effects, maintaining a controlled environment or adjusting bend parameters in response to temperature changes is crucial for keeping bend angles consistent.
In practice, some shops monitor daily temperature variations to determine if there’s a correlation with angle drift, particularly under extreme temperature conditions. Additionally, managing hydraulic fluid viscosity by preheating the system in cold conditions can stabilize performance, ensuring more consistent operations. Attention to these details helps mitigate the subtle but impactful influence of temperature on metal forming processes.
Humidity and Corrosion
Humidity levels in the work environment can lead to corrosion or surface rust on metal sheets and tooling, which introduces additional friction in the bending zone and potentially alters bend angles. To prevent such issues, it is advisable to store dies and raw materials in a humidity-controlled area, maintaining consistent surface conditions that are crucial for accurate bends.
Applying a routine anti-corrosion measure, such as wiping down tools and applying rust inhibitors, not only extends the lifespan of the equipment but also maintains the dimensional accuracy necessary for precise bending operations. Keeping the press brake bed free of rust is particularly important as it directly affects how the sheet metal sits during the bending process, potentially causing minor tilts or slips that can impact the final product.
Workplace Vibrations
Workplace vibrations, often caused by nearby heavy machinery like stamping presses, can affect the alignment or stability of a press brake.
Over time, these vibrations can loosen bolts or misalign reference gauges, gradually leading to a drift in accuracy. Regular mechanical checks are essential to ensure all fasteners remain tight and the machine remains stable.
Installing anti-vibration pads or isolators under the press brake’s footings is an effective strategy to reduce these disturbances. Additionally, periodic re-verification of back gauge alignment is crucial to ensure that vibrations have not shifted the reference position.
If significant vibration sources are nearby and cannot be relocated, scheduling critical bending operations during periods of low adjacent activity can minimize the impact of these vibrations, thereby maintaining the integrity and accuracy of the bending process.
Lighting Conditions
Poor lighting can lead to misinterpretations of measurement devices and overlook subtle imperfections on the workpiece surface. To combat these challenges, installing bright, evenly distributed lighting above the press brake ensures that operators can clearly see minor sheet distortions or surface defects before bending.
This setup helps prevent errors caused by shadows or glare that might obscure critical measurement markings on gauge scales or protractors.
Consistent lighting not only aids in accurate placement of the sheet but is crucial for verifying part alignment, particularly when using manual press brakes that lack CNC precision.
Bend Angle Settings
Incorrectly programmed angles or neglecting to account for material springback can result in parts that deviate from specified tolerances.
Modern CNC press brakes facilitate micro-adjustments to ram depth, allowing operators to fine-tune bend angles during the process. Proper depth settings are vital, especially in air bending, where the gap between the punch and die significantly influences the final angle.
Conducting trial bends with each new material batch to check for springback is a proactive approach that minimizes waste. Operators are advised to adjust for typical variations in material and machine conditions, fine-tuning stroke depth to achieve precise bends.
Bend Sequence Planning
The complexity of part geometry often dictates a specific sequence of bends to avoid collisions and ensure accurate end-product geometry.
Errors in sequencing can cause earlier bends to interfere with subsequent ones, altering the intended angles and distorting the part. Utilizing simulation software is an effective strategy to pre-plan and visualize bend sequences for complex parts, ensuring that each bend is executed in an order that maintains the integrity of the entire piece.
Although some CNC systems recommend optimal bend sequences, manual verification by the operator remains essential.
Practical tests, such as using cardboard or thin sheet mock-ups, are invaluable for confirming the viability of proposed sequences before actual production begins.
Part Geometry Complexity
Intricate shapes or parts with multiple flanges can introduce variables that standard clamps or back gauges may not adequately control, potentially leading to distortion during bending.
Employing specialized fixtures or custom gauging enhances precision on complex forms. Specific challenges like bending tall flanges might require tools with deeper throat clearances or specialized tooling to avoid collisions.
Similarly, parts with narrow flanges benefit from precision back gauge fingers that adjust for height, ensuring accurate placement. For components such as complex brackets or box shapes, implementing steps like partial bends or pre-bending prior to final forming is crucial to maintain angle accuracy throughout the manufacturing process.
These detailed considerations highlight the multifaceted nature of press brake operations where every element, from machine settings to environmental conditions, plays a pivotal role in achieving high precision and efficiency in metal fabrication.
Over-bending or Under-bending Adjustments
To ensure press brake accuracy, operators may intentionally over-bend to compensate for springback, then fine-tune settings for subsequent parts.
Over-bending by a small increment, such as 1–2 degrees, can effectively offset the characteristics of materials with high elasticity or hardness, enhancing bend accuracy. Similarly, under-bending—or incrementally approaching the final angle—helps minimize scrap, albeit at the cost of increased cycle time.
Modern CNC controllers assist this precision by storing “angle correction” tables for various alloys, streamlining the process. However, excessive over-bending should be approached with caution to avoid stressing or cracking the metal, underscoring the need for meticulous control and real-time measurement during these adjustments.
Tonnage Setting Errors
Applying insufficient tonnage may result in partial or inconsistent bending, while excessive tonnage can damage the tools or workpiece.
Operators are encouraged to utilize automated tonnage calculators or consult built-in machine tables to align the required force with the material’s specifications, thereby ensuring precision. It’s crucial to cross-verify the tonnage readout on the controller with manual calculations, such as those derived from standard bending force charts.
Especially when operating close to a machine’s capacity limit, understanding the nuances of tonnage settings can prevent deflection issues or pressure fluctuations that compromise bend quality.
Part Repositioning Errors
Misalignments during flipping or rotating the workpiece can significantly shift reference points, accumulating errors that affect the final dimensions.
To mitigate such risks, setting repeatable reference marks or employing fixture stops ensures consistent positioning. For complex or large parts, using labeled bend lines or color-coded reference edges aids operators in maintaining orientation.
Additionally, repositioning aids like side stop arms stabilize the part during handling, preventing tilt. In high-accuracy environments, a quick measurement post-reposition confirms the part’s alignment, allowing for immediate corrections before proceeding with further bends.
Material Slippage
Material slippage during the bending process directly affects press brake accuracy, particularly with large or heavy sheets.
Surfaces that are too polished or lubricated increase the risk of slippage, leading to inaccurate bends. Implementing anti-slip surfaces or using mechanical clamps on the back gauge can significantly improve grip.
For materials like polished aluminum, which are prone to shifting, clamping systems equipped with rollers or specialized grips are essential, though they must be carefully adjusted to avoid damaging the sheet.
Continuous monitoring, either through visual checks or sensor-based slip detection systems, plays a crucial role in alerting operators to any unexpected movement of the metal during the bend, ensuring every angle meets precise standards.
CNC Programming Accuracy
Modern CNC press brakes enable the execution of complex multi-step programs; however, any programming errors can propagate throughout the bending process, leading to inaccuracies.
Utilizing built-in simulation tools or offline programming aids can significantly mitigate these risks by predicting potential collisions and compensating for angle offsets in advance.
Operators should ensure each program line is correct and verify accuracy with test pieces. 3D simulations enhance this process by visualizing the entire bend sequence, ensuring no part of the workpiece collides with the machine during operations.
Additionally, some CNC systems can adaptively update the bending program based on manual adjustments made during production, enhancing consistency across repeated runs.
Cloud-based solutions further streamline this process by enabling the sharing of optimized bend programs across different machines, promoting uniform best practices.

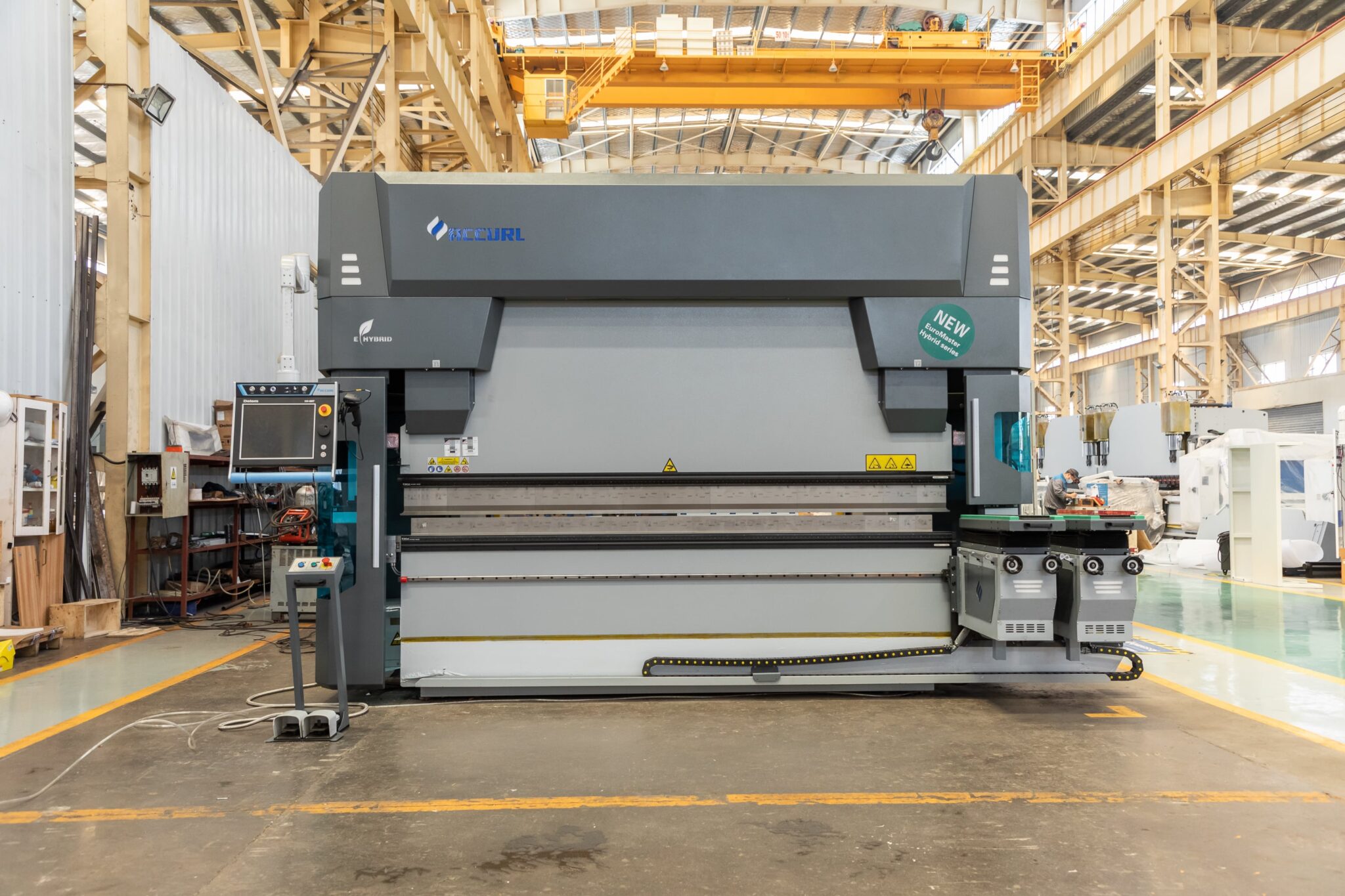

Software Incompatibilities
Software incompatibilities between CAD, CAM, and CNC control systems can introduce errors in interpreting geometric data or bend allowances, affecting press brake performance.
Ensuring compatibility by exporting designs in universally accepted formats like DXF and double-checking settings such as bend radii and K-factors in each software platform is essential. Discrepancies in settings like bend deductions can lead to significant deviations in final part dimensions.
Regular software updates and maintaining communication between design engineers and machine operators are critical steps in ensuring that all digital tools align with the physical bending processes.
Lack of Predictive Features
The absence of predictive features in press brake controls can place greater demands on operators to manually adjust for variables such as springback, potentially increasing the time and labor involved in setting up accurate bends.
Advanced controllers that predict how materials will react under bending pressures can automate adjustments to the ram depth, reducing the reliance on manual trials and adjustments. Without such features, operators must rely on experience and repetitive testing to achieve the desired angles, which can be inefficient in dynamic production environments.
Implementing real-time angle correction systems can dramatically reduce setup times and enhance productivity, particularly in settings where custom and short-run jobs are common.
Real-Time Feedback Systems
Implementing real-time feedback systems in press brake operations transforms the bending process by providing instant data on the bend angle during the operation, allowing for on-the-fly adjustments to ram depth or tilt. This capability is especially beneficial when working with materials prone to significant springback, such as stainless steel or high-strength steel.
Real-time systems often pause the press brake near the final angle to fine-tune the bend based on precise measurements, ensuring each part meets stringent accuracy requirements.
However, maintaining these systems is crucial; sensors must remain clean and well-calibrated to function correctly.
Automation Integration
Robotic systems and specialized part manipulators ensure consistent material handling, which is crucial for maintaining repeatable accuracy, especially in high-volume or intricate bending tasks.
By robotically loading and unloading sheets, each piece is positioned with precision, synchronized perfectly with the press brake’s settings. These automated systems are not only pivotal for consistent positioning but are also adept at measuring part dimensions post-bend. This allows for real-time adjustments to the CNC program, ensuring that each subsequent bend adheres to stringent quality standards.
However, the effectiveness of automation relies heavily on the precise calibration of the robot’s coordinate system and the regular maintenance of robotic arms to prevent any misalignment, which could introduce errors during the bending of multi-bend parts.
Regular Maintenance
Daily checks that ensure oil levels are adequate, components are clean, and clamps are securely fastened help prevent minor issues from escalating into significant problems that compromise accuracy.
Proactive replacement of critical parts like seals and filters maintains the reliability of hydraulic or servo systems essential for consistent machine performance.
Moreover, maintaining detailed logs of maintenance activities allows for tracking wear patterns or recurring issues, which can be indicative of underlying problems requiring more serious intervention.
Annually verifying machine leveling is also critical, as even minor shifts in floor alignment can affect the frame geometry, leading to accuracy drift over time.
Calibration Frequency
Manufacturers might recommend varying frequencies for calibration, such as monthly or quarterly, depending on the volume and precision required by the operations.
Calibration tasks should include checking ram and back gauge alignments using precise gauging blocks or angle measuring devices, ensuring that the machine’s digital readouts accurately reflect the actual physical settings.
For operations that demand high precision, such as those producing aerospace or medical components, more frequent calibrations might be necessary.
Documenting each calibration session provides a valuable record that helps operators detect any drift in machine performance, suggesting when more comprehensive maintenance or a deeper investigation into mechanical issues might be needed.
Inspection of Components
This includes examining mechanical linkages, guide rails, control cables, and all fasteners to ensure everything is tight and properly aligned.
The mechanical stress of regular operation and external vibrations from nearby equipment can loosen bolts and alter alignments, gradually leading to a decline in bending accuracy.
Ensuring that linear scales are free from dust and other residues helps maintain precise position feedback, which is essential for accurate bending operations.
Additionally, for machines equipped with a crowning system, it’s important to check that all hydraulic lines and linkages are secure and leak-free to maintain uniform pressure distribution across the bend length.
Lubrication of Moving Parts
Properly lubricating guide rails, pivot points, and ram bushings minimizes friction and prevents premature wear, crucial for the long-term precision of bending operations. Automatic lubrication systems are instrumental, providing consistent lubrication at predetermined intervals which ensures optimal performance.
Selecting the right lubricant grade for specific ambient temperatures helps maintain a stable viscosity, essential for consistent mechanical performance.
However, operators must be cautious of over-lubrication, as excess lubricant can attract dust that forms an abrasive paste, potentially harming the machine’s functionality.
Regular cleaning to remove this buildup is as vital as the lubrication process itself. Modern machines with sensors to monitor lubricant flow and pressure add an extra layer of precision, alerting operators to any potential issues such as blockages or leaks, safeguarding the press brake’s operational integrity.
Fastener Tightness
Over time, vibrations from regular use and external stresses can loosen critical bolts, which if unchecked, can alter the machine’s alignment and affect bending accuracy. Key areas such as the ram-cylinder mounting, back gauge rail supports, and frame crossbeams, which endure the most stress, require frequent inspection.
Utilizing thread-locking compounds or mechanical locking washers in these high-vibration zones can significantly prolong fastener tightness.
During each inspection cycle, it’s also crucial to check for any signs of mechanical or welded seams showing cracks or distortions, as these can also influence machine stability and accuracy.
Die and Punch Surface Cleaning
Accumulation of residues such as rust or metal chips can impede the metal flow during bending, leading to dimensional inaccuracies and surface defects like scratches on the workpiece.
Routine surface cleaning—through simple brushing or wiping and more intensive cleaning with solvents as required—helps maintain the integrity of the bending surfaces. Moreover, any buildup of adhesive or protective films from coated materials must be meticulously removed to ensure uniformity in die openings.
Regular cleaning of punch tips is equally important; keeping them free from debris prevents unwanted imprint lines on finished parts and contributes to consistent bending angles.
Bend Allowance and Deduction Errors
Accurate bend allowance and deduction calculations are fundamental to achieving precise dimensions in finished parts. Mistakes in applying the correct formulas or overlooking the material-specific K-factor can result in significant deviations from desired specifications.
Integration of CAD/CAM systems typically automates these calculations, yet the accuracy of these automated processes heavily relies on correct operator inputs. Variations in material composition, such as different steel grades, can alter the K-factor or bend deduction, necessitating adjustments to the programmed settings.
To enhance accuracy, operators can benefit from maintaining a library of tested K-factors for commonly used materials.
Complex Part Designs
Intricate flanges and partial bends require precise sequencing to circumvent any potential collisions or distortions during the bending process. Utilizing 3D simulation tools is vital; these tools can preemptively identify and resolve possible interferences before the metal is even bent.
For parts with inward or “reverse” flanges, the use of specialized gooseneck tooling is often necessary to prevent tool collisions. Moreover, even a minor oversight, such as neglecting a small protrusion in the design, can lead to premature contact with the punch, resulting in an incorrect bend.
To mitigate such risks, a collaborative review process between design engineers and press brake operators is essential, enabling the identification and rectification of design-for-manufacturability issues before they impact production.
Cutting and Pre-Bending Preparation
Techniques like laser or plasma cutting can create heat-affected zones which may alter the material’s hardness at the edges, potentially affecting the bending process.
It is crucial that pre-bending tasks such as partial notching or hole placement are executed with precision alignment to the planned bend lines to maintain the accuracy of the final geometry.
Ensuring that the cut edges are smooth and free from dross or burrs is vital, as rough edges can cause the sheet to snag in the die, leading to inaccuracies. Moreover, positioning holes too close to the bend line can weaken the structure or lead to material deformation.
Adjustments, like a slight offset in notch placement, are sometimes necessary to correct the bend reference and avoid angle errors in complex assemblies.
Insufficient Material Testing
A quick bend test or coupon test can provide essential validation of the correct springback and tonnage required before commencing full production, which is critical given the real-world variations in material properties that theoretical values might not account for.
Implementing a “material qualification” process, where a standardized sample from each new coil or sheet delivery is tested, can highlight discrepancies in yield strength or thickness that might otherwise affect bend angles.
Documenting these test results helps refine the predictive models used in CNC or offline programming, enhancing the overall precision of the bending operations.
Batch Consistency
Maintaining batch consistency is important in press brake accuracy, as variations within a single supplier’s batch in terms of thickness or hardness can impact the uniformity of bend angles across production runs. Documenting batch-specific adjustments enables operators to maintain consistent quality even when material properties vary slightly.
Encountering major deviations in mechanical properties mid-run requires operators to have the autonomy to pause production and recalibrate settings to accommodate these changes. Labeling each sub-batch of sheet metal allows for tracking internal variations and making necessary compensations.
Operator Fatigue
Over long shifts, attentiveness can diminish, increasing the likelihood of misalignment or incorrect gauge settings, which are critical for achieving desired bend accuracy. Implementing measures such as rotating tasks, utilizing ergonomic aids, and incorporating anti-fatigue mats can mitigate errors directly linked to fatigue.
Moreover, providing adequate lighting and scheduled micro-breaks can significantly enhance focus. Employing automated or semi-automated bending solutions reduces the physical and mental strain on operators, thus improving consistency in press brake operations.
Supervisors might also monitor part rejection rates throughout shifts to directly correlate fatigue with increased defect rates, enabling better management of work schedules and operational demands.
Tool Changes
Each new punch or die set requires precise alignment and testing to ensure the machinery adheres to the stringent specifications for bending accuracy.
Inconsistent procedures or hastened tool changes can lead to cumulative errors that affect the entire production line. Implementing quick-change tooling systems that feature precise locking mechanisms can significantly reduce setup times and potential errors.
Additionally, performing a short calibration bend post-tool change ensures alignment is maintained. Documenting the last known offsets for each tool set facilitates quicker setups in future operations, streamlining the transition process and maintaining consistency across jobs.
Heat Generation During Operations
During intensive press brake operations, heat generation can alter the machine’s performance by expanding components and modifying bend angles. Managing this heat is crucial for maintaining high precision in bending processes.
Strategies such as scheduling cooling intervals or employing coolant sprays help mitigate temperature-related accuracy issues. Monitoring the temperature at critical points like the die contact area allows operators to decide when a cooling break is necessary to preserve bend consistency.
For prolonged production runs involving thick materials, the heat generated can cause significant expansion of the machine table, which needs to be accounted for in the process settings.
What are the Different Press Brake Types and How Do Their Features Impact Accuracy?
Understanding the different types of press brakes and how their specific features influence accuracy is essential for optimizing production in metal fabrication. The primary types include electric, hydraulic, hybrid, and manual press brakes, each with unique attributes that affect performance and precision.
CNC Press Brakes
CNC press brakes stand out for their ability to automate the bending process with precision. These machines can achieve repeatability within a few thousandths of an inch, courtesy of sophisticated computer-controlled systems that adjust ram depth and back-gauge positions accurately.
Enhanced features such as in-process angle measurement and automatic crowning adjustments help maintain consistency across varying material properties and thicknesses, significantly reducing setup time and human error. The integration of CNC technology allows for complex bending operations that require high levels of precision and repeatability.
Hydraulic Press Brakes
Hydraulic press brakes are favored in settings where heavy-duty bending is required. A hydraulic press brake can maintain consistency and power across large batches and thick materials.
Accuracy in hydraulic systems is augmented by technologies like synchronized cylinders and CNC controls, which manage the precise movement of the ram.
Regular maintenance and calibration are vital to ensure long-term accuracy, addressing potential issues like hydraulic fluid viscosity changes or part wear that could otherwise impact performance.
Electric Press Brakes
An electric press brake utilizes servo motors to achieve extremely precise ram positioning, crucial for high accuracy in bending operations. These machines offer a repeatability of ±0.001″, making them highly reliable for tasks requiring stringent tolerances.
Electric press brakes are not only known for their precision but also for their energy efficiency and lower maintenance costs, as they don’t require hydraulic fluid changes.
The absence of hydraulic components reduces the risk of fluid leaks, further enhancing their operational reliability and consistency in maintaining bending accuracy.
Key advantages include:
- High precision and repeatability.
- Reduced operating costs due to minimal hydraulic components.
- Lower noise levels enhance the working environment.
- Quick response times improve cycle speeds without compromising accuracy.
Manual Press Brakes
Manual press brakes demand a high level of skill and experience from operators, as they lack the automated control systems found in more advanced machines. The accuracy of manual press brakes largely depends on the operator’s ability to consistently position and reposition the workpiece accurately.
These machines are typically suited for low-volume production or workshops that handle simple bending tasks.
Challenges include:
- Significant variability in bend accuracy due to manual adjustments.
- Dependence on operator skill for maintaining consistency.
- More time-consuming than automated systems, especially for complex tasks.
Hybrid Press Brakes
Hybrid press brakes represent a synthesis of hydraulic power and electric precision. They use servo motors to control hydraulic pumps, combining the force capacity of hydraulic systems with the accuracy and efficiency of electric systems.
This type allows for precise control over the bending process, particularly useful in applications involving variable material properties and thicknesses.
Benefits of hybrid press brakes include:
- Enhanced control and accuracy over ram positioning.
- Energy efficiency, as the hydraulic system is activated only when necessary.
- Capability to handle both small and large-scale production with consistent accuracy.
How to Measure Press Brake Accuracy?
Measuring the accuracy of a press brake is essential to ensure the precision of the bending process, crucial in metal fabrication.
There are various methods to assess the accuracy of press brakes, each serving to guarantee that the equipment performs optimally and the final product meets stringent specifications.
- Angle Measurement: The most direct way to assess the accuracy of a bend is by measuring the angle of the bent workpiece. Tools like precision protractors, digital angle finders, or laser-based angle measurement systems are employed to check if the bend angle adheres to the set specifications. For example, deviations from a desired 90° bend are measured, with industry standards typically allowing a tolerance range of ±0.5° to ±1°.
- Dimensional Accuracy: Checking the dimensional accuracy of flange lengths and other linear measurements is critical. This is often done using calipers or more sophisticated equipment like coordinate measuring machines (CMMs), which provide highly accurate and repeatable measurements.
- Trial Bends: Performing trial bends on scrap metal or designated test pieces is a practical approach to verify the machine’s settings before full-scale production begins. This method helps identify any discrepancies between the programmed and actual results, allowing adjustments to be made prior to the final production run.
- Repeatability Tests: Repeatability—or the press brake’s ability to produce consistent bends under the same conditions—is tested by performing multiple bends and measuring each against the others. CNC press brakes typically log these measurements, facilitating ongoing adjustments to enhance accuracy.
- Standardized Test Pieces: According to specifications like GB/T14349-2011, bending standardized test pieces of specified lengths and thicknesses can help determine the operational accuracy of the machine. The outcomes of these tests are documented and compared against acceptance thresholds.
- Straightness Checks: For longer bends, the straightness of the bend line is often verified using a straightedge and feeler gauge. This method helps detect any deflection in the table or the punch that might affect bend accuracy.
- Comprehensive Metrics: Some facilities calculate overall bending accuracy by integrating multiple factors such as angle error, linear measurements, and the repeatability factor. This comprehensive approach provides a more detailed understanding of the machine’s performance.
- Radius Measurements: Especially in precision applications, measuring the actual bend radius against the programmed radius offers insights into the machine’s capability to handle specified material properties and thicknesses without deviation.
How Can You Improve Press Brake Accuracy?
Improving the accuracy of a press brake involves a combination of machine maintenance, precise setup, and operator expertise.
Here are our nine actionable steps that can significantly enhance the precision of bending operations:
- Standardize Bending Charts: Utilize standardized bending charts for each type of material and thickness to ensure consistency and reduce variability in outcomes.
- Select Proper Tooling: Ensure correct die openings and punch radii are used for the specific material to minimize unexpected springback effects.
- Implement Dynamic Crowning: Apply dynamic crowning or mechanical compensation to correct for bed deflection during the bending process, ensuring uniform bend angles across the length of the press brake.
- Maintain Hydraulic Systems: Regularly monitor and maintain hydraulic oil levels and temperature to stabilize pressure output, which is crucial for maintaining consistent bending force.
- Use In-process Angle Measurement: Install in-process angle measurement devices to provide real-time feedback and adjustments, enabling the correction of deviations as they occur.
- Document Adjustments: Maintain detailed logs of all parameter changes for each job to aid in replicability and troubleshooting in future runs.
- Calibrate Regularly: Regularly calibrate the back gauge to ensure the positioning accuracy by comparing measured distances at multiple points along the table.
- Incorporate Warm-up Cycles: For machines in cold environments or those that have been idle, incorporate a short warm-up cycle to ensure the machine operates at a consistent temperature and performance level.
- Conduct Frequent Spot Checks: During longer production runs, perform spot checks to detect any drift due to wear or heat buildup, allowing for mid-operation adjustments.
How Can You Achieve High Precision in Press Brakes?
Achieving high precision in press brakes is critical for industries where metal fabrication requires exact specifications. Here’s how you can maintain high precision:
- Invest in Technology: Choose press brakes equipped with dynamic crowning and real-time angle measurement systems to automatically adjust for variable loads and material characteristics.
- Schedule Preventive Maintenance: Regular maintenance of hydraulic, mechanical, and electronic components ensures that the machine operates within its designed specifications.
- Utilize High-Quality Tooling: Use premium tooling that is compatible with the materials you work most frequently to reduce wear and tear and maintain accuracy.
- Enhance Operator Training: Educate operators on advanced bending techniques and proactive troubleshooting to minimize errors due to operational oversight.
- Perform Regular Calibrations: Regular calibration of the machine, including checking ram parallelism, back gauge alignment, and the condition of tools, helps maintain bending precision.
- Adopt Standardized Calibration Protocols: Follow a standardized checklist for each new job setup to ensure all aspects of the machine are optimized for performance.
Is It Expensive to Maintain High Accuracy in Press Brakes?
Maintaining high accuracy in press brakes does involve certain costs, but these are often offset by the benefits:
- Initial Investment: High-precision press brakes with advanced features like real-time angle correction and dynamic crowning systems have higher upfront costs but provide long-term savings by reducing scrap rates and rework.
- Maintenance and Calibration: Regular maintenance and calibration are cost-effective compared to the potential waste of materials and labor due to inaccurate bends.
- Operator Training: Investing in continuous training for operators ensures they can achieve and maintain high accuracy, which maximizes machine efficiency and extends its lifespan.
- Total Cost of Ownership: When considering the total cost of ownership, including tool replacements and machine wear, the investment in accuracy-enhancing features is justified by the improved output quality and reduced downtime.
Conclusion
Press brake accuracy comes from more than just advanced machines; it’s the result of collective commitment to excellence.
Maintaining this precision requires a proactive approach: regular calibration to match the ever-changing demands of metal fabrication and vigilant maintenance to catch issues before they escalate.
In summary, press brake accuracy isn’t just about equipment—it’s a comprehensive commitment to precise operations, continuous updates, and expert handling that ensures top-quality results and operational efficiency.
