Name: ACCURL 3200mm CNC Hydraulic Press Brakes with Da66T 3D System for Sheet Metal Bending
Brand: ACCURL
SKU: 62246719865

Specifications

nominal pressure (kn)	1750

Description

Details

https://cloud.video.alibaba.com/play/u/2153292369/p/1/e/6/t/1/d/hd/299046481635.mp4

slider stroke mm : 120 mm
automatic level : Fully Automatic
throat depth mm : 400 mm
machine type : Synchronized
length of working table mm : 3200 mm
width of working table mm : 180 mm
place of origin : Anhui, China
brand name : AccurL
material / metal processed : Stainless Steel
automation : Automatic
extra services : End Forming
weight kg : 10000
motor power kw : 15 kw
key selling points : Eco-Friendly
warranty : 2 years
machinery test report : Provided
video outgoing-inspection : Provided
core components : Bearing, motor, Pump, Gear
After-sales Service Provided : Engineers available to service machinery overseas
Machine Type : Press Brake
Raw Material : Sheet / Plate Rolling
Control Axes : Y1 + Y2 + X + W-axis Crowning
Y1 + Y2 Stroke : 100mm
Electrical components : Electrical components
Main Motor : Siemens from Germany
Servo motor/ Servo drive : YASKAWA from Japan Brand
Quality standard : Accurl German standard
CNC Control system : DA66T System
Condition : New
Applicable Industries : Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works
Showroom Location : United Kingdom, United States
Marketing Type : Hot Product 2019
Warranty of core components : 2 years

Products Description

CNC PRESS BRAKE EURO GENIUS SERIES

ACCURL® EURO-GENIUS Series press brake features an CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and 3D capable graphical control unit to simulate bending sequences and collision points.Also has increased working speeds, stroke, daylight, and pressing capacities of GENIUS Series machines. The future – as a result of rising energy costs and increasingly cost efficient speed-controlled drives offered on the market, variable-speed solutions are on the advance.

Details Images

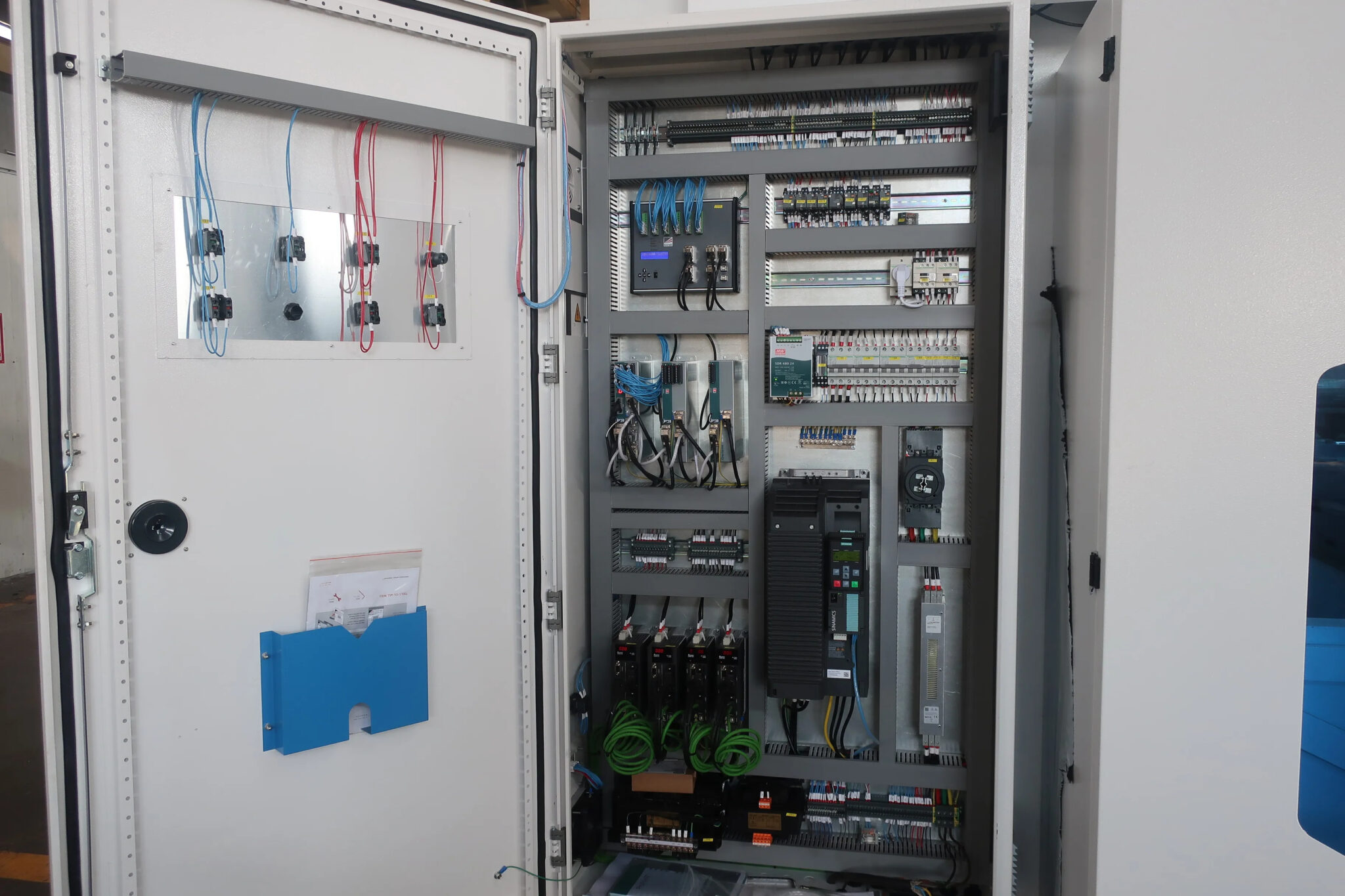

CNC CONTROL SYSTEM

CNC BACKGAUGE

ACCURL press brake are provided are equipped with a backgauge constituted by a solid structure in order to assure the best repetitiveness and high precision in axes positioning.

BGA	X	R	Z1	Z2	X2
Strokemm	750	150	UNDER REQUEST	UNDER REQUEST	190
Speedmm/s	500	170	2000	2000	200
Precisionmm	+0,02	+0,05	+0,05	+0,05	+0,02
Type of motor	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS	BRUS HLESS
Mechanical system	SCREW	SCREW	RACR	RACR	SCREW

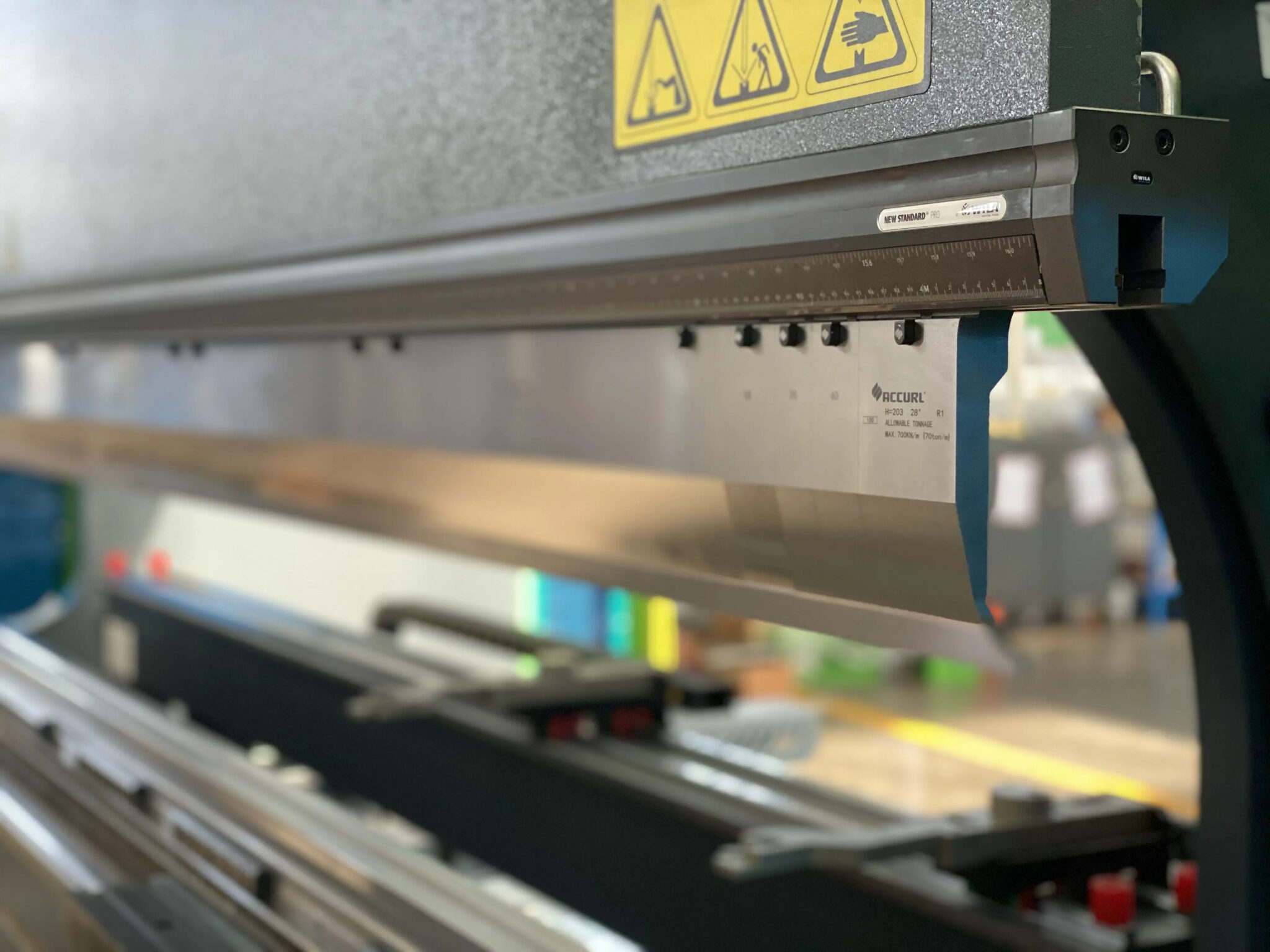

WILA NEW STANDARD AND CLAMPING SYSTEMS

Innovative and super-fast clamping systems for clamping punches to the upper beams of press brakes. The Universal Press Brake Concept UPB makes it possible install New Standard and Clamping Systems on any press brake.

WILA NEW STANDARD CROWING AND HOLDERS

WILA Crowning systems fully compensate for the deflection in press brakes. This results in a consistent bending angle across the entire length of the machine. WILA New Standard Crowning Systems utilize a series of patented adjustable wedges known as Wila Waves.

LASER CHECK ANGLE MEASUREMENT

Laser Check, manufactured by Data M Engineering, is a bend angle measurement and correction system by means of a laser beam. The device is made of a laser and a camera on both sides of the bending line. Detection is carried out in this way.

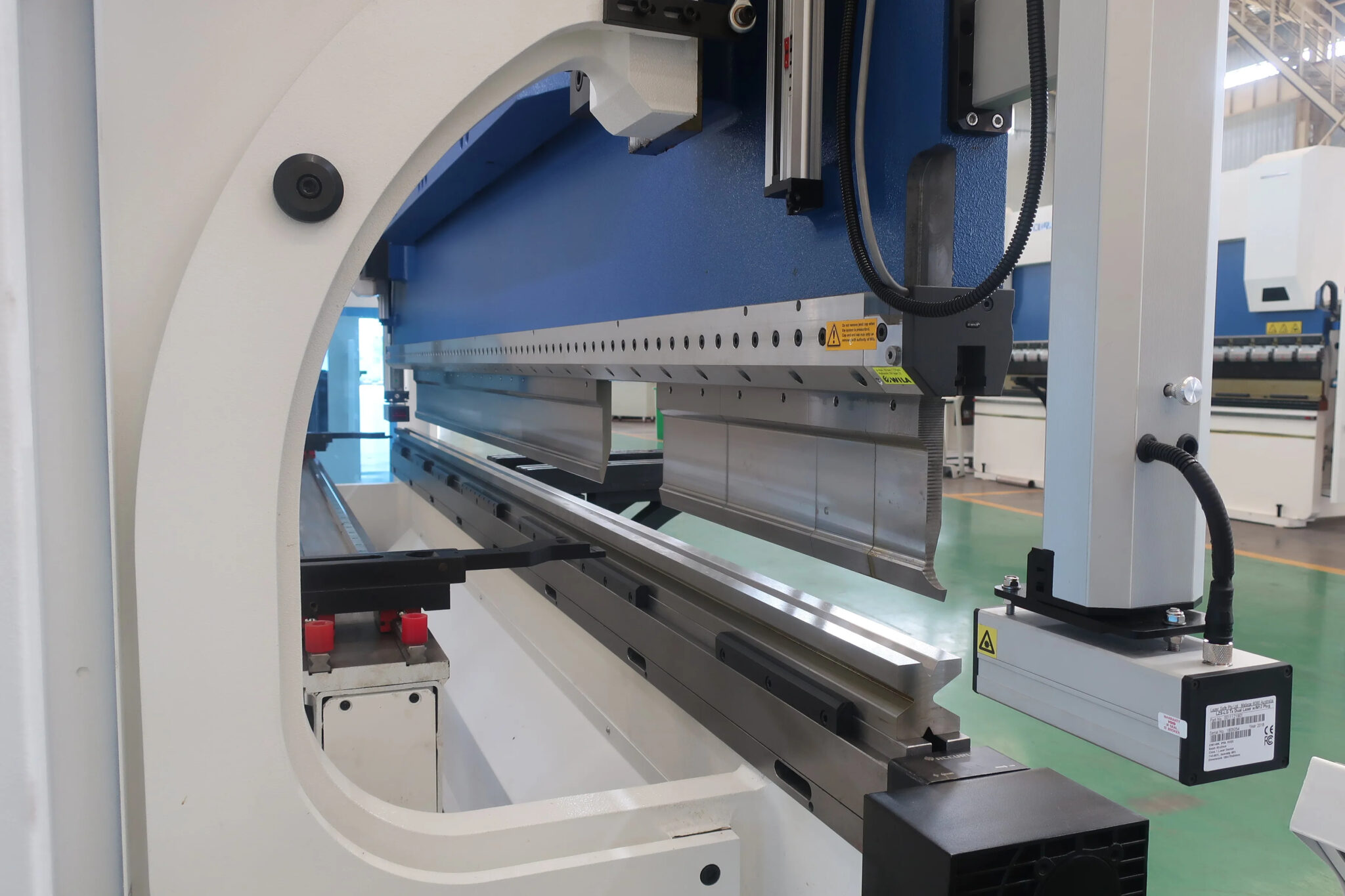

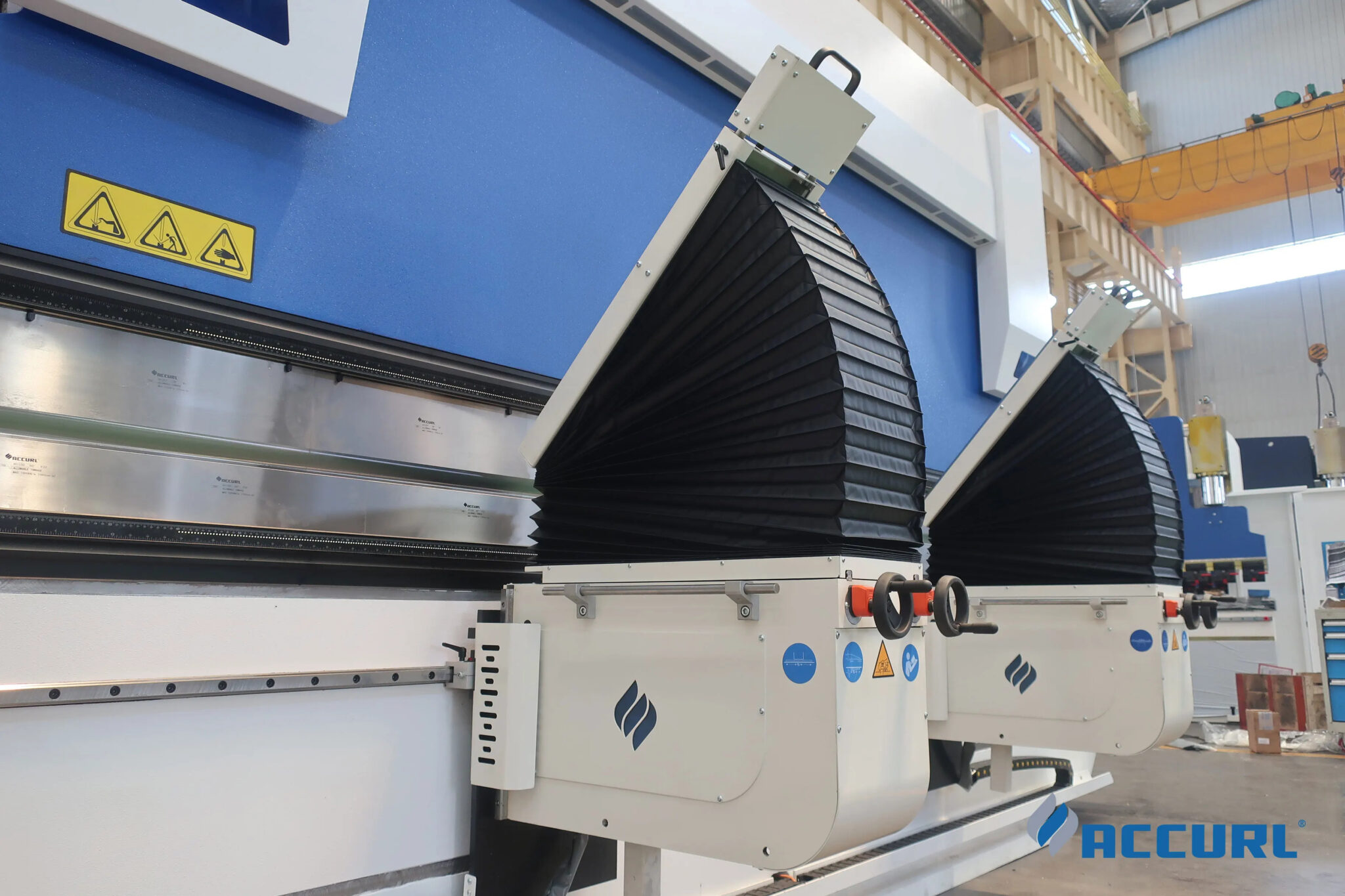

CNC FOLLOWER SUPPORTS AP1 + AP2

It basically consists of a pair of sheet supports placed on the front of the machine at the height of the bending line bottom tool. Supports are controlled by the CNC, following and supporting the sheet during the bending process.

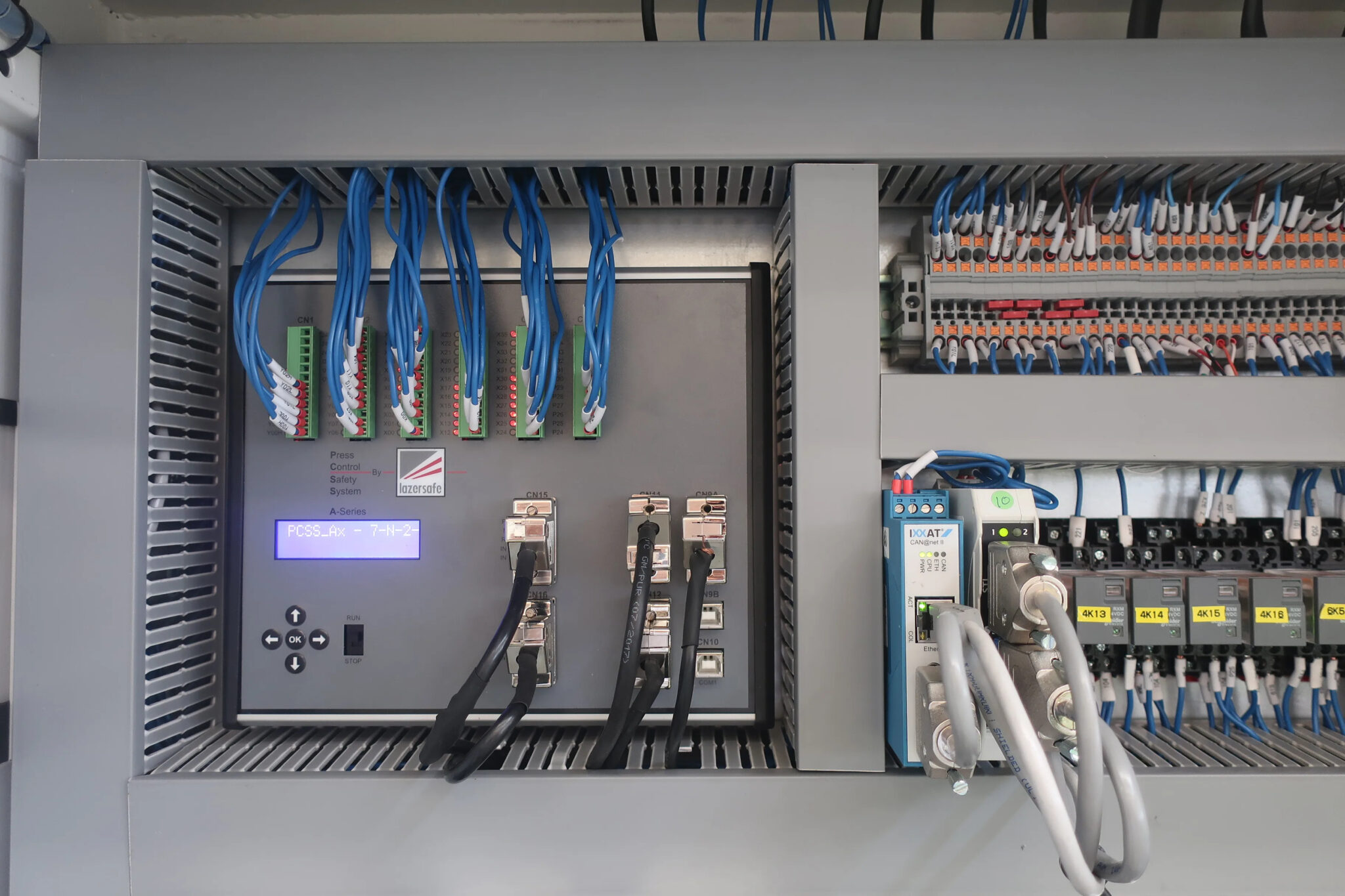

LAZERSAFE OPTICAL SAFETY GUARDS

Performance without compromise.ACCURLuse LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivi-ty.Designed for use with Lazer Safe’s PCSS A Serice, the Lazersafe is category 4 compliant and meets the world’s most demandinginternational safety standardsCE Certified Category 4 Safety Controller with integrated。
