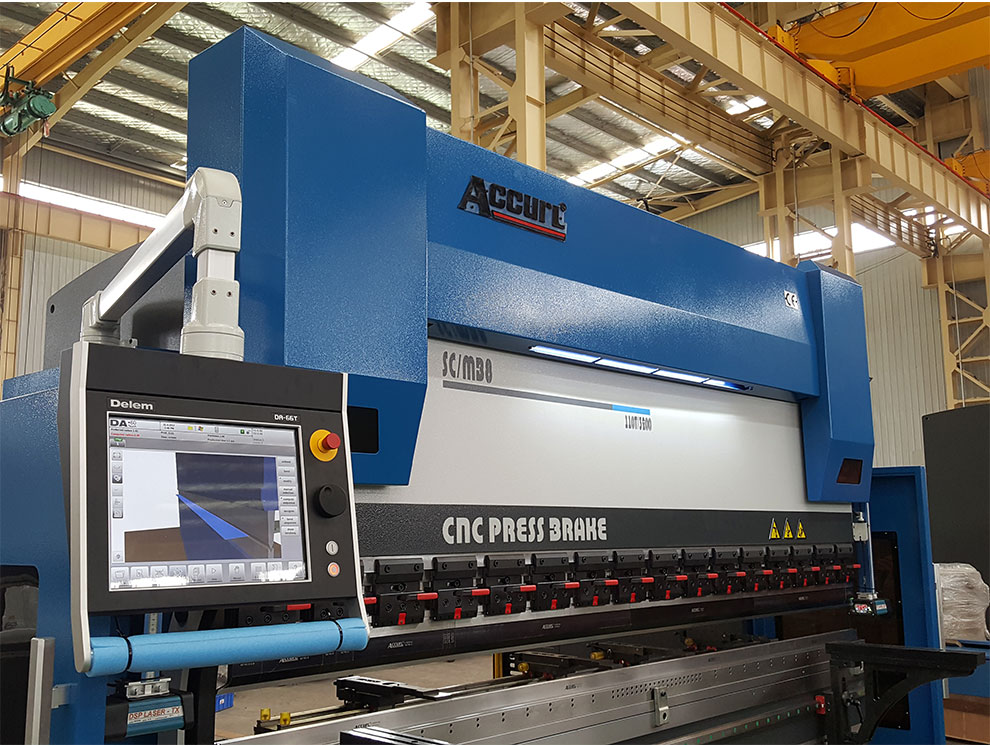

ACCURL 6 Axis CNC Press Brake 135 ton x 3200mm(Euro ProB 32135) with 3D Graphical DELEM DA66T CNC System
ACCURL®6 Axis CNC Press Brake is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.
- Provides a combination of performance, cost effectiveness and easy to use features
- Outstanding Value! Best brake for the money on the market.
- User friendly CNC control unit and software
- Precise bending results
- Tough construction with the same solid framework we use for all of ACCURL CNC Press Brakes
- Large daylight opening allows the entire length of the machine to be put to optimal use
- Designed and built with the objective to help you achieve low cost manufacturing
- Standard 6 axis X, R, Z1, Z2, Y1, Y2 CNC
- Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
- Delem DA66T 3D colour graphical touch screen controller
- CNC 6 axes (Y1, Y2, X, R, Z1, Z2)
- Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
- HOERBIGER servo hydraulic system.
- CNC controlled motorized anti-deflection system.
- Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
- Easy to clamp tool holding system with upper and lower tools.
- Ergonomic user friendly, pendant control panel.
- Back light safety guards (category-4)
- Front side covers with safety switches.
- Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.
- Foot pedal suitable to CE regulation.
- Sliding front support arms with T slot and mm/inch rulers.
- Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.
