IPG 4Kw Fiber Laser cutting machines ECO-FIBER-2040 with High Power Fiber Laser 4000w Cutter Copper and Brass steel

The IPG 4Kw Fiber Laser cutting machines ECO-FIBER-2040 achieve cutting speeds of up to 100 m/min and acceleration of nearly 2G; they guarantee the best quality, precision and efficiency.

REQUEST INFORMATION

Description

The IPG 4Kw Fiber Laser cutting machines ECO-FIBER-2040 achieve cutting speeds of up to 100 m/min and acceleration of nearly 2G; they guarantee the best quality, precision and efficiency. The steel laser cutting machines are available with 1Kw to 12 kW fiber lasers. The 4000watt fiber laser Cutter cuts copper and brass with ease using our IPG Fiber Laser and Globally recognized efficient components used in ACCURL 4000w Fiber Lasers to add value to your company.

Cutting speed: Max 100 m/min
Positioning: 170 m/min
Accelerations: 2G
Laser sources: IPG YLS-4000W Ytterbium Laser Resonator

The Winning Forcefor 4kw Fiber Laser Technology:

  1. Low operating cost and energy consumption
  2. Globally recognized high performance components
  3. Precise cuts and high durability
  4. High profit margin
  5. Perfect results on variety of material
  6. Efficient and precise cuts on thick and thin material

Standard Equipments

  • Germany BECKHOFF TwinCAT CNC Controller
  • IPG YLS-4000W Ytterbium Laser Resonator
  • Advanced PRECITEC cutting head (with air cross blast)
  • Automatic Double Pallet Changer (Shuttle Table)

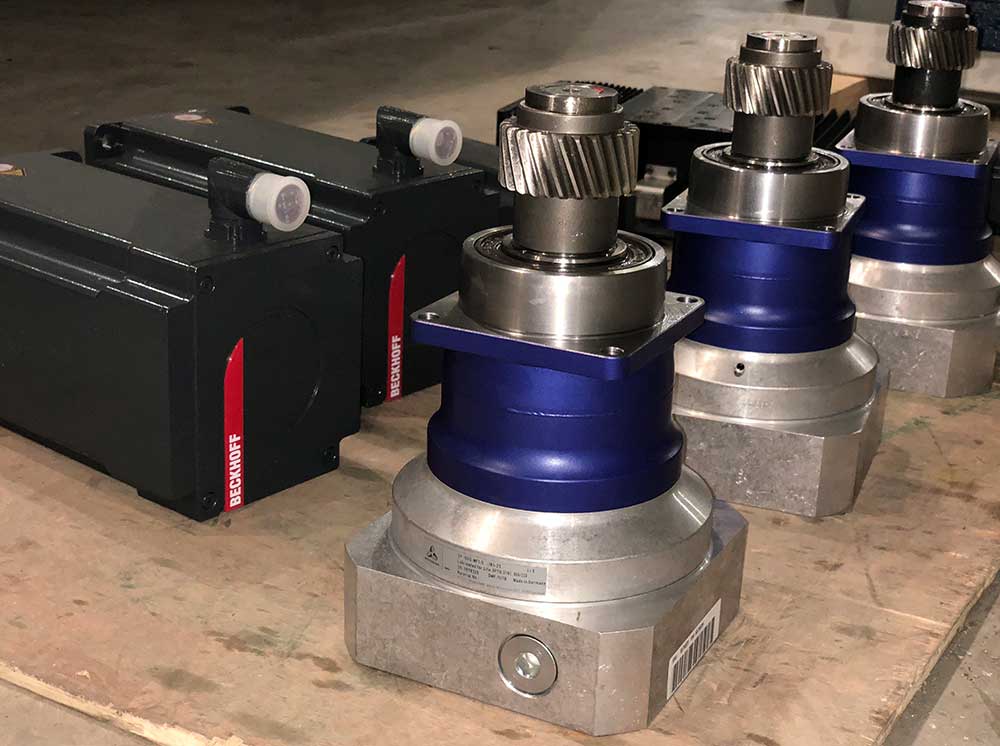

  • Precision Rack & Pinion Drive System (Made in Germany)
  • Radan or Lantek CAD/CAM system
  • Light source
  • Chiller
  • 3 lower protective lenses
  • Operates with both N2 and O2 (cutting) gases
  • Home Position Alignment System
  • Auxiliary Gas Selector
  • Auto Reflection Warning
  • Working Lights
  • 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Optional Equipments

  • Automatic beam centering system.
  • Linear motor technology
  • Laser Safety Barrier
  • Precitec cutting head
  • Automatic sheet metal loading and unloading system.
  • Compressor
  • 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW – 12KW Laser power options available.

Maximum cutting thickness:



AVAILABLE LASER SOURCES 1kW 1.5KW 2kW 3kW 4kW 6kW
carbon steel [mm] 10 14 16 20 20 30*
stainless steel [mm] 4 6 10 15 20 30*
aluminium [mm] 2 4 6 12 15 30*
brass [mm] 2 3 4 6 8 12
copper [mm] 1,5 2 4 6 6 10
* The values obtained in conditions depending on the quality of the workpiece, cutting gas quality, quality of service and the NC program.



Specification:



Model [um] ECO-FIBER-1530 ECO-FIBER-2040 ECO-FIBER-6020
lenght [mm] 8900 10500 14500
width [mm] 2320 2920 2920
height [mm] 2150 2150 2150
weight [kg] 15000 19000 26000
X axis [mm] 3060 4060 6160
Y axis [mm] 1540 2040 2040
Z axis [mm] 120 120 120
max. sheet weight [kg] 900 1500 2500



Max. Speeds
paralel to X,Y,Z axis 120 [m/min]
simultaneously 210 [m/min]
Axis parameters
repeatability 0,03 [mm]
cutting precision 0,1 [mm]
accelerations 20 [m/s2]
min. programmable measurmentpath 0,001 [mm]

*** Note: As products are constantly updated, please contact us for latest specifications. ***
