Description
Top range “Made for Europe” with CE standard safety guards from 40 to 6000 tons & from 1,5 meter to 12 meter
ACCURL Euro Pro B series 100 Ton Hydraulic Press Brake configure 4 axes(Y1,Y2,X,R) and maximum 6 axes (Y1,Y2,X,R,Z1,Z2-Axis). The CNC controller is our standard numerically DELEM DA58T 2D Graphical based controller, ESA S640 and ESA S650 or Delem DA66T.
Automatically calculates unfolded length, automatically and programmable bend order features, according to the material thickness, material type, and tools features.
The 100 Ton Hydraulic Press Brake Body and upper beam is made of steel, it has been designed according to minimum stretch and optimum resistance criteria, as the manufacture of precision CNC machining center is a single operation.
CE standard safety guards:
- FIESSLER AKAS-LCIIF (inside PLC)
- Two sides door-type safety guard and rear safety guard with rear door
- Doors equipped with electric safety switch
- Safety covers for inside and outside main cylinder
- Safety covers for front and back of CNC crowning system
- Often-use internal hexagonal key spanner for adjusting tools
CONTROL FEATURES:

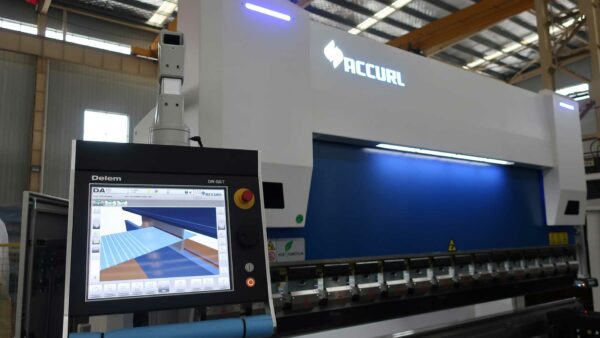

- DELEM DA66T CNC Operator 6 Axis CNC Control for X, R, Z1, Z2-Axis
- 17″ high resolution color TFT
- European standard Punch & 4-VDie
- Positioning Repeat ability: +/- 0.001mm (Ref Only)
- ROLLERI CLAMPING SYSTEMS ROL200-System for Punches
EQUIPPED WITH:
- BGA-4 for CNC Programmable Back Gauge Controlling (X, R, Z1, Z2)
- DELEM Profile-T 3D Offline Programming Software
- Full Tonnage Throughout Stroke
- Electric Foot Switch
- Pedestal Palm Button Station
- Programming Modes: Flange, Position, Profile
Technical Specifications
| Specification | Unit |
| Tonnage | 100 ton CNC press brake |
| Overall Length of Bed | 3100mm |
| Distance Between Sideframes | 2600mm |
| Bed Height | 960mm ( Flush Floor Machine) |
| Bed/Die Width | 100mm |
| Open Height | 550mm |
| Stroke | 300mm |
| Throat Depth | 400mm |
| Horsepower/Main Motor | 7.5KW |
| Approach Speed | 180mm/s |
| Bend Speed | 10~15mm/s |
| Return Speed | 160mm/s |
