ACCURL-3-Axis-CNC-Press-Brake-135-ton-x-3200mm-(SMART-FAB-B-32135)

Category:

ACCURL® 4 Axis CNC Press Brake is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.

REQUEST INFORMATION

Description

ACCURL-3-Axis-CNC-Press-Brake-135-ton-x-3200mm-(SMART-FAB-B-32135)-with-DELEM-DA52s-CNC-System

ACCURL® 4 Axis CNC Press Brake is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.

Stronger, faster and deeper bends;

Euro Pro B Series CNC Press Brake  allow you to have more production capacity and prevent time loss on production.

Standard Equipment:

  • Height adjustable and movable sliding front support arms.
  • DELEM DA58T 2D graphical controller with PC-Profile-T2D software.
  • Promecam easy clamping system.
  • 410 mm throat depth.
  • 4 plus 1 axis CNC:
    • Y1, Y2 precision ram positioning.
    • X, R precision servo-driven back gauge.
    • Manually adjustable Z1, Z2-axis.
    • CNC motorized wave crowning.
  • 2 back gauge fingers
  • Covers for cylinders and top beam
  • Top and bottom tools are surface hardened by special treatment.
  • CNC controlled strong X=800 mm back gauge

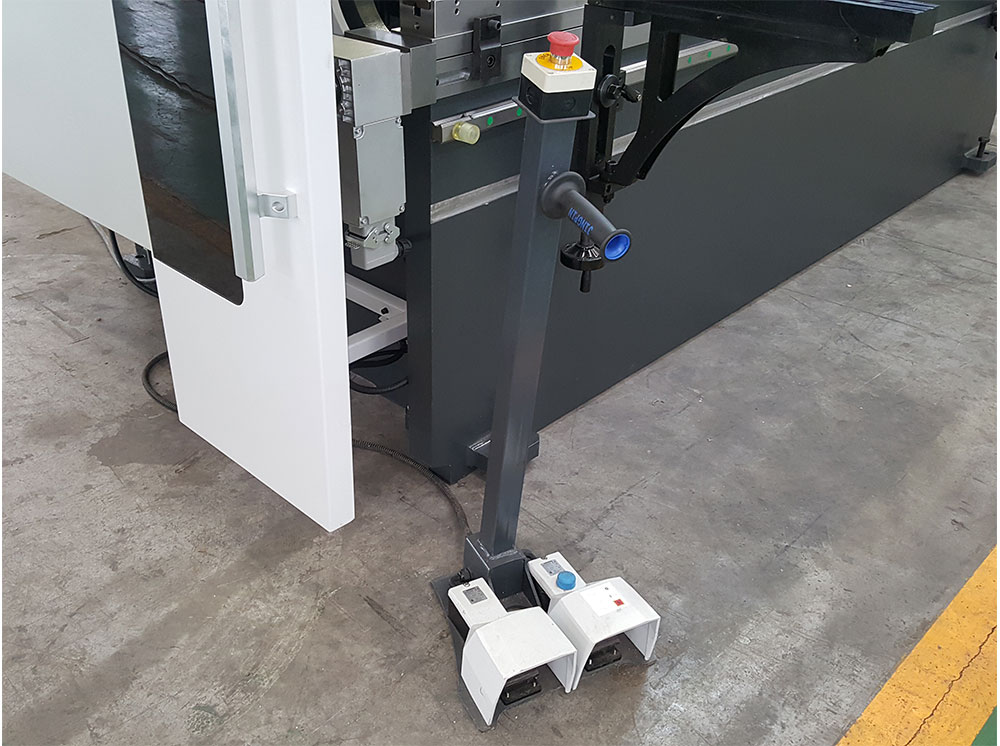

  • Foot pedal is produced according to CE standards and suitable for single and multiple bends.
  • 2 photocells are placed facing each other for rear guards.
  • Preadjusted electrical requirements based on customer’s geographical area.
  • Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.



Technical Specifications

Model: Euro Pro B32135 (135 ton x 3200mm)
CNC Control Axis Y1-Y2-X-R-axis& Crowning
Bending force 135 Ton
Bending length 3200 mm
Distance between columns 2700 mm
Beam Stroke 200 mm
Daylight 485 mm
Throat Depth 400 mm
Table width 100 mm
Working table height 860 mm
Fast Speed 200 mm/sec
Work Speed 0~10 mm/sec
Return Speed 160 mm/sec
Max Speed X-axis 350 mm/sec
Max Travel X- Axis 800 mm
Motor Power 11 KW
Oil Tank Capacity 280 Lts
Overall dimensions 4250×1800×2650 mm
Machine weight 9550 Kgs
