ACCURL 4 Axis CNC Hydraulic Press Brake 110 ton x 3200 mm with DELEM DA58T CNC for Sheet Metal Bending Machine

ACCURL®4 Axis CNC Hydraulic Press Brake 110 ton x 3200mm with DELEM DA58T CNC for Sheet Metal Bending Machine is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.

Description

ACCURL 4 Axis CNC Hydraulic Press Brake 110 ton x 3200 mm with DELEM DA58T CNC for Sheet Metal Bending Machine

ACCURL®4 Axis CNC Hydraulic Press Brake 110 ton x 3200mm with DELEM DA58T CNC for Sheet Metal Bending Machine is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.

Stronger, faster and deeper bends;

ACCURL 4 Axis CNC Hydraulic Press BrakeEuro Pro B32110allow you to have more production capacity and prevent time loss on production.

Standard Equipment:

  • Height adjustable and movable sliding front support arms.
  • DELEM DA58T 2D graphical controller with PC-Profile-T2D software.
  • Promecam easy clamping system.
  • 400 mm throat depth.
  • 4 plus 1 axis CNC:
    • Y1, Y2 precision ram positioning.
    • X, R precision servo-driven back gauge.
    • Manually adjustable Z1, Z2-axis.
    • CNC motorized wave crowning.
  • 2 back gauge fingers

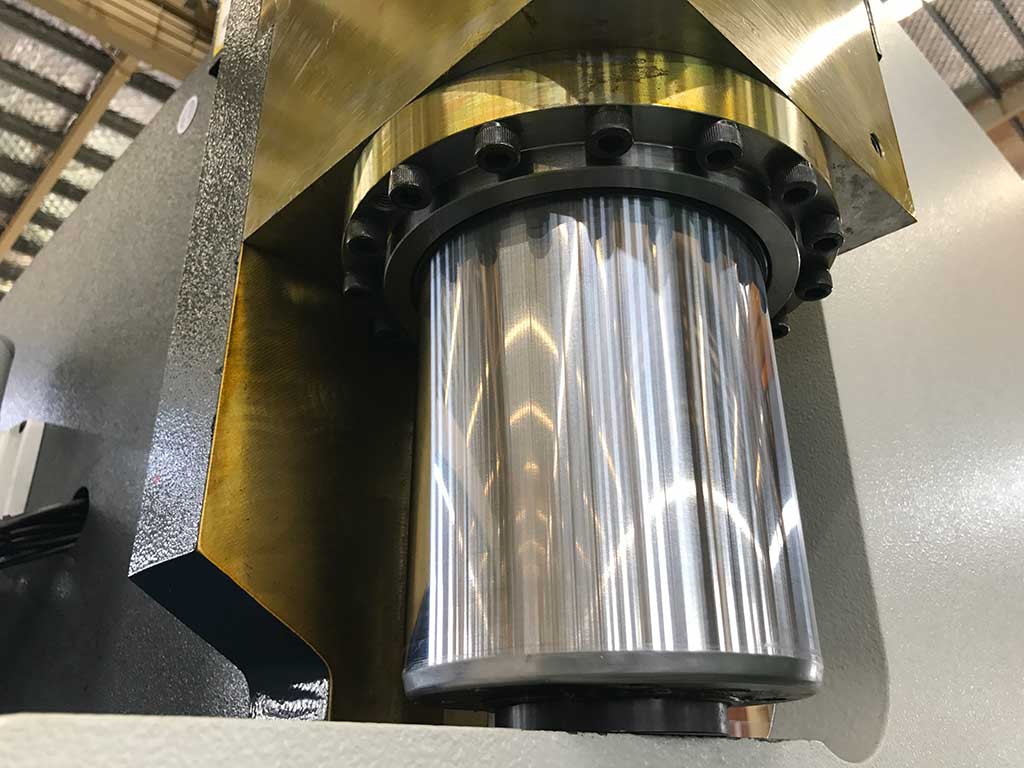

  • Covers for cylinders and top beam
  • Top and bottom tools are surface hardened by special treatment.
  • CNC controlled strong X=1000 mm back gauge
  • Foot pedal is produced according to CE standards and suitable for single and multiple bends.
  • 2 photocells are placed facing each other for rear guards.
  • Preadjusted electrical requirements based on customer’s geographical area.
  • Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.



Technical Specifications

Model:Euro Pro B32110 (110 ton x 3200mm)
CNC Control AxisY1-Y2-X-R-axis & Crowning
Bending force110 Ton
Bending length3200 mm
Distance between columns2700 mm
Beam Stroke200 mm
Daylight485 mm
Throat Depth400 mm
Table width100 mm
Working table height860 mm
Fast Speed180 mm/sec
Work Speed0~10 mm/sec
Return Speed160 mm/sec
Max Speed X-axis350 mm/sec
Max Travel X- Axis800 mm
Motor Power7.5 KW
Oil Tank Capacity310 Lts
Overall dimensions4050×1650×2550 mm
Machine weight8950 Kgs
