Description

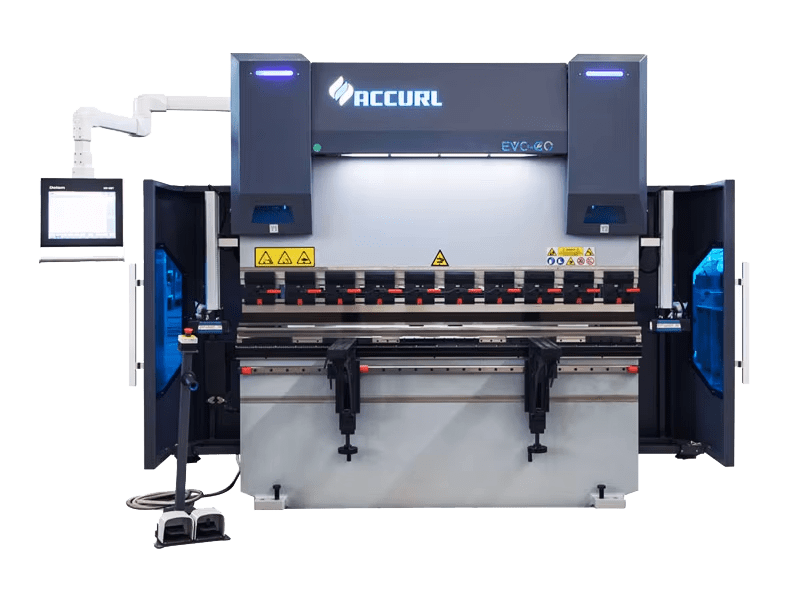

ACCURL 4 Axis CNC Hydraulic Press Brake 400 ton x 4000 mm with DELEM DA58T CNC Press Brake Machine China Manufacturers
ACCURL® 4 Axis 400 ton x 4000 mm CNC Press Brake China is our most popular model by volume and a true workhorse. Constructed of high quality parts and offering serious reliability, Y1 & Y2 technology with high approach, bending and return speeds.
Stronger, faster and deeper bends;
Euro Pro B404004 Axis CNC Hydraulic Press Brake China Brakeallow you to have more production capacity and prevent time loss on production.
Standard Equipment:
- Height adjustable and movable sliding front support arms.
- DELEM DA58T 2D graphical controller with PC-Profile-T2D software.
- Promecam easy clamping system.
- 450 mm throat depth.
- 4 plus 1 axis CNC:
- Y1, Y2 precision ram positioning.
- X, R precision servo-driven back gauge.
- Manually adjustable Z1, Z2-axis.
- CNC motorized wave crowning.
- 2 back gauge fingers
- Covers for cylinders and top beam
- Top and bottom tools are surface hardened by special treatment.
- CNC controlled strong X=1000 mm back gauge
- Foot pedal is produced according to CE standards and suitable for single and multiple bends.
- 2 photocells are placed facing each other for rear guards.
- Preadjusted electrical requirements based on customer’s geographical area.
- Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.
