ACCURL 6-Axis Hydraulic CNC Press Brake 200 Ton 3100mm

Category:

Top range “Made for Europe”, with CE standard safety guards from 30 to 6000 tons & from 1,5 to 12 mt

ACCURL® EURO-PRO B Series 160 ton CNC press brake features an automatic CNC crowning system for improved quality, aDELEM DA66T 3D capable graphical control unit to simulate bending sequences and Backgauge has four CNC axes (X, R, Z1, Z2-axis) which is being moved with ball screw-shaft, guided by linear guide, driven by AC YASKAWA servo motor;

ACCURL® machines comply with the strictest EU regulations with reference to safety. The devices installed guarantee thorough safety of the operator without reducing the pace of work.

REQUEST INFORMATION

Description

Top range “Made for Europe”, with CE standard safety guards from 30 to 6000 tons & from 1,5 to 12 mt

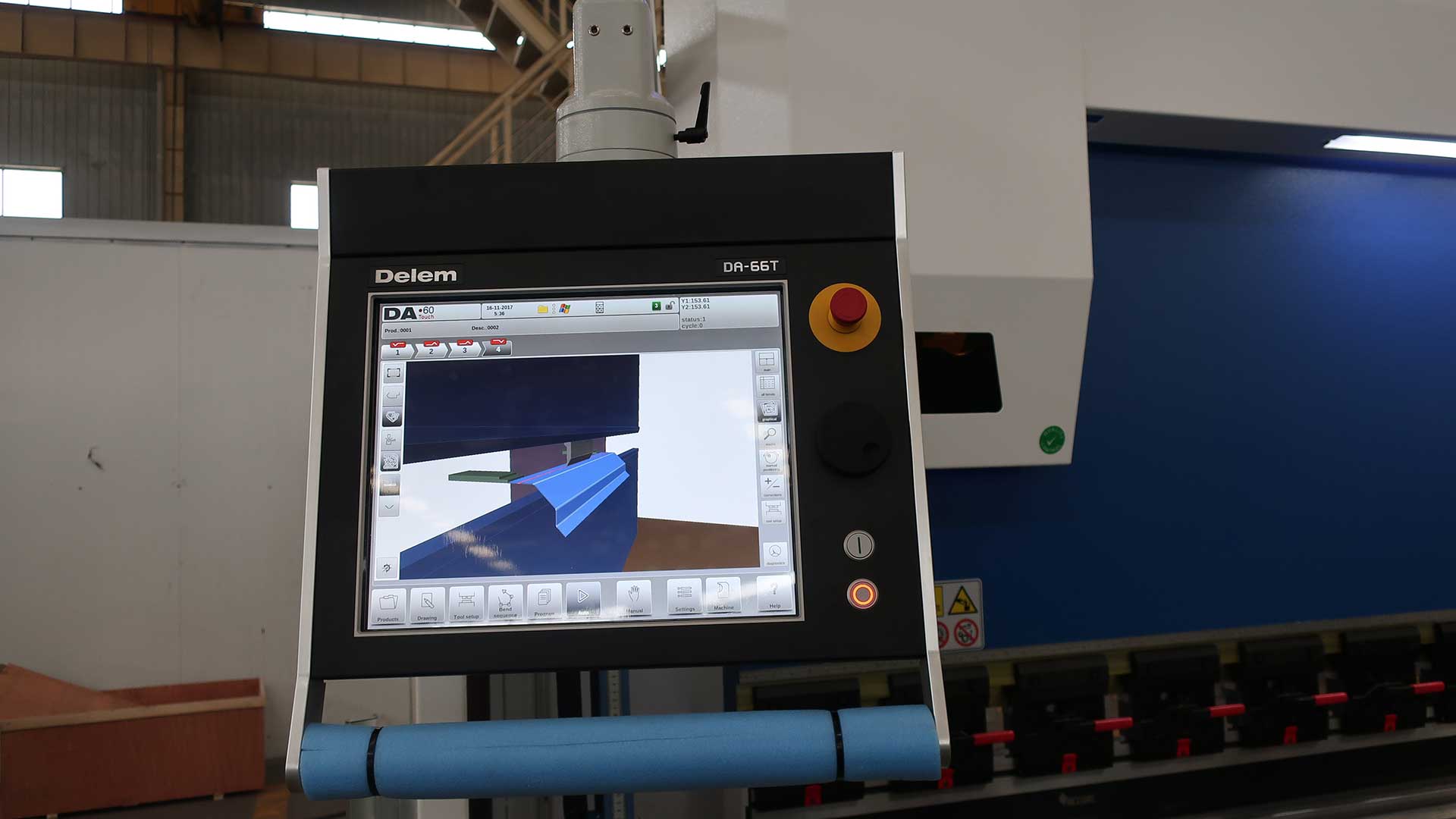

ACCURL® EURO-PRO B Series 200 Ton Press Brake features an automatic CNC crowning system for improved quality, aDELEM DA66T 3D capable graphical control unit to simulate bending sequences and Backgauge has four CNC axes (X, R, Z1, Z2-axis) which is being moved with ball screw-shaft, guided by linear guide, driven by AC YASKAWA servo motor;

ACCURL® 200 Ton Press Brake Machines comply with the strictest EU regulations with reference to safety. The devices installed guarantee thorough safety of the operator without reducing the pace of work.

CE standard safety guards:

  • FIESSLER AKAS-LCIIF (inside PLC)
  • Two sides door-type safety guard and rear safety guard with rear door
  • Doors equipped with electric safety switch
  • Safety covers for inside and outside main cylinder
  • Safety covers for front and back of CNC crowning system
  • Often-use internal hexagonal key spanner for adjusting tools

Security Options for different areas:

  • LAZERSAFE LZS003, Australia laser guarding
  • CE standard safety guards
  • Hydraulic system with middle-position monitoring function + Fiessler AKAS-IIF (inside PLC)
  • Hydraulic system with middle-position monitoring function + Fiessler AKAS-LCIIF (inside PLC, laser beam aligning ) + other CE requirement
  • Hydraulic system with middle-position monitoring function + Pilz safety PLC + Leuze light curtain

STANDARD COMPONENTS:

  • CNC ESA S630 with color graphics
  • Tool kit: 4 V die (V=16-22-35-50) series of 835mm punches with a fractioned one
  • Hydraulic crowning system managed by CNC
  • GIVI optical scales
  • Lazer Safe dual beam photo cells
  • Voith pump
  • Hoerbiger hydraulic system
  • High efficiency motor – classIE3
  • Double guided ram
  • Electrical cabinet with Telemecanique-Schneider,Esautomotion, ABBcomponents
  • HOERBIGER hydraulic valve block, pump and valves





Technical Specifications

Specification Unit
Tonnage 200 tons
Overall Length of Bed 3100mm
Distance Between Housings 2700mm
Stroke 200mm
Max Open Height: 510mm
Effective Open Height 310mm
Ram Inclination +/- 0.001mm
Throat Clearance 400mm
Approach Speed 200mm/s
Form Speed 2~10mm/s
Return Speed 180mm/s
Distance Floor To Top Of Bed 960mm
Width At Top Of Bed 4050mm
Operating Height 960mm
Oil Capacity 280L
Main Motor Horsepower 25 230/460/3/60HZ
