ACCURL Automated Loading Metal Fiber Laser Cutting Machine for Stainless Steel Pipe Laser Cutting Machine

Ask about this machineSpecifications
Accurl Automated Loading Metal Fiber Laser

Specifications

model numberTubeLINE-BK7028
power(w)8000W
cutting area30-400mm

Description

Details

https://gv.videocdn.alibaba.com/4f4e1c368ac918af/a8dfb19eab0529d7/20230114_5e128dfb37354304_393834836837_mp4_264_hd_unlimit_taobao.mp4

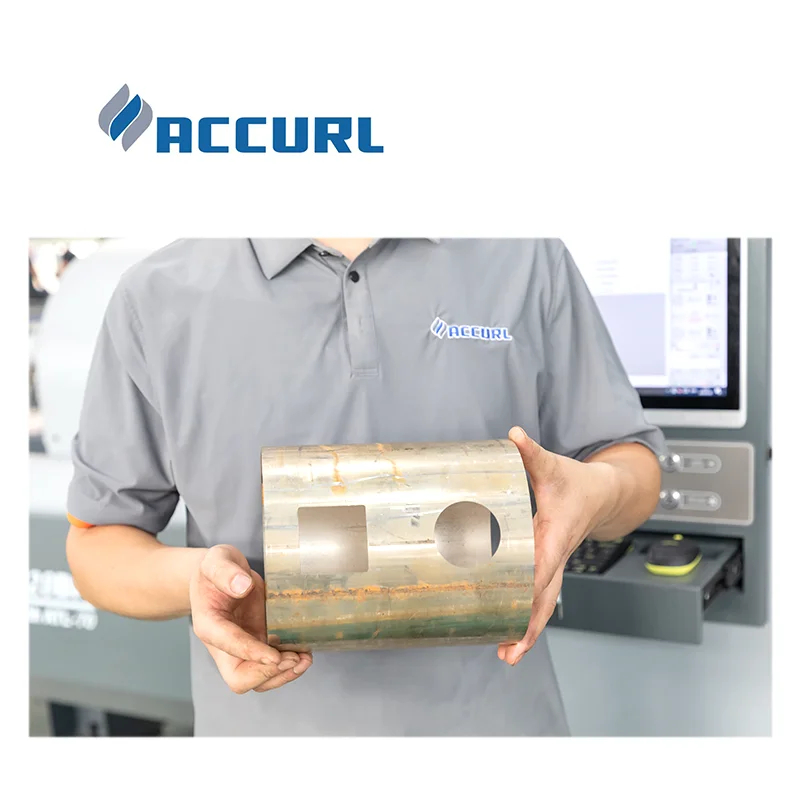

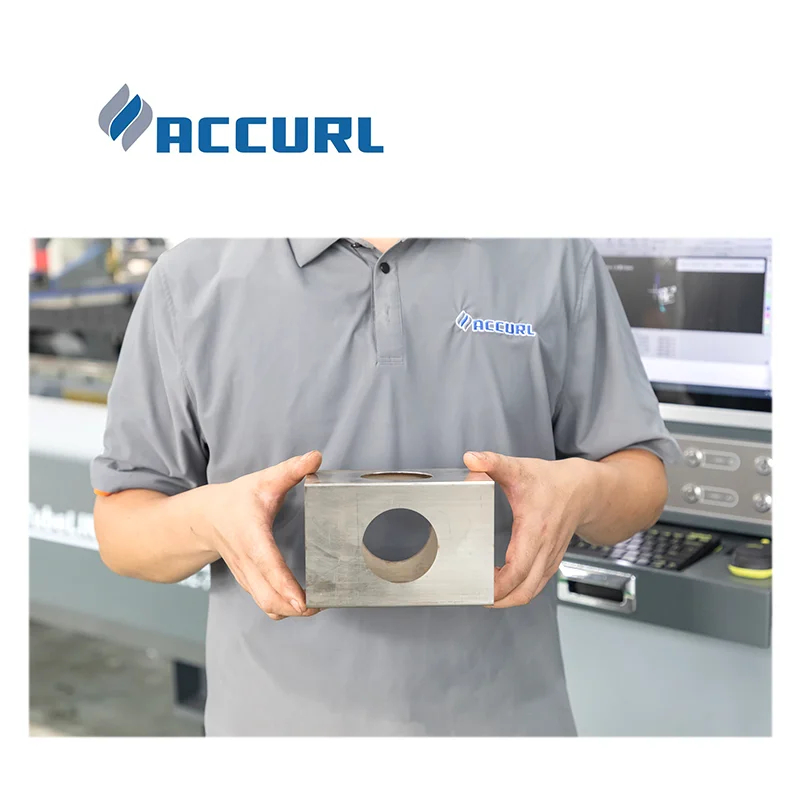

  • Applicable Material : MDF, Metal, Crytal
  • condition : New
  • laser type : Fiber Laser
  • Cutting Speed : 10m/s
  • graphic format supported : AI, Dst, Dwg, DXF, DXP, LAS
  • cutting thickness : 100mm
  • cnc or not : Yes
  • cooling mode : Water Cooling
  • place of origin : Anhui, China
  • brand name : ACCURL
  • laser head brand : Precitec
  • servo motor brand : Yaskawa
  • guiderail brand : Rexroth
  • control system brand : Beckhoff
  • weight kg : 8000
  • Key Selling Points : Energy saving
  • optical lens brand : Might
  • warranty : 3 years
  • mode of operation : continuous wave
  • configuration : gantry type
  • products handled : Sheet Metal and Tube
  • feature : Automated Loading
  • Control Software : cypcut controller
  • After-sales Service Provided : Engineers available to service machinery overseas
  • Laser type : USA IPG Fiber BK-6000w
  • Linear guide : Taiwan HIWIN
  • Reduction Gears : French MOTOREDUCER
  • Transmission : Taiwan YYC gear and rack
  • Laser head : Swiss Raytools auto-following
  • Table-driven system : Japanese Yaskawa Servo Motor & Driving System
  • Total Power consumption : Accurl Laser Professional Laser Cutting Software
  • Product name : Fiber Laser Metal Cutting Machine

Products Description

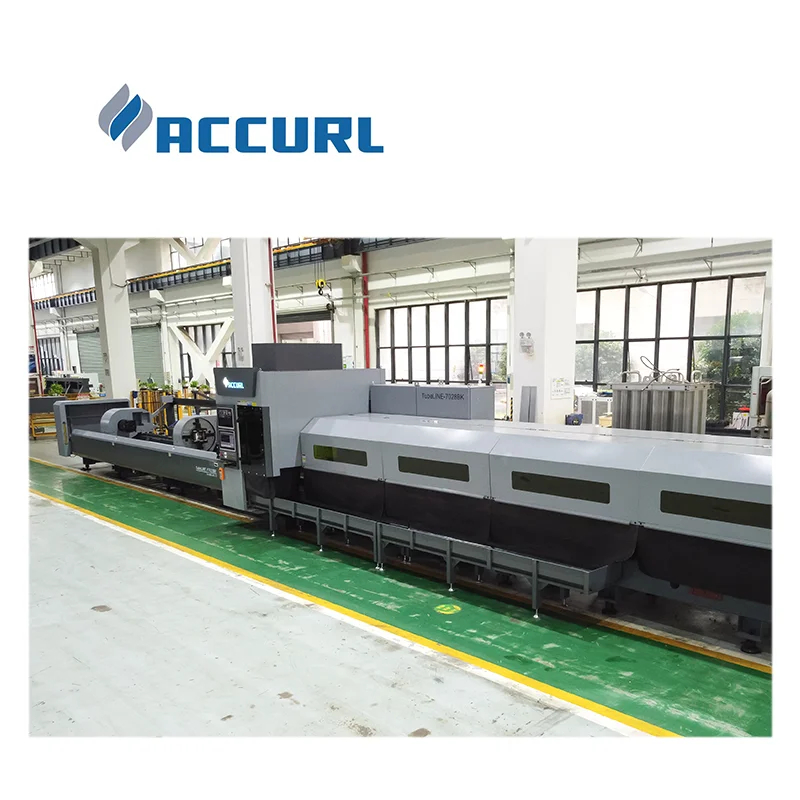

ACCURL TubeLINE BK Series FIBER LASER TUBE CUTTING MACHINE

ACCURL TubeLINE BK Series is a compact and efficient tube cutting solution with advanced technical features for optimal performance.It offers versatility, ease of use,& best-in-class engineering for processing various tube shapes. Ideal for frequent production changeovers and adapting to different materials. Invest in TubeLINE for a profitable cutting solution

Intelligent operation system, with tubes graphs warehouse and integrated splicing process of multiple tubes. Professional control system, to realize intelligent cooperation of machine tools. Butler-type machine tool debugging and maintenance plan, safe and reliable. Tube cutting graphics flattening and other rich cutting auxiliary functions, convenient and intuitive.

STANDARD:

Machine Model: TubeLINE-SERIES Laser Cutting Head:ACCURL BLT Series Auto Focus Laser Sources: IPG & MAX Photonics Material Size Range: Round tube 15-500mm For LoadMaster Tube: 6M / 7M / 9M / 12M

Maximum Tube Length & Weight: 12000mm, 1200kg Motion System: Yaskawa Servos & Drivers – X,Y,Z Axis X.Y.Z axis position accuracy: ±0.02mm User Interface HMl：ACCURL 21.5”Touch Screen with Camera Display

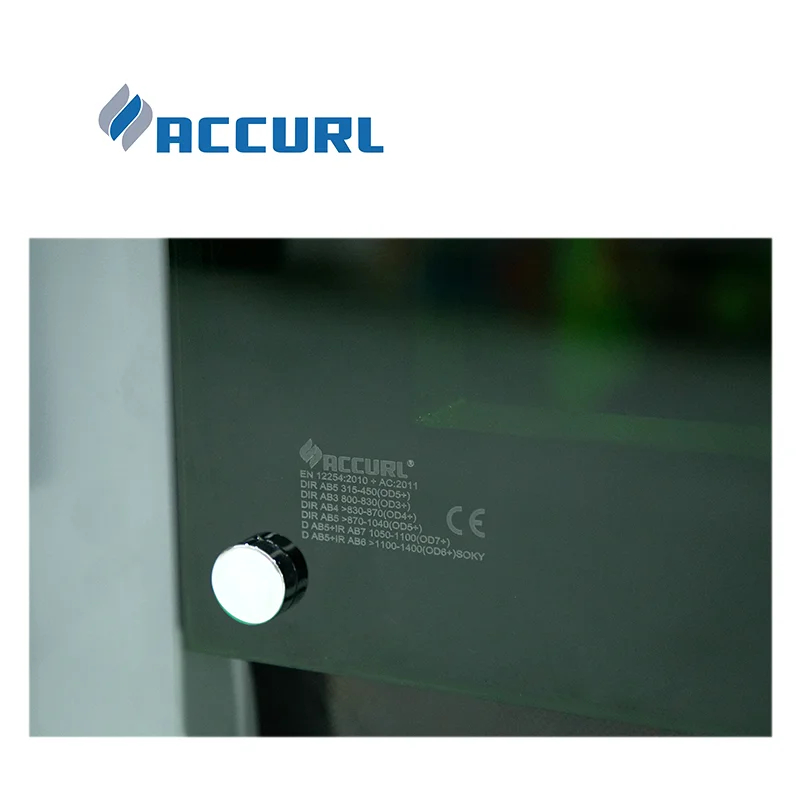

Fume Extraction：With Optional Dust Collector Class IV safety system and CE marking

MACHINE BODY

ACCURL steel frames bed adopts welding structure, rough machining after annealing, then vibration aging treatment, and then finishing, can completely eliminate the stress of welding and machining,good rigidity, high precision, can maintain long time use without deformation.

CHUNKS AND CLAWS

Two high quality rotate chuck move with synchronous rotation, which ensure tube holding more steady . It reduce tube vibration to minimum, with solid guarantee for high accuracy in complicate tube figure.Suitable for cutting tube with diameter range from Ø20mm to Ø320mm.

FRONT CHUNKS

The X、Y、Z linear Axis and A、B rotary Axis both adopt imported large torque servo motor, high precision, high speed, large torque, large inertia, stable and durable performance, which ensures the high speed and acceleration of the whole machine.

MEDIUM CHUNKS

The three chuck real-time to maintain the pipe before and afterthree-point clamping positioning, cutting space-time running speed can achieve max stable cutting, relative cutting efficiency to be high.

REAR CHUNKS

Independent research and development of the chuck with good sealing and motion characteristics, can hold square tube, round tube, elliptical tube, flat tube, triangle tube, I-beam and other materials.

CNC CONTROL SYSTEM

The FSCUT-5000 laser cutting control system of an tube laser cutting control system. Widely used in the field of metal and nonmetal laser cutting. Because of its outstanding performance in the field of fiber laser cutting, by the vast number of high-end users.

BLT4XX SERIES CUTTING HEAD

Bevel Cutting

One Time Forming

With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45° Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.

Water Cooling

Full BodyWater Cooling

Cover 90% of the cutting head to improve cutting stability.

Closed-Loop Monitoring

Smarter and More Ecient

Built-in multi-sensor,realtime closed-loop intelligent monitoring,rapid diagnosis of problems and early warning.

Gas Pressure Monitoring

More Stable Cutting

Real-time monitor the gas output to reduce the impact on the cutting quality.

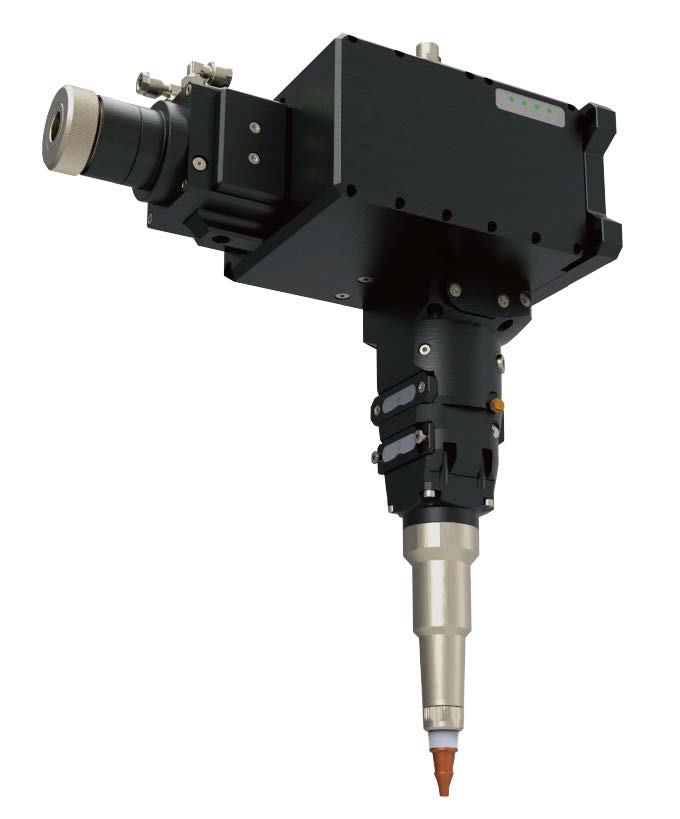

BLT5 Series Pipe/Bevel Cutting Head

BLT5 SERIES PIPE/BEVEL CUTTING

Bevel Cutting

One Time Forming

With AB swing axis can support cutting V,Y, X and other types of bevels,maximum ±45° Bevel and one time forming,reducing beveling process,reducing cost and increasing eciency.

The maximum ±45 bevel cut can be achieved. The B LT5X0H (250 focal length) can cut I-beams up to 400mm x 400mm inone pass, reducing the beveling process andimproving eciency.

L-Shape

Stronger Sealing

L shape cutting head can reduce the oscillation angle of the fiber, enectively extend the fiber life.

Collision Protection

Easy Maintenance

Replaceity ourself and lower the cost to return it to the manufacture.

Gas Pressure Monitoring

More Stable Cutting

Real-time monitor the gas output to reduce the impact on the cutting quality.

AUTOMATIC LOADING SYSTEM

SEMI-AUTOMATIC LOADING SYSTEM SAT-60

*Transmission module: Place the pipe on the loading belt manually and the belt will transport the pipe forward.

* Material Misalignment module: The pipe is separated from the root, misplaced to the loading jaws.

* Loading module: The loading jaws send the pipe to the loading support of the main bed one by one.

* Loading Size: The size range of loading material is Ø25- Ø120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs.

AUTOMATIC MECHANICAL LOADING SYSTEM ATL-60

* Height Limit module: Automatically distinguish the long and short sides of the rectangular tube to ensure that each rectangular tube is laid flat and forward.

* Material framemodule: The whole bundle of pipes is hoisted and loaded into the material frame.

* Length measuring module: Flatten the pipe to the length of the pipe and transfer the date to the host.

* Loading Size: The size range of loading material is φ25-120,square pipe 25-120,can load round pipe,single pipe bearing 120Kgs. The first loading time is less than of equal to 70s,and the subsequent loading time is less than or equal to 20s.

Specification

Model
TubeLINE A Series
TubeLINE BK Series
TubeLINE D Series
Power
1500W~6000W
6000W~15000W
Processing range
φ240
φ200 | φ280 | φ320
φ360 | φ500
For LoadMaster Tube
6000mm
6000mm / 7000mm / 9000mm
9000mm / 12000mm
Max no-load running speed
100m/min
100m/min
101m/min
Max idle speed
100r/min
100r/min
85r/min
Max mass of single pipe
250kg
350kg
1200kg
For unloading
≤2000mm
≤3000mm / 6000mm
≤6000mm / 9000mm / 12000mm
