New SmartLINE 2D Fiber Laser Cutting Machine 3000w for Sheet Metal cutter Laser

Description

ACCURL offers fiber laser cutting solutions that meet all expectations and cutting needs for a wide range of sizes 3015 / 4020 / 6025, materials and thicknesses. With maximum performance and low maintenance.

The Accurl fiber laser cutting machine family of products is complete with self-loading, unloading and automatic storage systems, which make productivity multiply by automating cutting processes.

Optional for The fiber laser cutting machine for tube. Tube Laser Cutting, be able to process tubes from ø20mm to ø210mm and square profiles, in addition to the possibility of cutting both closed and open.

Laser Source: RAYCUS / IPG 1000w ,1500w, 2000w ,3000w ,4KW, 6KW Fiber Laser Optional: Laser Pipe /Tube Profile Cutting System PHOTO: New SmartLINE 2D Fiber Laser Cutting Machine 2kW for Sheet Metal cutter Laser

ACCURL offers fiber laser cutting solutions that meet all expectations and cutting needs for a wide range of sizes 3015 / 4020 / 6025, materials and thicknesses. With maximum performance and low maintenance.

The Accurl fiber laser cutting machine family of products is complete with self-loading, unloading and automatic storage systems, which make productivity multiply by automating cutting processes.

Optional for The fiber laser cutting machine for tube. Tube Laser Cutting, be able to process tubes from ø20mm to ø210mm and square profiles, in addition to the possibility of cutting both closed and open.

STANDARD EQUIPMENT

• BECKHOFF ® 17″ Multi-Touch Displays Control System
• YASKAWA ® Highly dynamic EtherCAT servo drive
• PRECITEC ® LightCutter 2.0 Motorized Cutting head
• ACCURL® Dynamic System 4.0: 2G Acceleration
• ACCURL® Fast piercing 2.0: Ultrafast perforation
• Automatic table exchanger 3015(Backwards and Forwards)
• Graphite Anti-burn Technology
• Automatic nozzle cleaning 1.0
• Class IV safety system and CE marking
• Full automatic voltage regulator System
• CE Norms:Protective Measures with Real-time monitoring camera
• BECKHOFF ®Embedded PCs: Industrial PCs with directly integrated I/O level
• Industrie 4.0 for sheet metal working with TwinCAT Analytics and TwinCAT IoT

BECKHOFF TwinCAT CNC CONTROL SYSTEM

PC-based control technology:

• The ACCURL Masterline Fiber Laser is controlled with a Beckhoff CNC control unit which provides unprecedented control of the cutting process.
• EtherCAT and eXtreme Fast Control (XFC) technology enable fast switching functions at high processing speeds.
• Beckhoff CNC controllers are used in laser cutting machine and the TwinCAT NC I/CNC automation software is ideally suited for application-specific functions, including adaptive jet control, reverse travel or path resetting.
• Industrial PC with Multitouch touch screen 19”.
• High-speed EtherCAT communication
• TwinCAT: software for engineering and runtime
• Highly dynamic servo drive technology
• The Beckhoff hardware and software platform
• Integrated retention brake control.
• Automatic adaptation of parameters.
• Adjustable error reaction.
• Motor feedback for absolute position registration.
• EtherCAT I/Os: broad I/O spectrum in IP 20 and IP 67 protection rating
• Industrie 4.0 for sheet metal working with TwinCAT Analytics and TwinCAT IoT

READY FOR INDUSTRY 4.0(EXCLUSIVE)

ACCURL puts industry 4.0 within the reach of companies™

As a benchmark company in Industry 4.0, TCI Cutting will show the latest innovation in fully digitized industrial precision cutting system, as well as the powerful software it designs and develops to achieve intelligent and advanced manufacturing.

Our involvement in digitization and , includes the display of the latest machine launched on the market, Smartline Fiber 3015. Where you can check at first hand its great production capacity and excellent cutting quality according to the power of the laser, in thin sheets of medium thickness. The high energy efficiency of the fiber laser machine, guarantees a very low electricity consumption. This fiber laser cutting machine satisfies the expectations or needs of cutting for different types of measures, materials and thicknesses with highest performance and low maintenance.

Click to download DELEM DA66T DA69T CNC control brochure

LASER CUTTING HEAD PRECITEC PROCUTTER 2.0

As main characteristics:

• The new ProCutter 2.0 generation impresses with its increased performance and new automation features. Faster, easier, more efficient, more enduring – this is how laser cutting is shaping up in the new generation, due to numerous developments.
• The ProCutter 2.0 APP is used to visualize the state of the laser cutting head and the query of error messages.
• The reliability and power capability has been perfected – up to the maximum laser power of 15 kW. By default, the ability to exchange the nozzles automatically is now provided. Automated piercing with the PierceTec technology package ensures a fast, clean and reproducible process.Due to direct water cooling (CoolTec) of the sheet metal, permanent stable mild steel cutting is possible.
• Lightweight and slim design created for fast acceleration and cutting speed
• Drift-free, fast-reacting distance measurement
• Permanent protective window monitoring
• Automated piercing with PierceTec
• Water cooling of the sheet metal with CoolTec
• Completely dust proof beam path with protective windows
• LED operating status display
• Output of all sensor data via WLAN to APP and machine control possible
• Pressure monitoring in the nozzle area (gas cutting) and in the head
• Motorized focus position adjustment for automatic machine setup and piercing work

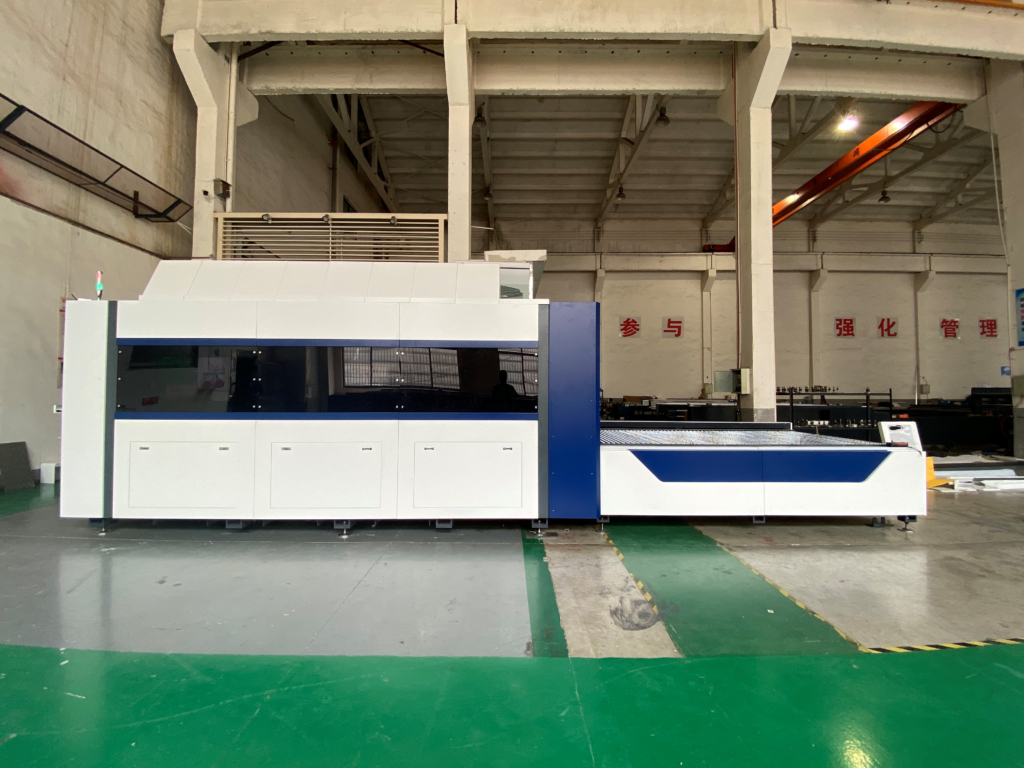

AUTOMATIC NOZZLE CLEANING SYSTEM

• After a predefined number of contours, the nozzle automatically performs self-cleaning,without need for the intervention of an operator.
• Keeping your machine cutting quickly and cleanly is important. Our nozzle cleaner helps improve the life of your nozzles so your cuts stay consistent, longer

AUTOMATIC LOADING & UNLOADING SYSTEM WITH TOWER

• Accurl Loader & unloader System 2.0 is the automated solution that best optimizes the flow of material, which improves both the safety at work and the safety of the process. The solutions included range from simple operation to fully automated operation.
• Fast processing of the order, since the automatic loading and unloading reduces the preparation times.
• Considerably greater use of machinery with only a slight increase in investment.
• Access to the production of parts with little manual work.
• Automatic loading / Unloading system SMART-LIFTER
