ACCURL Factory Price Master Line Series 10000W CNC Fiber Laser Cutting Machine

https://gv.videocdn.alibaba.com/4f4e1c368ac918af/41f749f59462fdb0/20230114_422a5e99125c3a7c_395109851685_mp4_264_hd_unlimit_taobao.mp4

• Applicable Material : MDF, Metal, Crytal
• condition : New
• laser type : Fiber Laser
• Cutting Speed : 100m/min
• graphic format supported : AI, DXF, Dst, Dwg, LAS, DXP
• cutting thickness : 100mm
• cnc or not : Yes
• cooling mode : Water Cooling
• place of origin : Anhui, China
• brand name : accurl
• laser head brand : Raytools
• servo motor brand : Yaskawa
• guiderail brand : HIWIN
• control system brand : Cypcut
• weight kg : 15000
• Key Selling Points : High-accuracy
• optical lens brand : Might
• warranty : 3 years
• mode of operation : continuous wave
• configuration : gantry type
• products handled : Sheet Metal and Tube
• feature : Deep marking
• Control Software : Cypcut Control System
• After-sales Service Provided : Engineers available to service machinery overseas
• Laser type : IPG fiber laser generator from USA
• Laser wavelength : 1070nm
• Laser power output rating : 6kw-20kw
• X-axis travel : 1500mm
• Y-axis travel : 3000mm
• Working table : Open design, fixed table

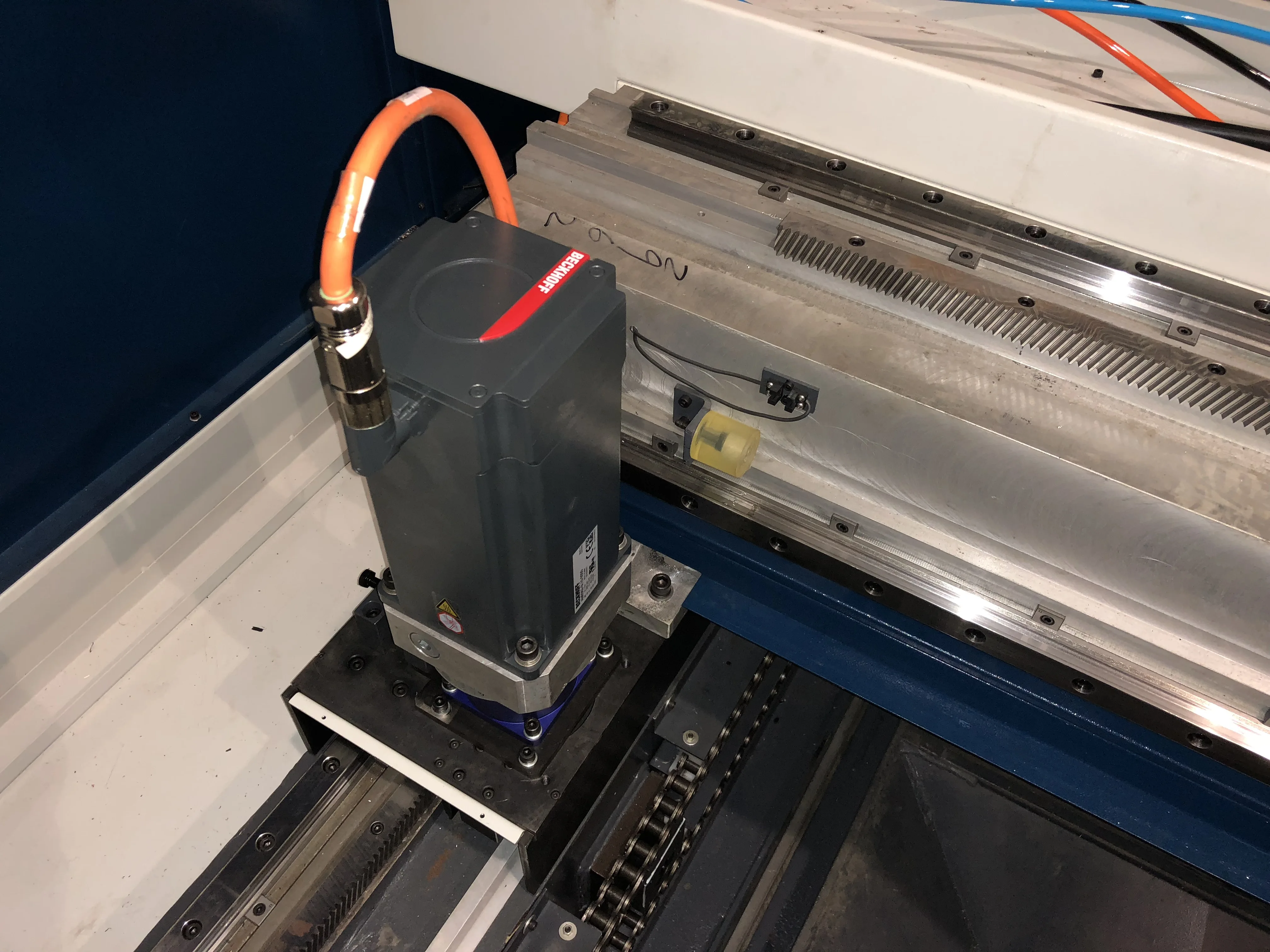

• Driving mode : Double rack and pinion driving system
• Control system : Cypcut Control System

ACCURL 10KW Fiber Laser Cutting Machine for High Power 10000W Fiber Laser Cutting stainless steel

ACCURL® assemble their lasers cutting machine 2000w/3000w/4000w/6000w to the strictest quality standards with nothing but world class components to ensure lasting quality at an attractive price.

SmartLine is the general purpose 2D laser cutting machine by Accurl utilized around the globe across a multitude of applications, manufacturing demands, and budgets. Available in five sizes and with laser powers ranging from 1,000W to 6,000W fiber Laser.

The following elements are included:

• Laser Cutting Head: Raytools laser cutting head;Precitec Cutting head • CNC Controller: CypCut Fscut 2000 CNC System; BECKHOFF TwinCAT Touch Screen Control System

HYPCUT Touch FSCUT8000 TwinCAT CNC System

• Cutting Area: 3000x1500mm, 4000×20000mm,6000x2000mm,6000x2500mm • Cutting Speed: Max 100m/min; Positioning: 140m/min; Accelerations:1.6G

FULLY ANNEALED FRAME

ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion.Auto changing pallet system allows over 1800kg loading weight.

A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.

GRAPHITE ANTI-BURN TECHNOLOGY

The area in the entire machine tool where the laser can shoot at isall covered and protected by 20mm thick graphite anti-bruning.To insuring the machine bed and working table not be out of shape and burned-out.

DUST EXTRACTION SYSTEM

This system is used to filter dry dust from industrial leaks, in accordance with VDI guidelines 3677, paragraph. The filter elements use compact porous filters. In many countries it is forbidden to circulate filtered air during the cutting of stainless steel CrNi. Therefore, it is recommended that the user install air ducts to the outside.

PROFILE & PIPE CUTTING SYSTEMOPTIONAL

The Smartline series offers unparalleled versatility.accurl optional tube and pipe cutting system has the capability to precisely cut pipe/tube and makes it a necessity for anyone who needs precision parts made from various materials, sizes, and thicknesses.

IPG 6000W Ytterbium Laser Resonator
