ACCURL Power Press Mechanical Punching Machine Automatic Pneumatic Source for Aluminum Foil Container Line

Ask about this machineSpecifications
Accurl Power Press Mechanical Punching Machine Automatic Pneumatic Source For Aluminum Foil Container Line

Specifications

nominal force (kn)1250

Description

Details

https://gv.videocdn.alibaba.com/7c569251818fbca4/4HejUjUslNGo5fmAb7e/AkZFTBfjJb5KMnuH4HC_280362421762_hd_hq.mp4

  • cnc or not : Normal
  • machine type : Punching Machine
  • slide stroke mm : 300
  • power source : Mechanical
  • place of origin : Anhui, China
  • brand name : AccurL
  • voltage : 380V/220V Optional
  • dimensionl*w*h : 3540mm*2200mm*2570mm
  • motor power kw : 7.5
  • model number : JH25-125
  • weight t : 9
  • key selling points : Multifunctional
  • warranty : 3 years
  • machinery test report : Provided
  • video outgoing-inspection : Provided
  • core components : Bearing, Pump, Gear, motor
  • After-sales Service Provided : Engineers available to service machinery overseas
  • Capacity : 125tons
  • Motor Power : 7.5kW
  • Main power : Siemens Electrical
  • Programmable logic controller PLC : OMRON from Japan
  • Pneumatic component : TACO, Japan, CE
  • Hydraulic overload : Germany
  • Main motor : Siemens Electrical
  • Keyword : punching press
  • Function : Steel Metal Punching

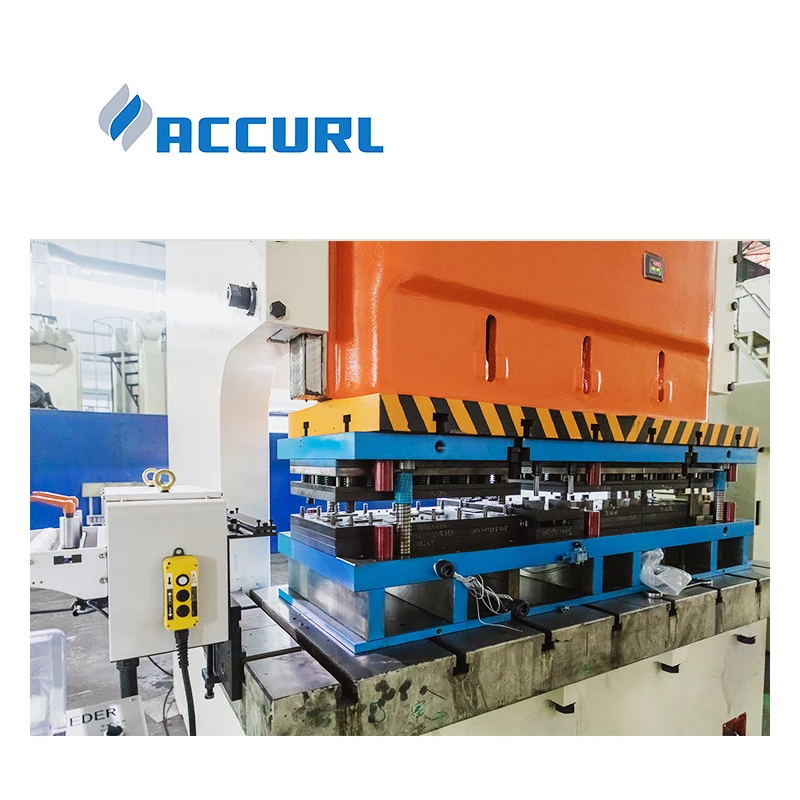

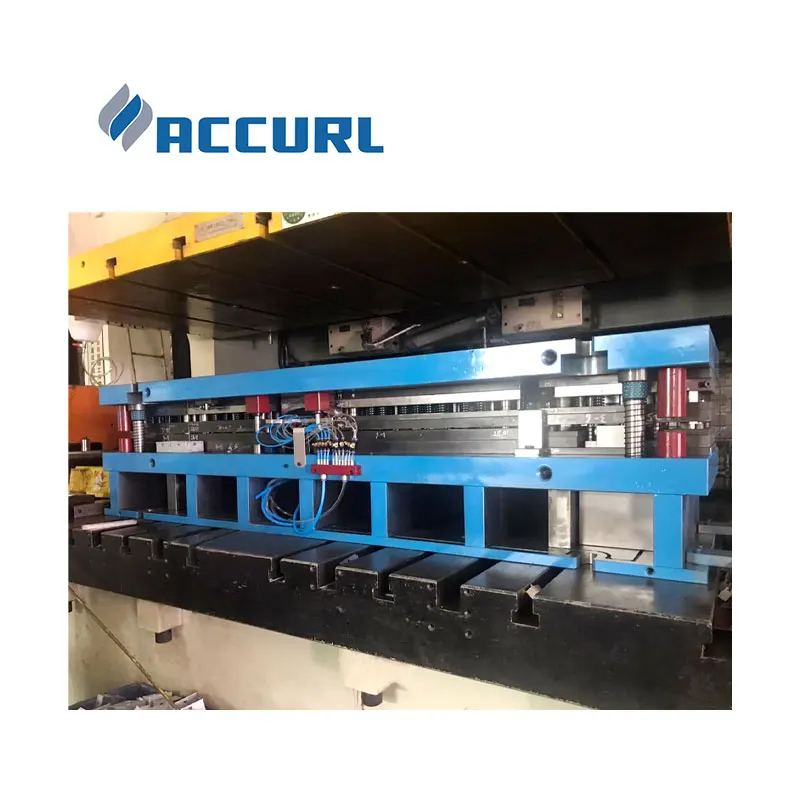

ACCURL Fully Automatic Aluminum Foil Container Making Machine

1. The body will be tempered to eliminate the internal stress of the material.

2. The gear part adopts a spur gear transmission mechanism, and the material is made of high-strength alloy steel, and the corresponding heat treatment is performed.

3. All bearing bushes are made of copper and wear-resistant materials.

4. Low noise: All transmission gears are ground by a German brand precision grinding machine, guaranteeing their engagement ratio and improving high service life.

1. Adopt high torque wet type friction clutch featuring stable operation, low noise, long service life and high safety and reliability;

2. Ultra-large bolster machine tool, suitable for production of large area sheet and automatic progressive die, increasing the working efficiency; 3. High quality steel plate welded frame to considerably enhance the body strength and rigidity; 4. Adopt double crankshaft reverse driving to enhance the eccentric load resistance of machine tool; 5. Adopt 6-face rectangular guideway with favorable guidance performance and high accuracy. 6. Electrical adjusted mold and reading accuracy to 0.1mm; 7. Adopt centralized lubrication and is equipped with circulation indication device;PLC, encoder, mechanical cam control; Optional components: output shaft, air cushion, slide knockout, automatic feeder and other devices.

Details Images

Air Clutch

Different from traditional mechanical punch machine ,our machine can be equipped with the machine, with this air clutch the machine to stop at any time at any position.

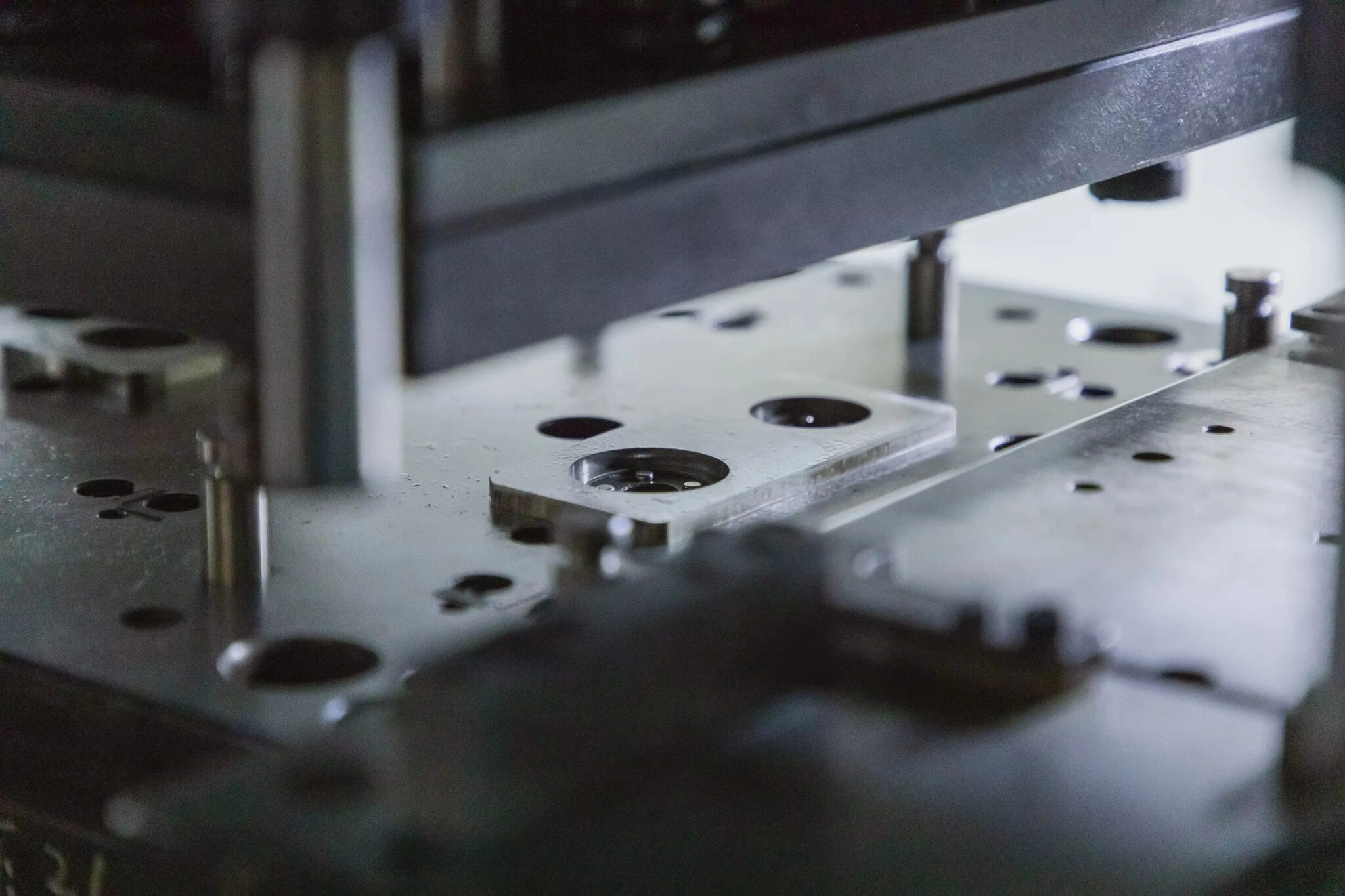

Machine Worktable

The surface of our machine worktable is strictly polished three times. to ensure the smooth surface and high levelness. to ensure that the products produced are more beautiful and accurate. our inspection standard is according to European standard.

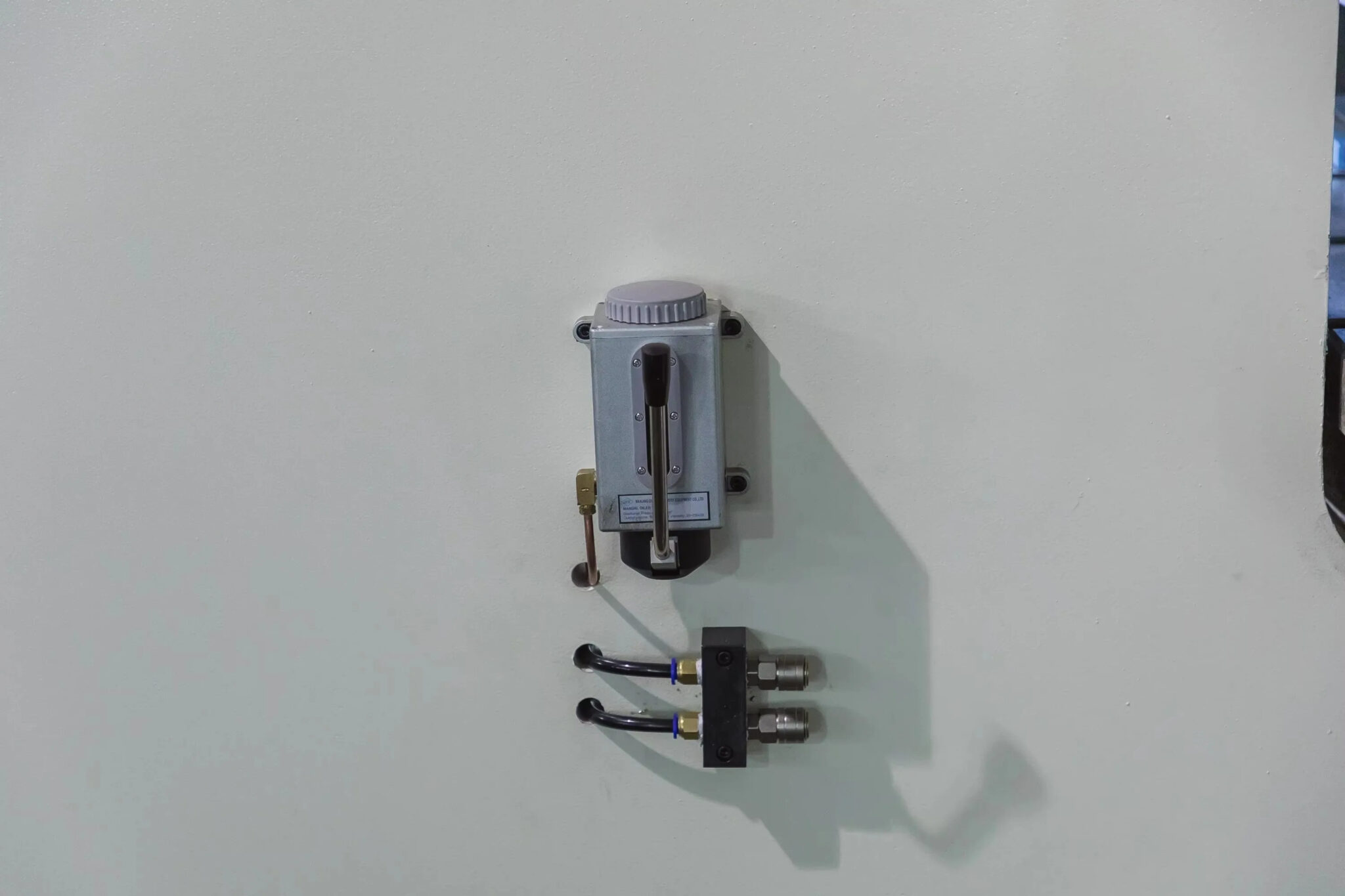

Auto Lubrication System

With this device, it can realize machine lubrication automatically, no need to manual lubricate, to avoid damage to the machine when you forget to lubricate.

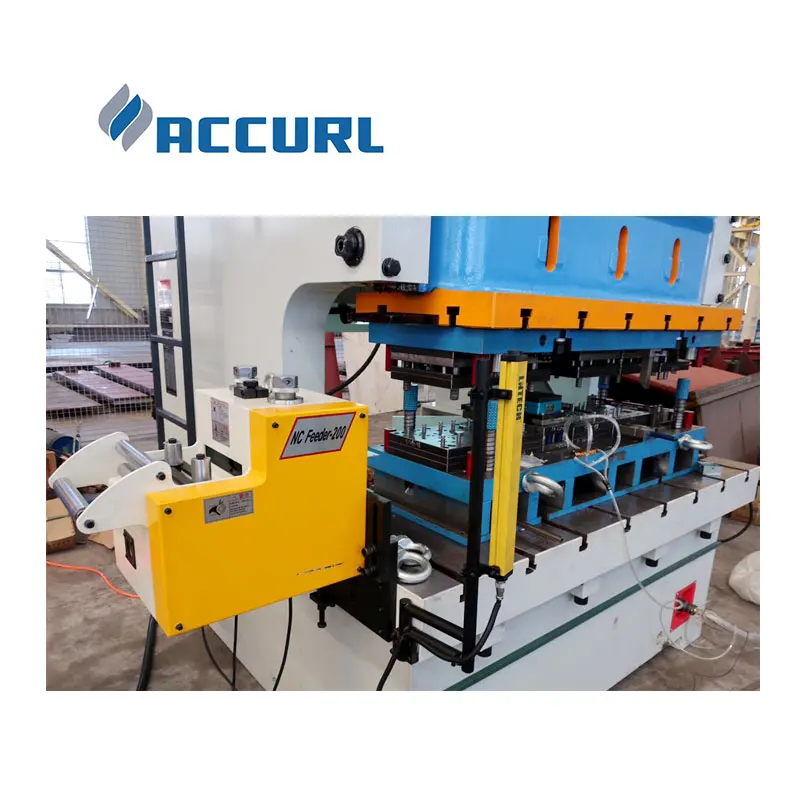

Photoelectric protector

Press with a photoelectric protection device, high detection accuracy,to protect the operator’s personal safety.

SPECIFICATION

Advantage:

1. Top Safety and long lifetime,high precision control of feeding step and speed.

2. Add oiling device (stamping oil) to save cost 3. Wet clutch, long service life, low noise 4. The replacement of the mold is convenient and easy to change. 5. It’s suitable for large size single cavity,medium and small size multi-cavity molds. 6. Novel design for the roller of stacker,to assure the stronger stability. 7. Emergency stop with the automatic detection.

Type
Throat Depth/mm
Motor/kw
Weight/T
Nominal/kn
JH21-25
210
3
4
250
JH21-45
225
5.5
5
450
JH21-60
270
5.5
6
600
JH21-80
310
7.5
8
800
JH21-100
330
7.5
9
1000
JH21-125
For more details, please contact our sales representative. We will provide you with the best solution.
