CNC Servo Driven Ram Turret Punch Press MAX-SF-50 ton for Superior Performance Servo CNC Punching Machine

With Accurl30 or 50 tons high speed servo hydraulic punching head, sheet dimensions 2500 x 1300 mm and rotation axis for all tools, the MAX-SF is the perfect CNC turret punching machine. The large fully-brushed sheet support tables and the standard repositioning cylinders, allow for standard sheet sizes to be processed easily.

Ask about this machineSpecifications
CNC Servo Driven Ram Turret Punch Press MAX-SF-50 ton for Superior Performance Servo CNC Punching Machine

Description

MAX TSeries

A punching machine that converts your workshop to achieve its highest productivity

HIGH PERFORMANCE

Flexibility In Multi Tools:

ACCURL®MAX-SF Series CNC punch press machine is new generation for Servo Hydraulic series, inherited the features of high reliability and durability from series HP. With Germany H+L advanced servo hydraulic system, its powerful punching capacity is good for thick sheet. Multi-functional for punching, forming, roller cutting and tapping, substantial reduce the stand-by time and increase material utilization. Furthermore, high speed, high accuracy, energy saving, and high integrated assembly construction, efficient reduce maintenance cost.

Advanced ServoSystem:

Complex Multi-Tools Auto Index Technology:

Standard Equipment:

  • Advanced CNC Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
  • To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
  • Uniquely designed Machine structure ensures less preventive maintenance
  • The AC punch servo motor can be programmed for various applications. High speed applications Low noise applications Forming applications
  • The punch servo utilizes a direct drive gearbox that supplies power and speed,the servo allows the user to steplssly adjust the punch stroke and accommodate any pressure curve requirements.
  • Synchronized dual servo motors for controlling the auto index functions.
  • 2 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
  • Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
  • 24 various size stations including 4 Auto Index stations Multi Tools.Therefore, a total of 24 to 52 tools can be employed.
  • Capable of running wheel, marking, grooving and forming Tooling.
  • The ACCURL is compatible with thick turret tooling,the wide variety of specialty tools com-bined with the programmable ram means the ACCURL can deliver for any application.
  • Accurl Direct Drive servo punch system
  • Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors
  • 3 automatic repositioning clamps and loading switches.

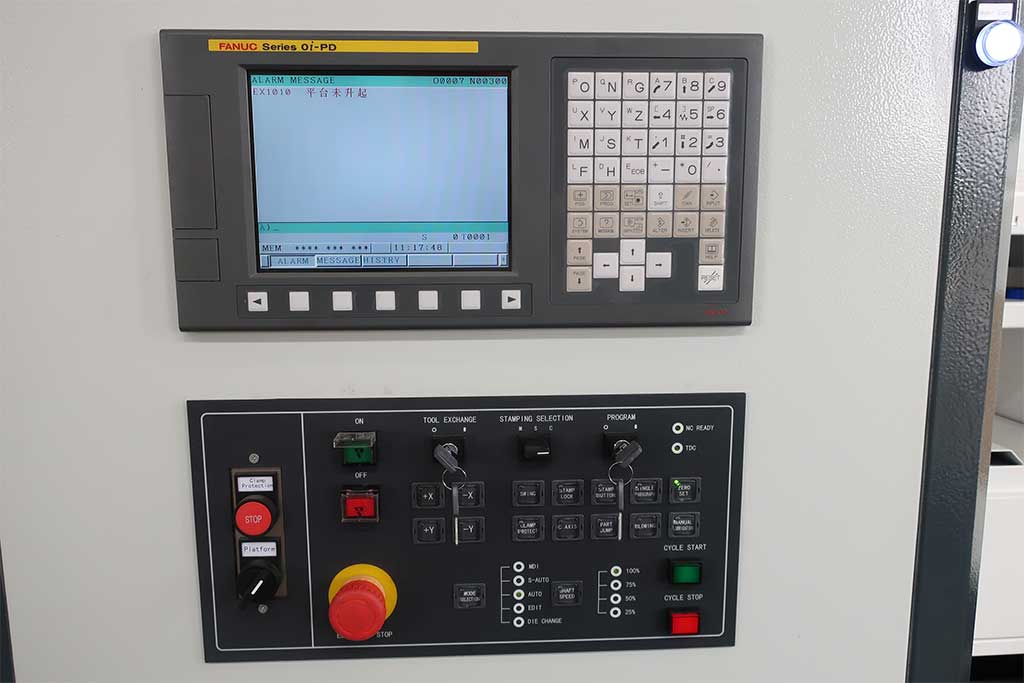

  • FANUC Series Oi-PO CNC Control System
  • Aluminum workholder
  • Tool lubricating system (Airblow).
  • Free standing control panel.
  • Control with foot pedal.
  • Tools stuck safety system
  • 1 software (Lantek orRADAN software).
  • 24 or 42 turret stations
  • Digital oil temperature indicator.
  • Software for using wheel and forming tools.
  • Sheet jumping switches
  • Scrap box.
  • Chain protection around the machine (safety system).
TURRET CONFIGURATION
Turret Configuration A B C D D-AI
32 Station-2 Auto Index 16 12 2 0 2
32 Station-3 Auto Index 16 12 1 0 3
42 Station-4 Auto Index 20 16 2 0 4
52 Station-2 Auto Index 30 14 4 2 2

Technical Specifications

Item Unit MAX-SF-50T
Punching Capacity Ton 50
X Traverse Length mm 2500±10
Y Traverse Length mm 1250±10
Max sheet Size mm 1250×4980
Max sheet Thickness mm 8.35
Max Mass of Material kg 110
X Axis Traverse Speed M/min. 100
Y Axis Traverse Speed M/min. 80
Max Traverse Speed M/min. 128
Punching Speed at 25mm pitch hits/min. 450
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 1200
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 32 / 42 / 52
Number of Auto Index Stations pcs(type) 4(2B+2C) / 3(2B+1C) / 2(1B+1C)
Turret Rotating Speed rpm 33
Auto Index Rotating Speed rpm 100
Ram Stroke Distance mm 0-31
Working Table Brush
Number of Sheet Clamps pcs 3
Air Supply NL/min 250
Air Pressure bar 6
Oil Tank Volume Litre 275
Machine Dimension (L x W x H) mm 5940x5220x2420
Net Weight (approx.) kgf 15,000
Size of Control Cabinet mm 1350x700x2185
CNC Controller FANUC Oi-PD
Number of Controllable Axis Axis 4
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
