CNC Punching Machine, choose between our well known MAX-series machines and the T-series classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.

REQUEST INFORMATION

Description

CNC Punching Machine

MAX TSeries

Complex Multi-Tools Auto Index Technology

HIGH PERFORMANCE

CNC Punching Machine, choose between our well known MAX-series machines and the T-series classical thick-turret style, Accurl proudly offers a full range of punching solutions both in performance and price range.

ACCURL®MAX-T Series punch press offers an O-frame and is characterized by rigidity and high geometric precision. It features a capacity of 30 metric tons and is able to work in mild steel thicknesses up to 6,5 mm.

Advanced Hydraulic System

  • The well engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards.  The HS3 electronic stoke control is controlling the speed and stroke of the 30 tons hydraulic punching head.
  • Uniquely designed Machine structure ensures less preventive maintenance.

Turret Structure with Multi-Tools

  • The auto indexable stations have a dual lead worm structure. the worms are custom machined in pairs and are highly accurate. the worm gear’s side clearance can be controlled under 0.001mm and can be adjusted for wear.
  • The turret comes with 4 main layouts from 32 stations to 52 and up to 4 auto indexing stations.
  • Permanently engaged auto index drive system reduces errors and avoids downtime.
  • Each station can be fitted with various brand tools, such as Mate and Wilson.

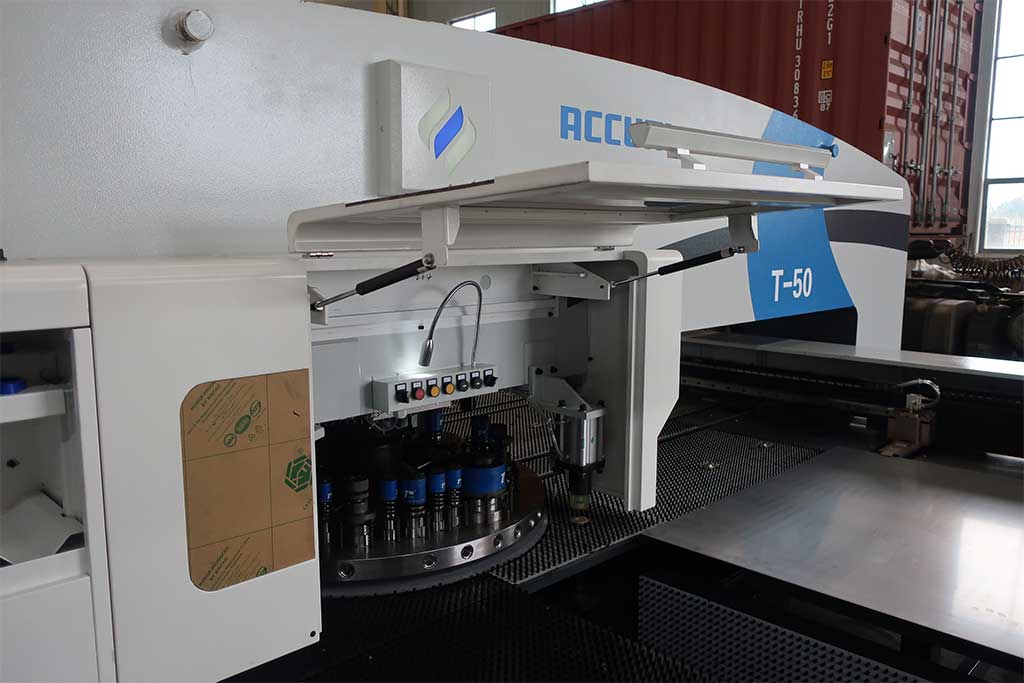

32 Stations 2 Auto index:
ACCURL entry level turret offers a full set of tooling with two auto indexing stations.

32 Stations 3 Auto index:
With one flex station,the 32 station turret can be upgraded with an additional auto index D station.

42 Stations 4 Auto index:
ACCURL most flexible design comes with four auto indexing stations to offer the most advanced material processing capabilities.

CE-Approved

When designing the T-series, the safety aspect has been specifically taken care of. This is done by means of a CE-approved optical detection-system that is placed around the machine working area.



Standard Equipments:

  • FANUC Series Oi-PO CNC Control System
  • automatic repositioning clamps and loading switches.
  • Tool lubricating system (Airblow).
  • Free standing control panel.
  • Control with foot pedal.
  • 1 software (Lantek orRADAN software).
  • User manual and maintenance catalogue.
  • 15 x A station 1/2’’ fixed 1,6-12,7 mm round
  • 12 x B station 1-1/4’’ fixed 12,8-31,7 mm round
  • 2 x C station 2’’ fixed 31,8-50,8 mm round
  • 1 x D station 3-1/2’’ fixed 50,9-88,9 mm round
  • 3 x D station 3-1/2’’ index 50,9-88,9 mm round
  • Digital oil temperature indicator.
  • Software for using wheel and forming tools.
  • Scrap box.
  • Chain protection around the machine (safety system).
  • Hydraulic oil cooling system.

Optional Equipments:

  • Notching and forming tools for various dimensions and forms.
  • Light barrier (for CE standard machines).
  • Additional sheet holding clamps.
  • Multi tools of 3,6,8 stations.
  • Adaptors for various stations (B, C, D).
  • Special coated tools for notching stainless materials (TIN, TICN, TICN Plus, MOVIC).
  • Work chute.
  • Stainless steel table with ball bearing support.



Technical Specifications

Item Unit SF-T 50
Punching Capacity Ton 50
X Traverse Length mm 2490±10
Y Traverse Length mm 1525±10
Max sheet Size mm 1525×4980
Max sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed M/min. 80
Y Axis Traverse Speed M/min. 70
Max Traverse Speed M/min. 105
Punching Speed at 25mm pitch hits/min. 250
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 360
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 34
Number of Auto Index Stations pcs(type) 2(B)
Turret Rotating Speed rpm 30
Auto Index Rotating Speed rpm 50
Ram Stroke Distance mm 0-31
Working Table Brush+Ball
Number of Sheet Clamps pcs 3
Power Supply KVA 26
Air Supply NL/min 250
Air Pressure bar 5
Oil Tank Capacity Litre 180
Size of Control Cabinet mm 1100*535*1980
Number of Controllable Axis Axis 4+1
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
