ACCURL Servo CNC Turret Punch Press MAX-SF-30 ton with FANUC Series Oi-PO CNC Control System

With Accurl30 or 50 tons high speed servo hydraulic punching head, sheet dimensions 2500 x 1300 mm and rotation axis for all tools, the MAX-SF is the perfect CNC turret punching machine. The large fully-brushed sheet support tables and the standard repositioning cylinders, allow for standard sheet sizes to be processed easily.

Description

MAX TSeries

The Perfect CNC Turret Punching Machine

HIGH PERFORMANCE

With Accurl30 or 50 tons high speed servo hydraulic punching head, sheet dimensions 2500 x 1300 mm and rotation axis for all tools, the MAX-SF is the perfect CNC turret punching machine. The large fully-brushed sheet support tables and the standard repositioning cylinders, allow for standard sheet sizes to be processed easily.

FLEXIBILITY IN MULTI-TOOLS

ACCURL®MAX-SF Series CNC Punch Press Machine is the newly developed Multi Index Tools Turret Punch Press equipped with advanced Servo Hydraulic System, introduced by Tailift’s professional R&D and production teams who have been dedicated to machineries for decades. Accurl MAX SF Series CNC Punching machines provides the fastest, flexible and reliable punch press satisfying your expectation of fast and precise sheet metal works.

Advanced Servo Hydraulic System

  • Advanced German made Schneider Hydraulic Servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
  • To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
  • Uniquely designed Machine structure ensures less preventive maintenance.

Complex Multi-Tools Auto Index Technology

  • Synchronized dual servo motors for controlling the auto index functions.

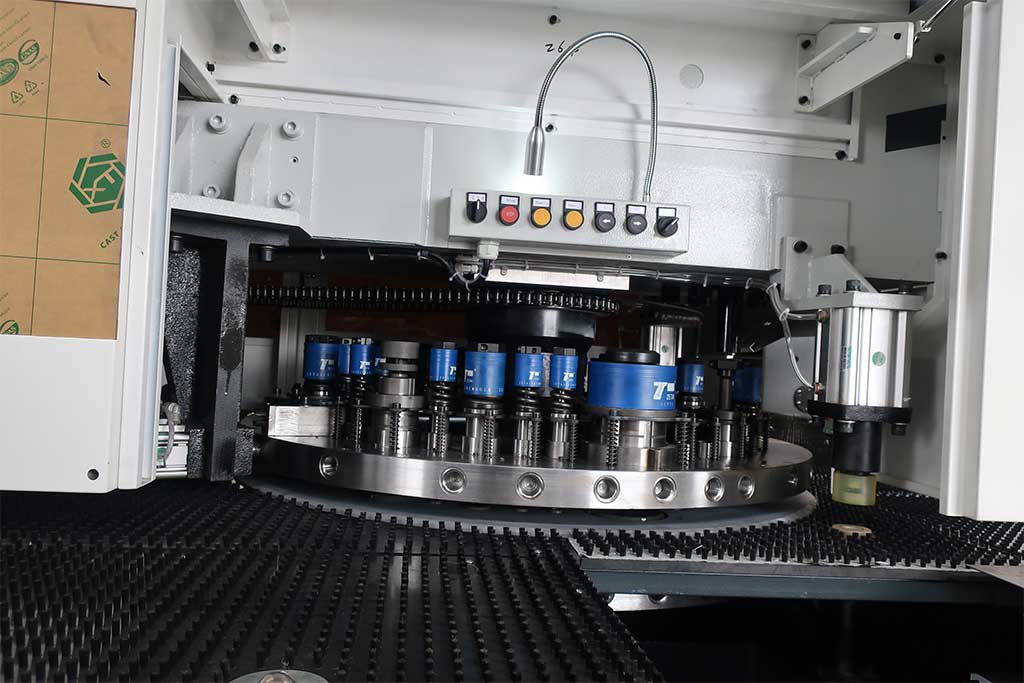

  • 2 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
  • Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
  • 24 various size stations including 4 Auto Index stations Multi Tools.Therefore, a total of 24 to 52 tools can be employed.
  • Capable of running wheel, marking, grooving and forming Tooling.

Standard Equipments:

  • Accurl Direct Drive servo punch system
  • Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors
  • 3 automatic repositioning clamps and loading switches.

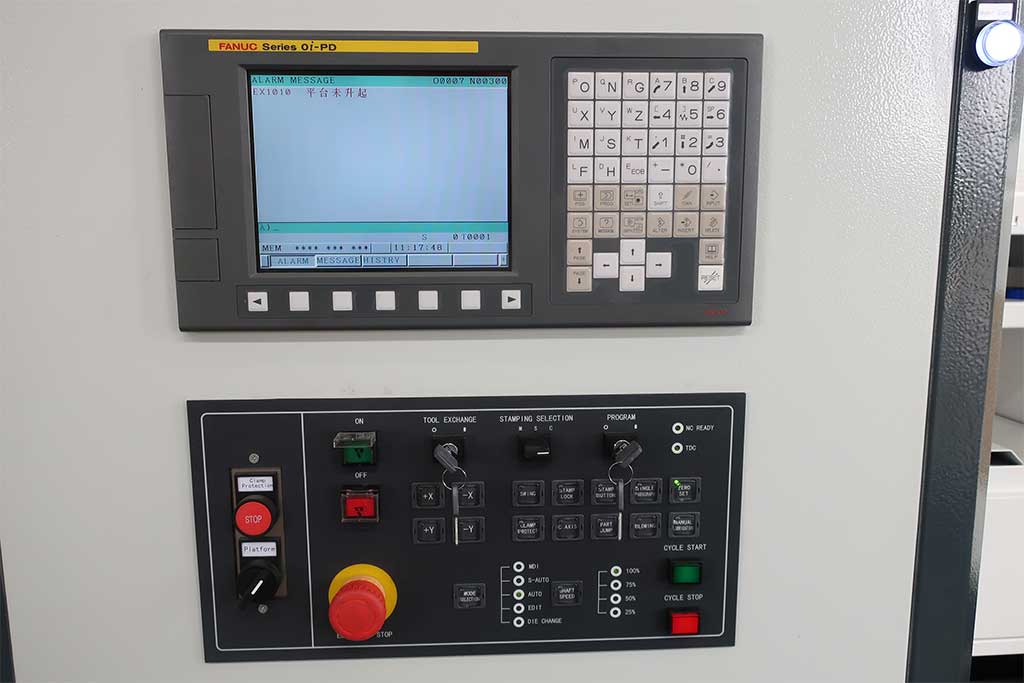

  • FANUC Series Oi-PO CNC Control System
  • Aluminum workholder
  • Tool lubricating system (Airblow).
  • Free standing control panel.
  • Control with foot pedal.
  • Tools stuck safety system
  • 1 software (Lantek orRADAN software).
  • 24 or 42 turret stations
  • Digital oil temperature indicator.
  • Software for using wheel and forming tools.
  • Sheet jumping switches
  • Scrap box.
  • Chain protection around the machine (safety system).

Optional Equipments:

  • Notching and forming tools for various dimensions and forms.
  • Light barrier (for CE standard machines).
  • Additional sheet holding clamps.
  • Multi tools of 3,6,8 stations.
  • Adaptors for various stations (B, C, D).
  • Special coated tools for notching stainless materials (TIN, TICN, TICN Plus, MOVIC).
  • Work chute.
  • Stainless steel table with ball bearing support.

YouTube video



Technical Specifications

Item Unit MAX-SF-30T
Punching Capacity Ton 30
X Traverse Length mm 2490±10
Y Traverse Length mm 1250±10
Max sheet Size mm 1250×4980
Max sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed M/min. 80
Y Axis Traverse Speed M/min. 70
Max Traverse Speed M/min. 105
Punching Speed at 25mm pitch hits/min. 360
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 650
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 34
Number of Auto Index Stations pcs(type) 2(B)
Turret Rotating Speed rpm 33
Auto Index Rotating Speed rpm 100
Ram Stroke Distance mm 0-31
Working Table Brush+Supporting Ball Set
Number of Sheet Clamps pcs 3
Power Supply KVA 24
Air Supply NL/min 250
Air Pressure bar 6
Size of Control Cabinet mm 1200 × 600 × 1900
Number of Controllable Axis Axis 4
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
Machine Dimension (L × W × H) mm 4687 × 5102 × 2385
Net Weight (approx.) kgf 13000
